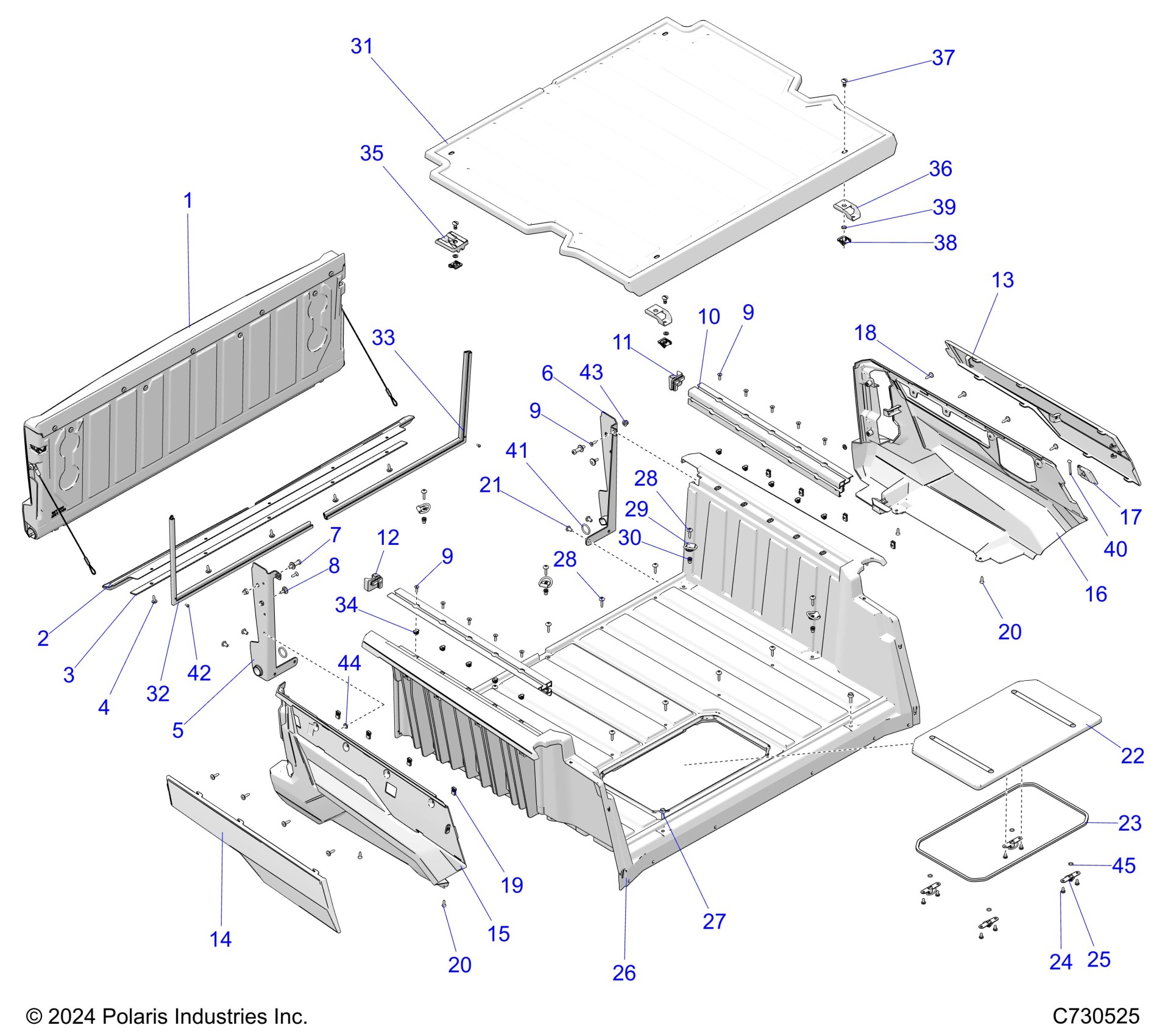

Polaris POLARIS XPEDITION ADV ULTIMATE (R01) - G24GVK99AF/AN/BF/BN BODY, BOX ASSEMBLY, REAR - G24GVK99A/99B (C730525) Diagram

#

Description
Price

1

ASM-TAILGATE,ADV [SEE BODY BOX, TAILGATE ASM.]

----

Unavailable

2

TRAY-DRIP,BLK

5274724-458

$119.99

3

SEAL,DRIP-TRAY

5526506

$11.41

4

SCR-M6X1X16 TR/TX-M

7518936

$3.97

5

WELD-TAILGATE SUPPORT,RH,BLK

1028844-458

$64.99

6

WELD-TAILGATE SUPPORT,LH,BLK

1028843-458

$64.99

7

PIN-STRIKER,M8

7663084

$9.99

8

SCR-TXTH-M6X1.0X20 ZPB SHDR

7520730

$4.76

9

SCR-M6X20MM,HXSOC FHCS,BG

7528307

$0.79

9

SCR-M6X20MM,HXSOC FHCS,BG

7528307

$0.79

9

SCR-M6X20MM,HXSOC FHCS,BG

7528307

$0.79

10

RAIL-BOX,MACH

5144443

$164.99

11

BUMPER-BOX,TAILGATE,LH

5418788

$4.76

12

BUMPER-BOX,TAILGATE,RH

5418789

$4.76

13

PANEL-BOX,TRIM,LH,PNT,M O.RUST [MATTE ORANGE RUST]

5465129-808

$229.99

13

PANEL-BOX,TRIM,LH,PNT,ZEN BLUE [ZENITH BLUE]

5465129-849

$219.99

14

PANEL-BOX,TRIM,RH,PNT,M O.RUST [MATTE ORANGE RUST]

5465130-808

$249.99

14

PANEL-BOX,TRIM,RH,PNT,ZEN BLUE [ZENITH BLUE]

5465130-849

$229.99

15

ASM-PANEL,BOX,OUTER,RH,BLK [TO 4/24/2024]

2639384-070

$198.48

15

ASM-PANEL,BOX,OUTER,RH,BLK [FROM 4/24/2024]

2639949-070

$198.48

16

ASM-PANEL,BOX,OUTER,LH,BLK [TO 4/24/2024]

2639383-070

$198.48

16

ASM-PANEL,BOX,OUTER,LH,BLK [FROM 4/24/2024]

2639948-070

$198.48

17

PANEL-BOX,LATCH,LH,BLK

5457251-070

$7.27

18

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

19

CLIP-U SPEED NUT

7081305

$1.98

20

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

20

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

21

SCR-TXTH-M8X1.25X15 8.8 ZODP30

7520311

$3.99

22

ASM-CARGO BOX,ACCESS [INCLUDES 23-25 & 45]

2639589

$334.99

23

SEAL-ACCESS BOX,ADV

5815733

$67.46

24

SCR-TXPH-1/4X1/2 ZBK SPC

7521141

$3.97

25

LATCH-SPIRAL SLOT-MEDIUM

7083014

$14.56

26

K-ASM,BOX,CARGO,XPED,ADV [INCLUDES WARNING DECALS]

2212038

$1,549.99

27

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.99

28

SCR-TXTH-M6X1.0X30 T40 ZPB

7520748

$3.97

28

SCR-TXTH-M6X1.0X30 T40 ZPB

7520748

$3.97

29

RING,TIEDOWN 700087

7081195

$11.32

30

NUT-RIVNUT,HEX,M6X1.00

7547790

$3.17

31

RUBBER-BED,MAT [TO 7/28/2025]

5418421

$204.99

31

RUBBER-BED,MAT [FROM 7/28/2025]

5419230

Unavailable

32

SEAL-TAILGATE,RH

5526502

$99.99

33

SEAL-TAILGATE,LH

5526501

$99.99

34

NUT-PAL NUT,M6

7548058

$3.97

35

BRKT-BED,MAT,REAR

5465388

$8.89

36

BRKT-BED,MAT,FRONT

5465389

$8.89

37

STUD-1/4 TURN,8MM

7663091

$3.97

38

CLIP-1/4 TURN,8MM

7718451

$3.97

39

CLIP-RETAINER,1/4 TURN,8MM

7718452

$14.99

40

PIN-HINGE,DIN BOX

5451236

$8.99

41

O-RING,28.17X3.53,VITON,60A

5418014

$4.84

42

SCR-#8-32X.375",TORX,TRI-S

7518256

$2.38

43

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.38

44

WSHR-FLAT-M8X1.6 ZTB

7557234

$2.38

45

O-RING,.426X.566X.070

5418545

$0.79
