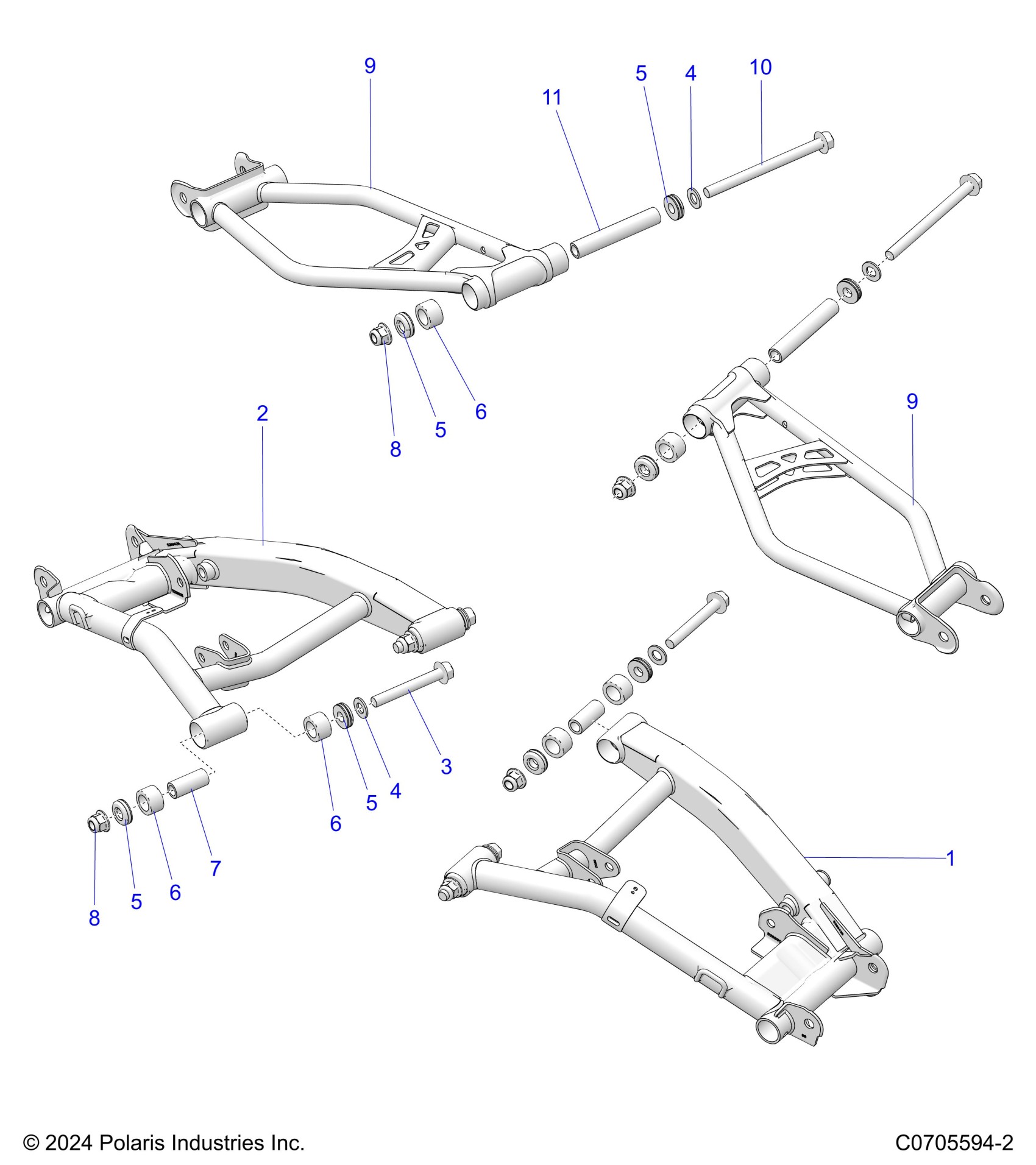

Polaris POLARIS XPEDITION ADV NORTHSTAR (R01) - G26GVW99AS/AH/AJ/BS/BH/BJ SUSPENSION, REAR CONTROL ARMS Diagram

ASM-LCA,REAR,LH,LOADED,BLK [INCLUDES CTRL ARM & 5-7]

1544466-458

$239.99

WELD-CTRL ARM,RR,LWR,LH,64,BLK

1544385-458

$195.99

ASM-LCA,REAR,RH,LOADED,BLK [INCLUDES CTRL ARM & 5-7]

1544467-458

$239.99

WELD-CTRL ARM,RR,LWR,RH,64,BLK

1544386-458

$195.99

SCR-HXFL-M14X2.0X105 10.9 ZFB

7521335-105

$5.59

WSHR-FLAT-M14X2.5 ZTB

7557237

$2.39

WSHR-FLAT-M14X2.5 ZTB

7557237

$2.39

ASM-PIVOT CAP,SEALED,M14

1545132

$7.19

CAP-PIVOT SEAL,M14

5143011

$7.91

O-RING,2-215,RED

5418680

$2.39

ASM-PIVOT CAP,SEALED,M14

1545132

$7.19

CAP-PIVOT SEAL,M14

5143011

$7.91

O-RING,2-215,RED

5418680

$2.39

ASM-PIVOT CAP,SEALED,M14

1545132

$7.19

CAP-PIVOT SEAL,M14

5143011

$7.91

O-RING,2-215,RED

5418680

$2.39

ASM-PIVOT CAP,SEALED,M14

1545132

$7.19

CAP-PIVOT SEAL,M14

5143011

$7.91

O-RING,2-215,RED

5418680

$2.39

BUSHING-STANDARD,SUSP,M14

5456377

$3.73

BUSHING-STANDARD,SUSP,M14

5456377

$3.73

BUSHING-STANDARD,SUSP,M14

5456377

$3.73

SHAFT-PIVOT,SHORT,M14

5143010

$7.99

NUT-HXFL-M14X2.0 8 ZTB NYL

7548031

$3.19

NUT-HXFL-M14X2.0 8 ZTB NYL

7548031

$3.19

ASM-UCA,REAR,LOADED,BLK [INCLUDES CTRL ARM, 5,6,11]

1544465-458

$155.99

WELD-CTRL ARM,RR,UPR,BLK

1544383-458

$111.99

ASM-UCA,REAR,LOADED,BLK [INCLUDES CTRL ARM, 5,6,11]

1544465-458

$155.99

WELD-CTRL ARM,RR,UPR,BLK

1544383-458

$111.99

SCR-HXFL-M14X2.0X180 10.9 ZFB

7521335-180

$11.21

SHAFT-PIVOT,14MM,128MM

5143468

$39.99
