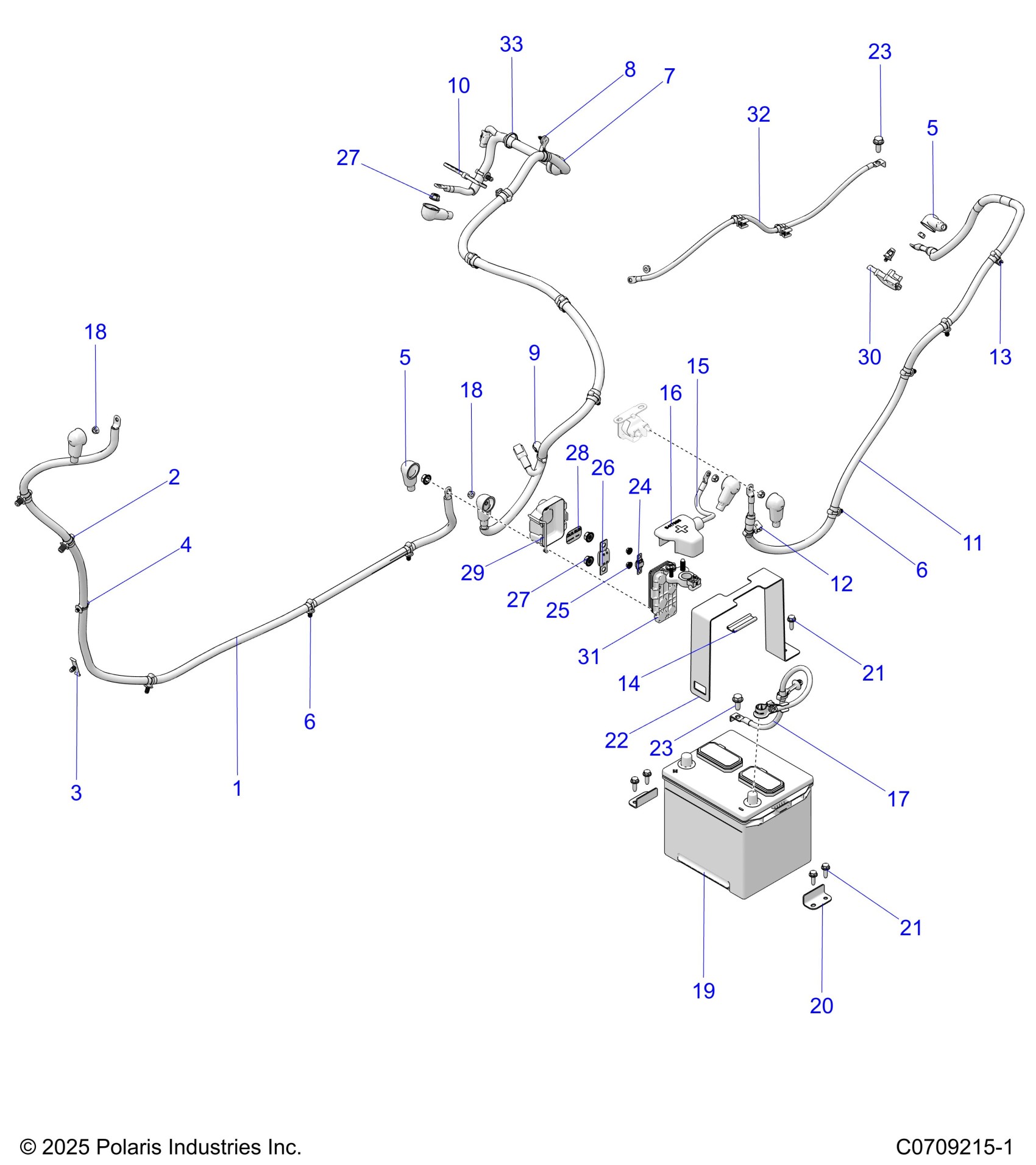

Polaris POLARIS XPEDITION ADV NORTHSTAR (R01) - G26GVW99AS/AH/AJ/BS/BH/BJ ELECTRICAL, BATTERY/CABLES Diagram

#

Description
Price

1

CABLE-PULSE [INCLUDES 2-6]

4019177

$159.75

2

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.97

3

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.22

5

BOOT, BATTERY, RED

4011723

$8.08

5

BOOT, BATTERY, RED

4011723

$8.08

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

7

CABLE-POWER,ALT,2P [INCLUDES 4, 6 & 8-10]

4081519

$208.16

8

XMAS, M6, OFFSET

7083004

$3.17

9

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

10

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

11

CABLE-POWER,STARTER,2P [INCLUDES 4-6, 12 & 13]

4081517

$121.02

12

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

13

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

14

STRAP-BATT,SPACER,RUBBER

5416083

$4.03

15

CABLE-POWER,BATT,START [INCLUDES 5 & 16]

4081518

$43.56

16

COVER-BATT,TERM,B+

5417986

$7.27

17

CABLE-GROUND,BATTERY

4081830

$62.92

18

NUT-HXFLGHD, M6, SERRATED

7547270

$3.97

18

NUT-HXFLGHD, M6, SERRATED

7547270

$3.97

19

BATTERY-575 CCA,FLOODED,FILLED

4014132

$166.65

19

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$190.48

20

BRKT-BATTERY,ECOAT

5272087-329

$12.99

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

22

STRAP-BATTERY,STD

5273478

$20.22

23

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.76

23

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.76

24

FUSE-MIDI,175A

4080524-175

$18.99

25

NUT-HXFL-M5X0.8 8 ZTC SPC

7548077

$13.99

26

FUSE-MEGA,225A

4080525-225

$49.99

27

NUT-HXFL-M8X1.25 8 ZPC SPC

7548084

$5.56

27

NUT-HXFL-M8X1.25 8 ZPC SPC

7548084

$5.56

28

LABEL-PDM,HVAC

7197273

$4.84

29

COVER-FUSEHOLDER

4080187

$13.99

30

BRKT-SPRT,CABLE,STRTR,35DG,BLK

5465099-070

$14.56

31

ASM-FUSEHOLDER,BATT,TERM

4080188

$114.99

32

CABLE-GROUND,ENGINE

4081552

$62.92

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
