- POLARIS XPEDITION ADV NORTHSTAR (R01) - G26GVW99AS/AH/AJ/BS/BH/BJ
ELECTRICAL, AUDIO

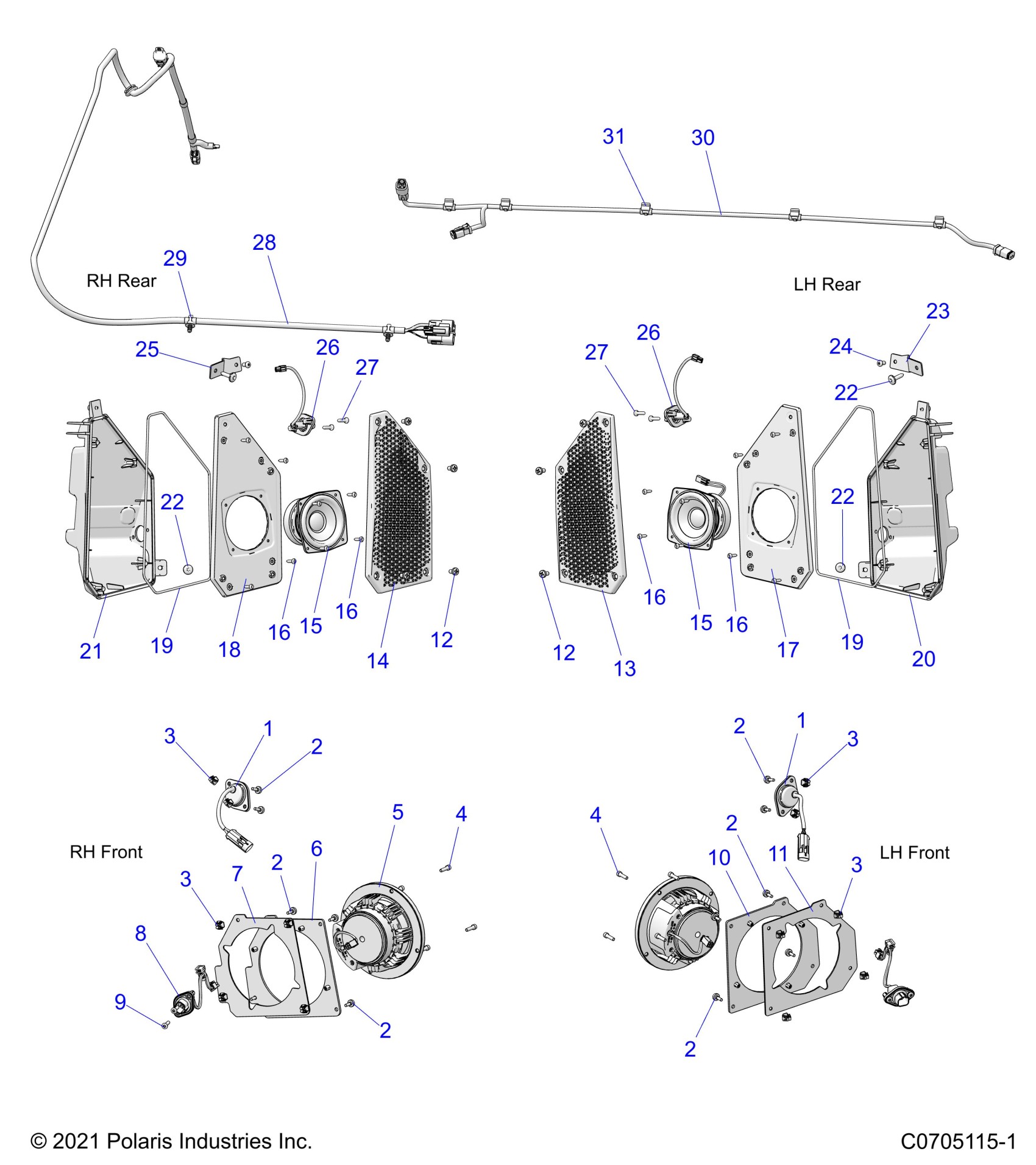

Polaris POLARIS XPEDITION ADV NORTHSTAR (R01) - G26GVW99AS/AH/AJ/BS/BH/BJ ELECTRICAL, AUDIO Diagram
#
-
ASM-SPKR,REAR,LH [INCLUDES 15-17,19,20,26,27]
2417081
$247.99
-
ASM-SPKR,REAR,RH [INCLUDES 15,16,18,19,21,26,27]
2417082
$247.99
1
ASM,TWTR,W/MOUNT,0.75",4OHM
2415718
$83.99
1
ASM,TWTR,W/MOUNT,0.75",4OHM
2415718
$83.99
2
SCREW-M4.2X1.40,12,HEX,BUTT,SHLD
7518518
$1.59
2
SCREW-M4.2X1.40,12,HEX,BUTT,SHLD
7518518
$1.59
2
SCREW-M4.2X1.40,12,HEX,BUTT,SHLD
7518518
$1.59
2
SCREW-M4.2X1.40,12,HEX,BUTT,SHLD
7518518
$1.59
2
SCREW-M4.2X1.40,12,HEX,BUTT,SHLD
7518518
$1.59
2
SCREW-M4.2X1.40,12,HEX,BUTT,SHLD
7518518
$1.59
3
NUT, PAL NUT, M4
7547324
$3.99
3
NUT, PAL NUT, M4
7547324
$3.99
3
NUT, PAL NUT, M4
7547324
$3.99
3
NUT, PAL NUT, M4
7547324
$3.99
4
SCR-SH-M5X0.8X20 8.8 ZB3
7520113
$3.19
4
SCR-SH-M5X0.8X20 8.8 ZB3
7520113
$3.19
5
ASM,WFR,MID,6.5",4OHM,W/XOVER
2415717
$315.99
6
ASM-BAFFLE,RH
2638606
$35.99
7
SEAL-SPEAKER PLATE,RH
5526373
Unavailable
8
HARN-ENCLOSURE,MIDWOOFER
2417080
$43.99
9
SCREW-10X5/8-HI/LO,PN-T25,TRX-M
7518238
$3.99
10
ASM-BAFFLE,LH
2638605
$31.99
11
SEAL-SPEAKER PLATE,LH
5526372
Unavailable
12
SCR-TXPH-#14 X .75 HI-LO RIE
7519731
$3.99
12
SCR-TXPH-#14 X .75 HI-LO RIE
7519731
$3.99
13
PANEL-GRILLE,SPKR,REAR,LH
5457804
$19.99
14
PANEL-GRILLE,SPKR,REAR,RH
5457805
$19.99
15
ASM,WFR,MID,4",4OHM,WO/XOVER
2415719
$147.99
15
ASM,WFR,MID,4",4OHM,WO/XOVER
2415719
$147.99
16
SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB
7518227
$3.99
16
SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB
7518227
$3.99
16
SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB
7518227
$3.99
16
SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB
7518227
$3.99
17
HOUSING-REAR ENCLSR,FACE,LH
5459271
$12.79
18
HOUSING-REAR ENCLSR,FACE,RH
5459272
$12.79
19
SEAL-SPEAKER VOLUME,798MM
5416508-798
$6.39
19
SEAL-SPEAKER VOLUME,798MM
5416508-798
$6.39
20
HOUSING-REAR ENCLSR,BACK,LH
5459273
$19.99
21
HOUSING-REAR ENCLSR,BACK,RH
5459274
$19.99
22
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
22
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
23
BRKT-POD MOUNT,LH,BLK
5273097-458
$35.99
24
SCR-TX TRUSS-#14X3/4, HI/LO ZBK
7519045
$3.19
25
BRKT-POD MOUNT,RH,BLK
5273098-458
$35.99
26
HARN-ENCLOSURE,REAR
2417079
$19.99
26
HARN-ENCLOSURE,REAR
2417079
$19.99
27
SCREW-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
$1.49
27
SCREW-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
$1.49
28
HARN-ROPS
2415538
$103.99
29
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
30
HARN-AUDIO,REAR
2415566
$47.99
31
CLIP-EDGE,1-3MM THICKNESS
7082400
$5.59
