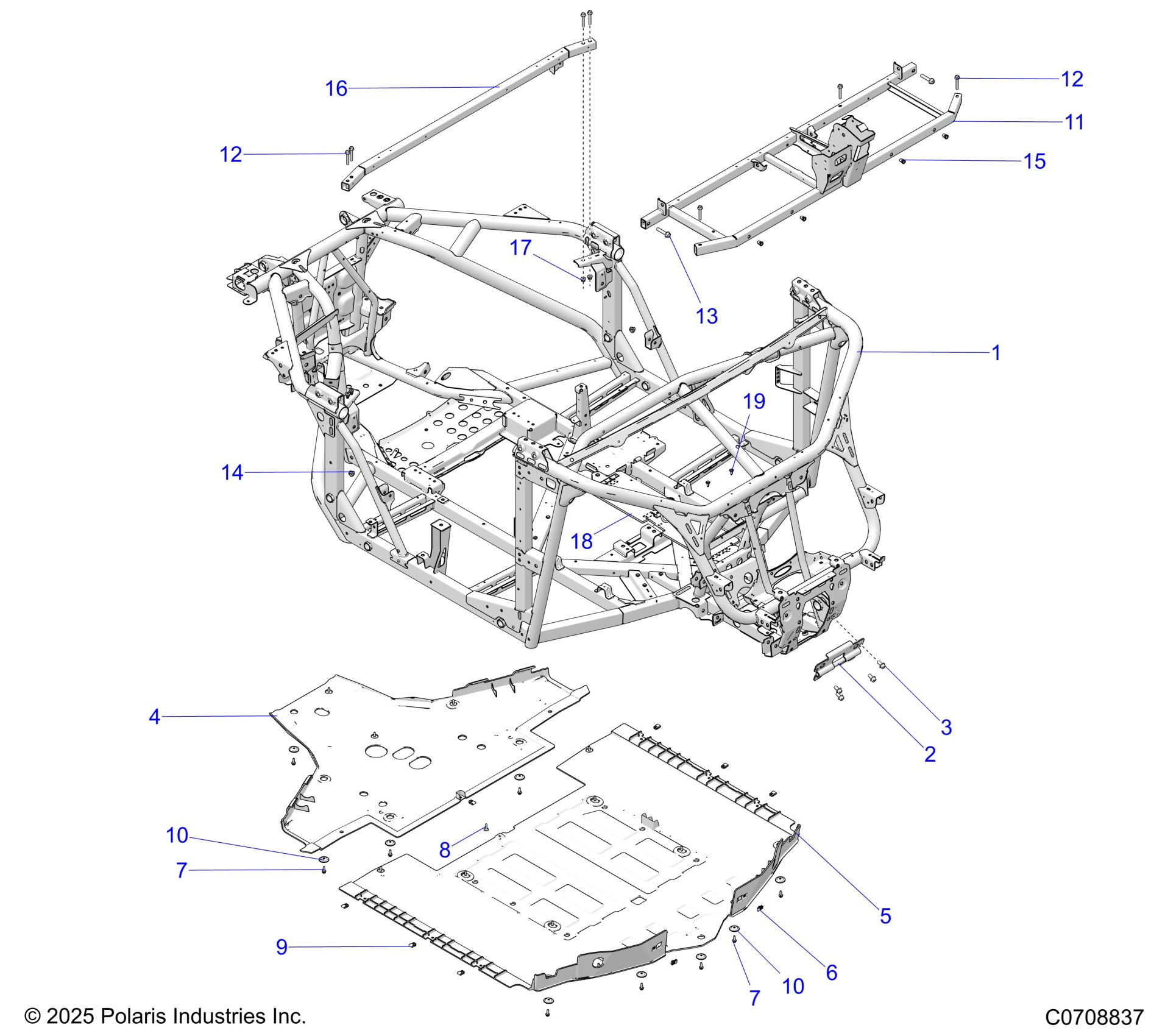

Polaris POLARIS XPEDITION ADV NORTHSTAR (R01) - G26GVW99AS/AH/AJ/BS/BH/BJ CHASSIS, MAIN FRAME AND SKID PLATES Diagram

K-FRAME,MAIN,FRAME,XPED

2212035

$3,735.59

WELD-COVER,TOW,BLK

1025545-458

$39.99

SCR-HXFL-M10X1.5X20 10.9 ZFB

7521333-20

$7.19

PLATE-SKID,REAR,BLK

5456840-070

$159.99

PLATE-SKID,FRONT,BLK

5466822-070

Unavailable

CLIP-U SPEED NUT

7081305

$1.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

WASHER-SKID PLATE

7556065

$4.79

WASHER-SKID PLATE

7556065

$4.79

WELD-SEAT BASE,FRONT,ECOAT

1029768-329

$239.99

SCR-HXFL-M8X1.25X50 10.9 ZFB

7521332-50

$1.59

SCR-HXFL-M8X1.25X50 10.9 ZFB

7521332-50

$1.59

SCR-HXFL-M10X1.5X50 10.9 ZFB

7521333-50

$3.73

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

NUT-RIVNUT,HEX,M8X1.25

7548098

$3.19

WELD-TUBE,CLOSEOFF,2P,ECOAT

1027561-329

$91.99

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

TRAY-ROUTING,LH,BLK

5457276-070

$27.99

RIVET-TUFLOK,.315-.325X.787

7661855

Unavailable
