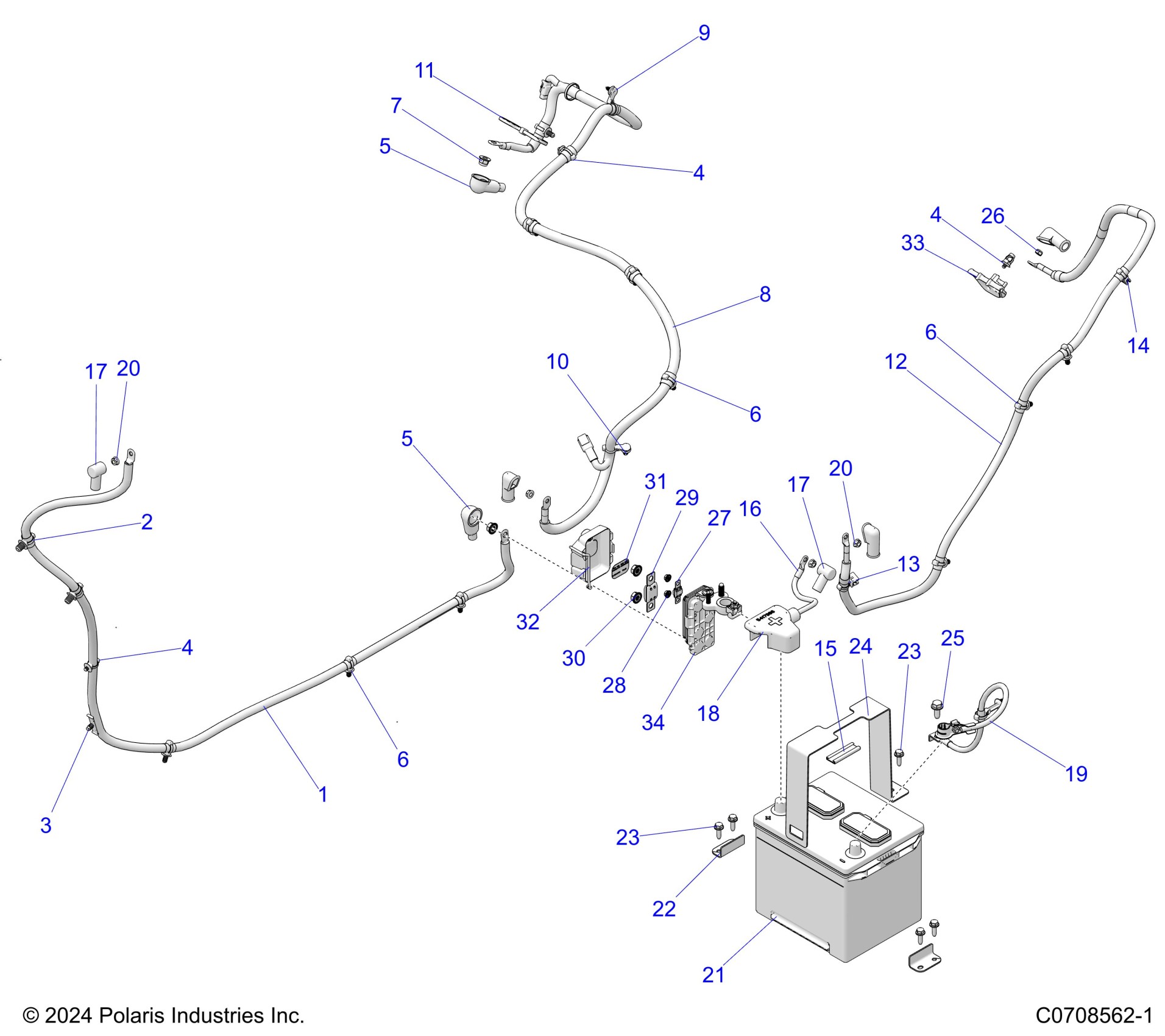

Polaris POLARIS XPEDITION ADV NORTHSTAR (R01) - G25GVW99AB/AP/AK/BB/BP/BK ELECTRICAL, BATTERY/CABLES Diagram

#

Description
Price

1

CABLE-PULSE [INCLUDES 2-7]

4019177

$131.99

2

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.99

3

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

5

BOOT, BATTERY, RED

4011723

$7.99

5

BOOT, BATTERY, RED

4011723

$7.99

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

8

CABLE-POWER,ALT,2P [INCLUDES 4, 6 & 9-11]

4081519

$171.99

9

XMAS, M6, OFFSET

7083004

$3.19

10

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

12

CABLE-POWER,STARTER,2P [INCLUDES 5-7, 13 & 14]

4081517

$99.99

13

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

14

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

15

STRAP-BATT,SPACER,RUBBER

5416083

$3.99

16

CABLE-POWER,BATT,START [INCLUDES 17 & 18]

4081518

$35.99

17

CAP-CABLE, RED

5418245

$5.59

17

CAP-CABLE, RED

5418245

$5.59

18

COVER-BATT,TERM,B+

5417986

$6.39

19

CABLE-GROUND,BATTERY

4081830

$51.99

20

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

20

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

21

BATTERY-575 CCA,FLOODED,FILLED

4014132

Unavailable

21

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$183.99

22

BRKT-BATTERY,ECOAT

5272087-329

$10.39

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

STRAP-BATTERY,STD

5273478

$19.99

25

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.79

26

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

27

FUSE-MIDI,175A

4080524-175

$14.39

28

NUT-HXFL-M5X0.8 8 ZTC SPC

7548077

$12.31

29

FUSE-MEGA,225A

4080525-225

$35.99

30

NUT-HXFL-M8X1.25 8 ZPC SPC

7548084

$5.59

31

LABEL-PDM,HVAC

7197273

$3.99

32

COVER-FUSEHOLDER

4080187

$10.39

33

BRKT-SPRT,CABLE,STRTR,35DG,BLK

5465099-070

$14.39

34

ASM-FUSEHOLDER,BATT,TERM

4080188

$87.99
