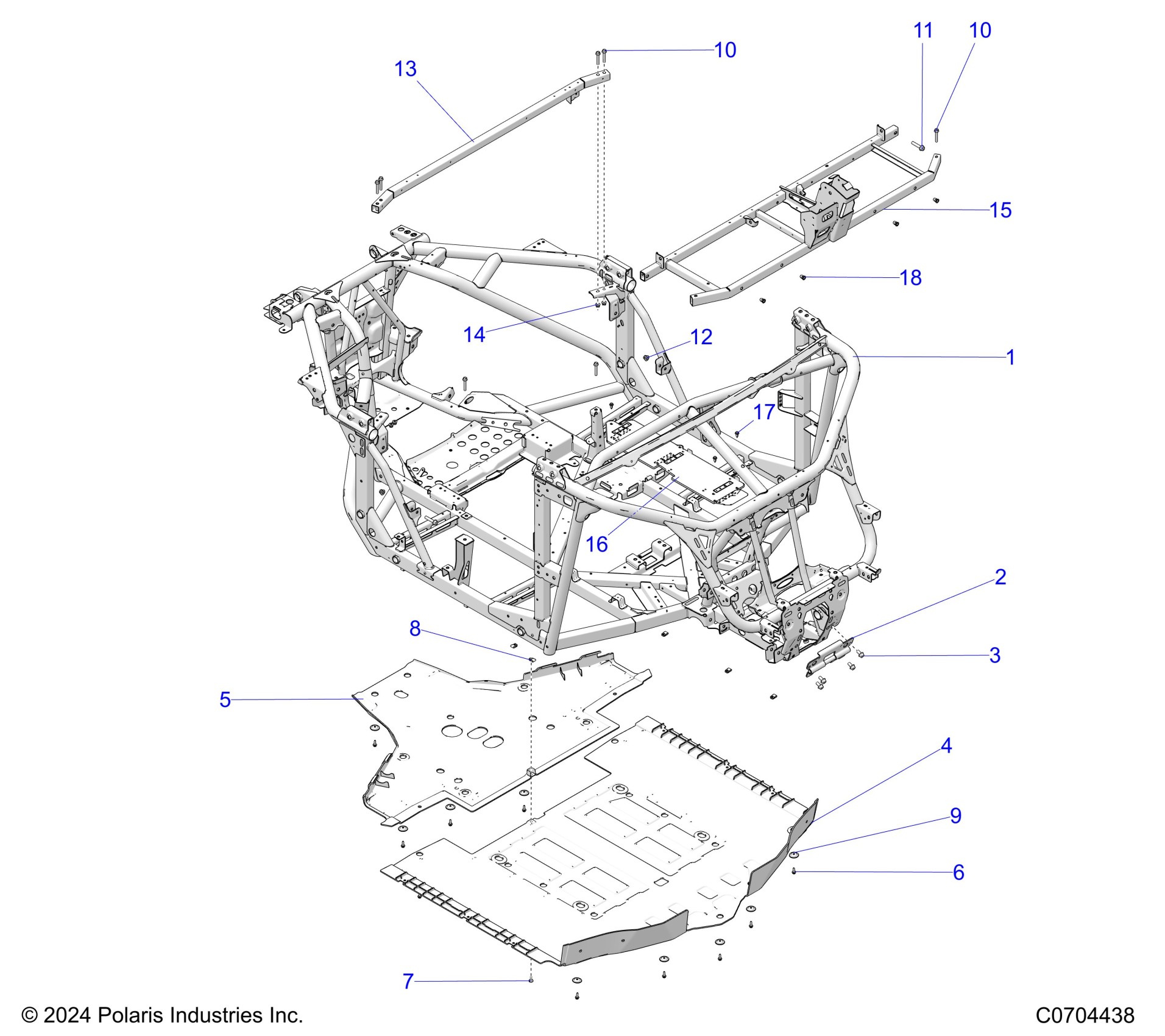

Polaris POLARIS XPEDITION ADV NORTHSTAR (R01) - G25GVW99AB/AP/AK/BB/BP/BK CHASSIS, MAIN FRAME AND SKID PLATES Diagram

K-FRAME,MAIN,FRAME,XPED

2212035

$4,499.99

WELD-COVER,TOW,BLK

1025545-458

$49.99

SCR-HXFL-M10X1.5X20 10.9 ZFB

7521333-20

$7.14

PLATE-SKID,FRONT,BLK

5456837-070

$317.46

PLATE-SKID,REAR,BLK

5456840-070

$166.67

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.19

WASHER-SKID PLATE

7556065

$4.76

SCR-HXFL-M8X1.25X50 10.9 ZFB

7521332-50

$1.59

SCR-HXFL-M8X1.25X50 10.9 ZFB

7521332-50

$1.59

SCR-HXFL-M10X1.5X50 10.9 ZFB

7521333-50

$3.99

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.38

WELD-TUBE,CLOSEOFF,2P,ECOAT

1027561-329

$116.17

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.38

WELD-SEAT BASE,FRONT,ECOAT

1029768-329

$314.99

TRAY-ROUTING,LH,BLK

5457276-070

$39.99

RIVET-TUFLOK,.315-.325X.787

7661855

Unavailable

NUT-RIVNUT,HEX,M8X1.25

7548098

$3.17
