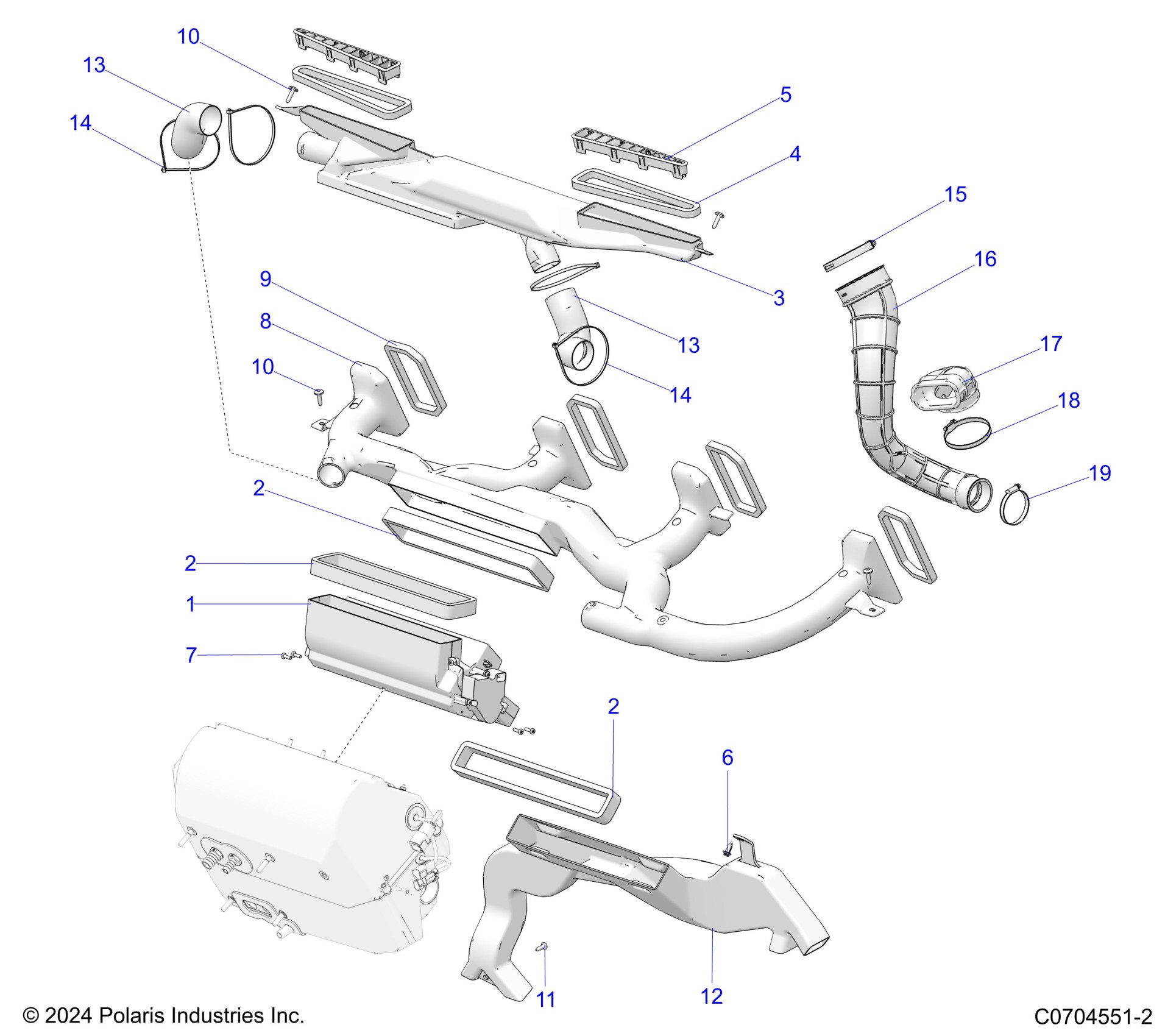

Polaris POLARIS XPEDITION ADV NORTHSTAR (R01) - G25GVW99AB/AP/AK/BB/BP/BK BODY, HVAC DUCTING Diagram

#

Description
Price

1

ASM-MODE CONTROL [SEE BODY, HVAC ASM-MODE CONTROL INTERNALS]

1241456

$263.99

2

GASKET-DUCT

5815649

Unavailable

2

GASKET-DUCT

5815649

Unavailable

2

GASKET-DUCT

5815649

Unavailable

3

DUCT-AIR,DEFROST

5457004

$91.99

4

GASKET-DASH,DEFROST

5815161

Unavailable

5

VENT-DEFROST

5465247

$35.99

6

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

7

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

8

DUCT-AIR,PANEL

5457005

$107.99

9

GASKET-PANEL,DASH

5815160

Unavailable

10

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

10

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

11

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

12

DUCT-AIR,FLOOR

5457006

$83.99

13

DUCT-JUMPER,FLEX

5417641

$63.99

13

DUCT-JUMPER,FLEX

5417641

$63.99

14

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

14

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

15

CLAMP-HOSE SLOTTED,84-96 DIA

7082805

$5.59

16

DUCT-ALTERNATOR,INLET

5417567

$111.99

17

DUCT-ALTERNATOR,AIR OUTLET

5417845

$31.99

18

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

19

CLAMP-NARROW BAND, 1.38/2.38

7080511

$4.79
