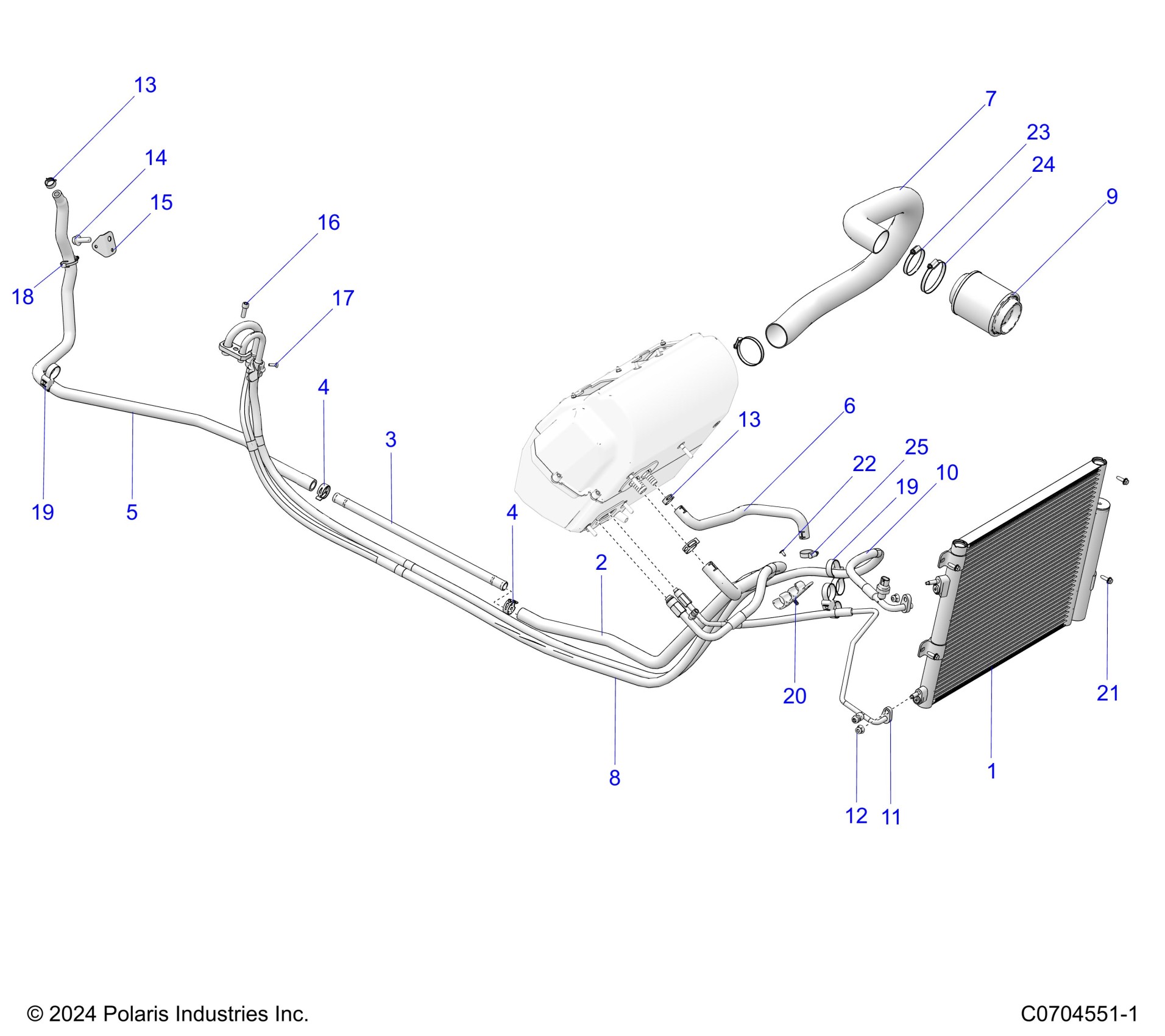

Polaris POLARIS XPEDITION ADV NORTHSTAR (R01) - G25GVW99AB/AP/AK/BB/BP/BK BODY, HVAC CONDENSER AND HOSES Diagram

#

Description
Price

1

CONDENSER-HVAC

1244801

$813.99

2

ASM-HOSE,HEATER [INCLUDES 2, 3 & QTY 1 OF 4]

1241453

$115.99

2

HOSE-HEATER FRONT

5417311

$39.99

3

TUBE-HVAC,COOLANT,2P

5342561

$87.99

4

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

4

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

5

HOSE-HEATER REAR

5417312

$91.99

6

HOSE-HEATER RETURN

5417313

$13.59

7

HOSE-FRESH AIR

5417314

$13.59

8

HOSE-ASM,A/C #10 [INCLUDES SEAL]

5417315

$243.99

8

SEAL-WASHER,#10

3610362

$3.19

9

ASM-FILTER,AIR BOX

1262218

$23.99

10

HOSE-ASM,A/C #8 [INCLUDES SEAL]

5417317

$247.99

10

SEAL-WASHER,#8

3610361

$3.99

11

HOSE-ASM,A/C #6 HVAC

5418609

$131.99

12

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

13

CLAMP-HOSE,SPRING .81

7081026

$7.99

13

CLAMP-HOSE,SPRING .81

7081026

$7.99

14

SCR-HXFL-M10X1.5X30 10.9 ZFB

7521333-30

$2.39

15

BRACKET-HEATER HOSE,ECOAT

5272002-329

$12.79

16

SCREW-SH-M8X1.25X25 8.8 ZPC

7519859

$5.59

17

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

19

CABLE-TIE,DIA14-45MM,DUAL-LOOP

7081807

$7.99

19

CABLE-TIE,DIA14-45MM,DUAL-LOOP

7081807

$7.99

20

CLIP-ROUTING,HVAC

5458511

$3.99

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

22

RIVET-POP 5/32(.188-.250)-LF-B

7662408

$1.49

23

CLAMP-NARROW BAND, 1.38/2.38

7080511

$4.79

24

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

25

CLAMP-CONSTANT TENSION,16-27

7081415

$7.19
