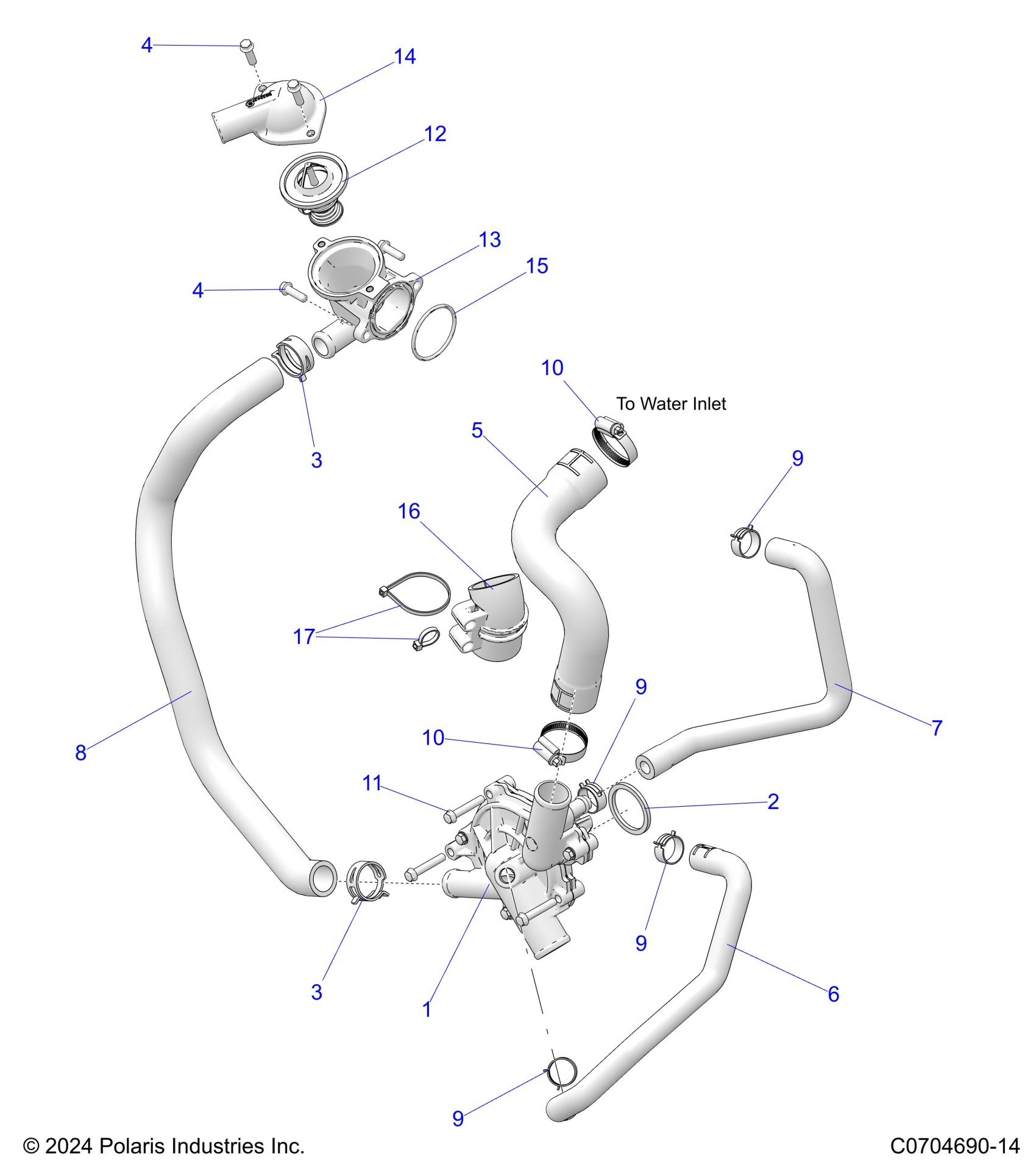

Polaris POLARIS XPEDITION ADV 5 ULTIMATE (R01) - G24GZK99AF/AN/BF/BN ENGINE, WATERPUMP AND BYPASS Diagram

#

Description
Price

1

ASM, WATERPUMP [FOR INTERNAL PARTS SEE ENGINE, WATERPUMP ASSEMBLY]

1205014

$215.59

2

FILTER-WP

5814207

$2.39

3

CLAMP, SPRINGBAND

7081970

$5.59

3

CLAMP, SPRINGBAND

7081970

$5.59

4

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

4

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

5

HOSE-WATERPUMP,OUT

5416305

$59.99

6

HOSE-OIL COOLER OUT

5416752

$27.99

7

HOSE, OIL COOLER IN

5416307

$14.39

8

HOSE, BYPASS

5416629

$35.99

9

CLAMP-HOSE,SPRING .81

7081026

$7.99

9

CLAMP-HOSE,SPRING .81

7081026

$7.99

9

CLAMP-HOSE,SPRING .81

7081026

$7.99

9

CLAMP-HOSE,SPRING .81

7081026

$7.99

10

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

10

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

11

SCR-HXFL-M6X1.0X35, W/PATCHLOK

7519280

$4.79

12

THERMOSTAT, DOUBLE, ACTING, 1MM

7052600

$43.99

13

HOUSING-THERMOSTAT

5143094

$35.99

14

COVER, THERMOSTAT, CAST

5632421

$35.99

15

O-RING

5414591

$3.22

16

SUPPORT-STATOR WIRE

5417378

$114.39

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
