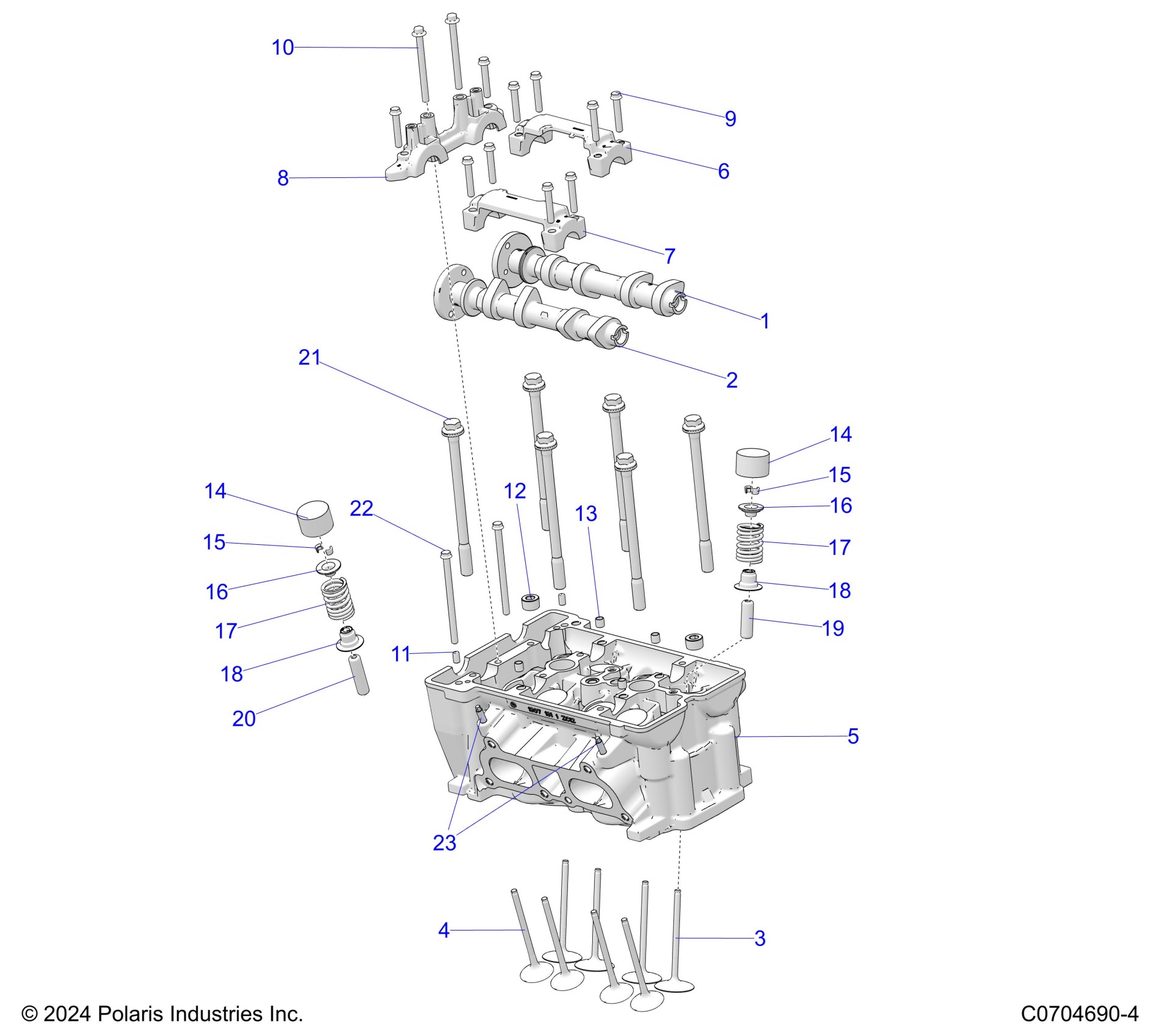

Polaris POLARIS XPEDITION ADV 5 ULTIMATE (R01) - G24GZK99AF/AN/BF/BN ENGINE, CYLINDER HEAD AND VALVES Diagram

#

Description
Price

-

ASM-HEAD,COMPLETE [INCLUDES 1-20]

1206145

Unavailable

1

CAMSHAFT-INT

3023686

$383.99

2

CAMSHAFT-EXH

3023687

$383.99

3

VALVE-INTAKE,STEEL,G-90

3022134

$48.56

4

VALVE, EXHAUST, INCONEL

3022883

$63.99

5

ASM-CYLINDER,HEAD [INCLUDES 6-13]

3023665

$901.99

6

CAP-CAM,MACH,INT [INCLUDED IN CYLINDER HEAD ASM.]

-------

Unavailable

7

CAP-CAM,MACH,EXH [INCLUDED IN CYLINDER HEAD ASM.]

-------

Unavailable

8

CAP-CAM,MACH,FRONT [INCLUDED IN CYLINDER HEAD ASM.]

-------

Unavailable

9

SCR-HXFL-M6X1.0X35 10.9 ZY3

7520689

$9.51

10

SCR-HXFL M6X1.0X70 B18.2.3.4M

7520688

$10.39

11

PIN-DOWEL,M6X10

5137624

$7.19

12

PLUG-PIPE,M16,DIN

7520284

$23.99

13

DWL-HOL,M8X8

7662355

$10.39

14

TAPPET, VALVE, GRADED, 4.400

5138477-440

Unavailable

14

TAPPET, VALVE, GRADED, 4.425

5138477-442

Unavailable

14

TAPPET, VALVE, GRADED, 4.450

5138477-445

Unavailable

14

TAPPET, VALVE, GRADED, 4.475

5138477-448

Unavailable

14

TAPPET, VALVE, GRADED, 4.500

5138477-450

Unavailable

14

TAPPET, VALVE, GRADED, 4.525

5138477-452

Unavailable

14

TAPPET, VALVE, GRADED, 4.550

5138477-455

Unavailable

14

TAPPET, VALVE, GRADED, 4.575

5138477-458

Unavailable

14

TAPPET, VALVE, GRADED, 4.600

5138477-460

Unavailable

14

TAPPET, VALVE, GRADED, 4.625

5138477-462

Unavailable

14

TAPPET, VALVE, GRADED, 4.650

5138477-465

Unavailable

14

TAPPET, VALVE, GRADED, 4.675

5138477-468

Unavailable

14

TAPPET, VALVE, GRADED, 4.700

5138477-470

Unavailable

14

TAPPET, VALVE, GRADED, 4.725

5138477-472

Unavailable

14

TAPPET, VALVE, GRADED, 4.750

5138477-475

Unavailable

14

TAPPET, VALVE, GRADED, 4.775

5138477-478

Unavailable

14

TAPPET, VALVE, GRADED, 4.800

5138477-480

Unavailable

14

TAPPET, VALVE, GRADED, 4.825

5138477-482

Unavailable

14

TAPPET, VALVE, GRADED, 4.850

5138477-485

Unavailable

14

TAPPET, VALVE, GRADED, 4.875

5138477-488

Unavailable

14

TAPPET, VALVE, GRADED, 4.900

5138477-490

Unavailable

14

TAPPET, VALVE, GRADED, 4.925

5138477-492

Unavailable

14

TAPPET, VALVE, GRADED, 4.950

5138477-495

Unavailable

14

TAPPET, VALVE, GRADED, 4.975

5138477-498

Unavailable

14

TAPPET, VALVE, GRADED, 5.000

5138477-500

Unavailable

14

TAPPET, VALVE, GRADED, 5.025

5138477-502

Unavailable

14

TAPPET, VALVE, GRADED, 5.050

5138477-505

Unavailable

14

TAPPET, VALVE, GRADED, 5.075

5138477-508

Unavailable

14

TAPPET, VALVE, GRADED, 5.100

5138477-510

Unavailable

14

TAPPET, VALVE, GRADED, 5.125

5138477-512

Unavailable

14

TAPPET, VALVE, GRADED, 5.150

5138477-515

Unavailable

14

TAPPET, VALVE, GRADED, 5.175

5138477-518

Unavailable

14

TAPPET, VALVE, GRADED, 5.200

5138477-520

Unavailable

14

TAPPET, VALVE, GRADED, 5.225

5138477-522

Unavailable

14

TAPPET, VALVE, GRADED, 5.250

5138477-525

Unavailable

14

TAPPET, VALVE, GRADED, 5.275

5138477-528

Unavailable

14

TAPPET, VALVE, GRADED, 5.300

5138477-530

Unavailable

14

TAPPET, VALVE, GRADED, 5.325

5138477-532

Unavailable

14

TAPPET, VALVE, GRADED, 5.350

5138477-535

Unavailable

14

TAPPET, VALVE, GRADED, 5.375

5138477-538

Unavailable

14

TAPPET, VALVE, GRADED, 5.400

5138477-540

Unavailable

14

TAPPET, VALVE, GRADED, 5.425

5138477-542

Unavailable

14

TAPPET, VALVE, GRADED, 5.450

5138477-545

Unavailable

14

TAPPET, VALVE, GRADED, 4.400

5138477-440

Unavailable

14

TAPPET, VALVE, GRADED, 4.425

5138477-442

Unavailable

14

TAPPET, VALVE, GRADED, 4.450

5138477-445

Unavailable

14

TAPPET, VALVE, GRADED, 4.475

5138477-448

Unavailable

14

TAPPET, VALVE, GRADED, 4.500

5138477-450

Unavailable

14

TAPPET, VALVE, GRADED, 4.525

5138477-452

Unavailable

14

TAPPET, VALVE, GRADED, 4.550

5138477-455

Unavailable

14

TAPPET, VALVE, GRADED, 4.575

5138477-458

Unavailable

14

TAPPET, VALVE, GRADED, 4.600

5138477-460

Unavailable

14

TAPPET, VALVE, GRADED, 4.625

5138477-462

Unavailable

14

TAPPET, VALVE, GRADED, 4.650

5138477-465

Unavailable

14

TAPPET, VALVE, GRADED, 4.675

5138477-468

Unavailable

14

TAPPET, VALVE, GRADED, 4.700

5138477-470

Unavailable

14

TAPPET, VALVE, GRADED, 4.725

5138477-472

Unavailable

14

TAPPET, VALVE, GRADED, 4.750

5138477-475

Unavailable

14

TAPPET, VALVE, GRADED, 4.775

5138477-478

Unavailable

14

TAPPET, VALVE, GRADED, 4.800

5138477-480

Unavailable

14

TAPPET, VALVE, GRADED, 4.825

5138477-482

Unavailable

14

TAPPET, VALVE, GRADED, 4.850

5138477-485

Unavailable

14

TAPPET, VALVE, GRADED, 4.875

5138477-488

Unavailable

14

TAPPET, VALVE, GRADED, 4.900

5138477-490

Unavailable

14

TAPPET, VALVE, GRADED, 4.925

5138477-492

Unavailable

14

TAPPET, VALVE, GRADED, 4.950

5138477-495

Unavailable

14

TAPPET, VALVE, GRADED, 4.975

5138477-498

Unavailable

14

TAPPET, VALVE, GRADED, 5.000

5138477-500

Unavailable

14

TAPPET, VALVE, GRADED, 5.025

5138477-502

Unavailable

14

TAPPET, VALVE, GRADED, 5.050

5138477-505

Unavailable

14

TAPPET, VALVE, GRADED, 5.075

5138477-508

Unavailable

14

TAPPET, VALVE, GRADED, 5.100

5138477-510

Unavailable

14

TAPPET, VALVE, GRADED, 5.125

5138477-512

Unavailable

14

TAPPET, VALVE, GRADED, 5.150

5138477-515

Unavailable

14

TAPPET, VALVE, GRADED, 5.175

5138477-518

Unavailable

14

TAPPET, VALVE, GRADED, 5.200

5138477-520

Unavailable

14

TAPPET, VALVE, GRADED, 5.225

5138477-522

Unavailable

14

TAPPET, VALVE, GRADED, 5.250

5138477-525

Unavailable

14

TAPPET, VALVE, GRADED, 5.275

5138477-528

Unavailable

14

TAPPET, VALVE, GRADED, 5.300

5138477-530

Unavailable

14

TAPPET, VALVE, GRADED, 5.325

5138477-532

Unavailable

14

TAPPET, VALVE, GRADED, 5.350

5138477-535

Unavailable

14

TAPPET, VALVE, GRADED, 5.375

5138477-538

Unavailable

14

TAPPET, VALVE, GRADED, 5.400

5138477-540

Unavailable

14

TAPPET, VALVE, GRADED, 5.425

5138477-542

Unavailable

14

TAPPET, VALVE, GRADED, 5.450

5138477-545

Unavailable

15

KEEPER-VALVE

7081470

$4.03

15

KEEPER-VALVE

7081470

$4.03

16

RETAINER,VALVE

5138435

$20.22

16

RETAINER,VALVE

5138435

$20.22

17

SPRING-VALVE

7045876

$8.48

17

SPRING-VALVE

7045876

$8.48

18

SEAT-W/SEAL,VALVE SPRING

3610212

$12.94

18

SEAT-W/SEAL,VALVE SPRING

3610212

$12.94

19

GUIDE-VALVE,PMF10,36MM

-------

Unavailable

20

GUIDE-VALVE,EXHAUST

-------

Unavailable

21

SCR-HXFL,M11X1.25X150 10.9 SEM

7520978

$23.99

22

SCR-HXFLG,M6X1.0X90

7519153

$5.59

23

STUD-M6X1.0X32.5 8.8

7528123

$3.19
