Description

Price

1

SHROUD-RADIATOR

5456827

$39.99

2

ASM-RADIATOR,CORE

1244681

$432.89

3

FAN-RADIATOR,ASM

2416113

$239.99

4

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

5

BOLT, M6X15MM

7519585

$9.59

6

BRKT-RADIATOR MOUNT,ECOAT

5273084-329

$35.99

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

SPRINGBAND-CLAMP,BLK

7082308

$5.59

8

SPRINGBAND-CLAMP,BLK

7082308

$5.59

8

SPRINGBAND-CLAMP,BLK

7082308

$5.59

9

HOSE-UPPER,RADIATOR

5417279

$43.99

10

GROMMET-ROUTING

5418786

$23.99

11

SCR-M6X1X16 TR/TX-M

7518936

$3.99

12

BRKT-ROUTING GROMMET,BLK

5269611-329

$10.55

13

HOSE-LWR,RAD,LONG

5417281

$43.99

14

HOSE CLAMP, RED

7080003

$1.49

15

ASM-VENT LINE,MP

2522428

$39.99

16

TUBE-COOLANT,1" MP

5143304

$67.99

17

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

18

HOSE-ENG INLET,FRT

5417321

$23.99

19

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.39

20

HOSE-ENG INLET,REAR

5417283

$23.99

21

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

21

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

22

HOSE-ENGINE OUTLET

5418807

$39.99

23

HOSE-SPLICE TO TEE

5418141

$27.99

24

CLIP-ROUTING,COOLANT-VENT

5458510

$3.99

25

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

26

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

27

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

28

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

29

CONNECTOR-1" SPLICE,BARBED

7055611

$3.99

30

HOSE-BOTTLE TO SPLICE,ADV

5418142

$31.99

31

BRKT-COOLANT BOTTLE,BLK

5269295-329

$27.99

32

SCREW-HXFL-M6X1.0X16 8.8 ZY3

7518548

$1.59

33

CAP-PRESSURE

1241379

$35.99

34

ASM-TANK,SURGE

1244655

$91.99

35

ASM-COOLANT HOSE,VENTED [INCLUDES 35 & 36]

1244796

$51.99

35

HOSE-COOLANT,FITTING TO SPLICE

5417981

$19.99

36

HOSE-COOLANT,FITTING TO SPLICE

5418542

$11.99

37

TRAY-ROUTING,FRONT,BLK

5465649-070

$27.99

38

TRAY-ROUTING,RH,BLK

5465540-070

$19.99

39

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

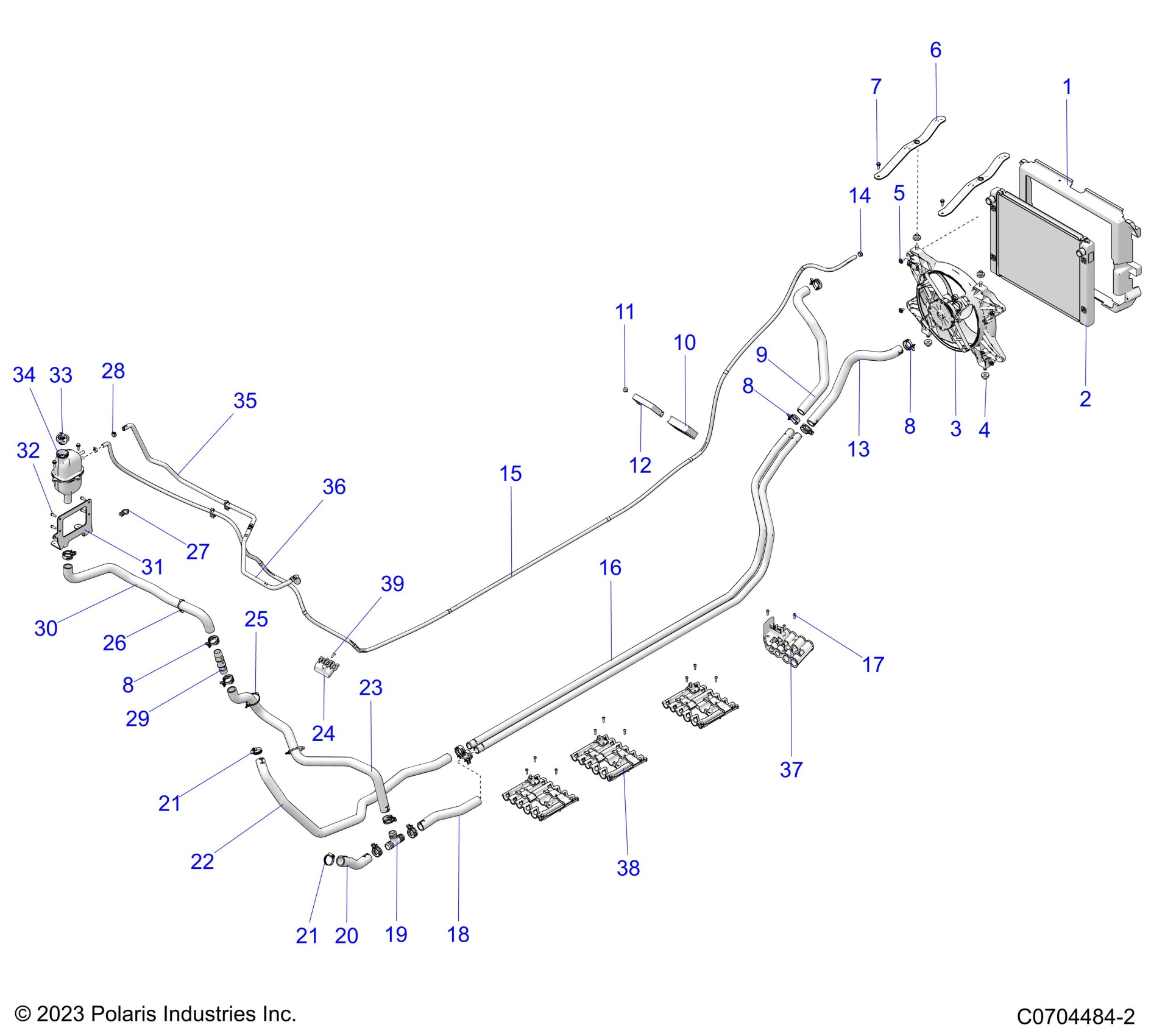

Polaris POLARIS XPEDITION ADV 5 ULTIMATE (R01) - G24GZK99AF/AN/BF/BN ENGINE, COOLING - G24GZK99A/99B (C0704484-2) Diagram
