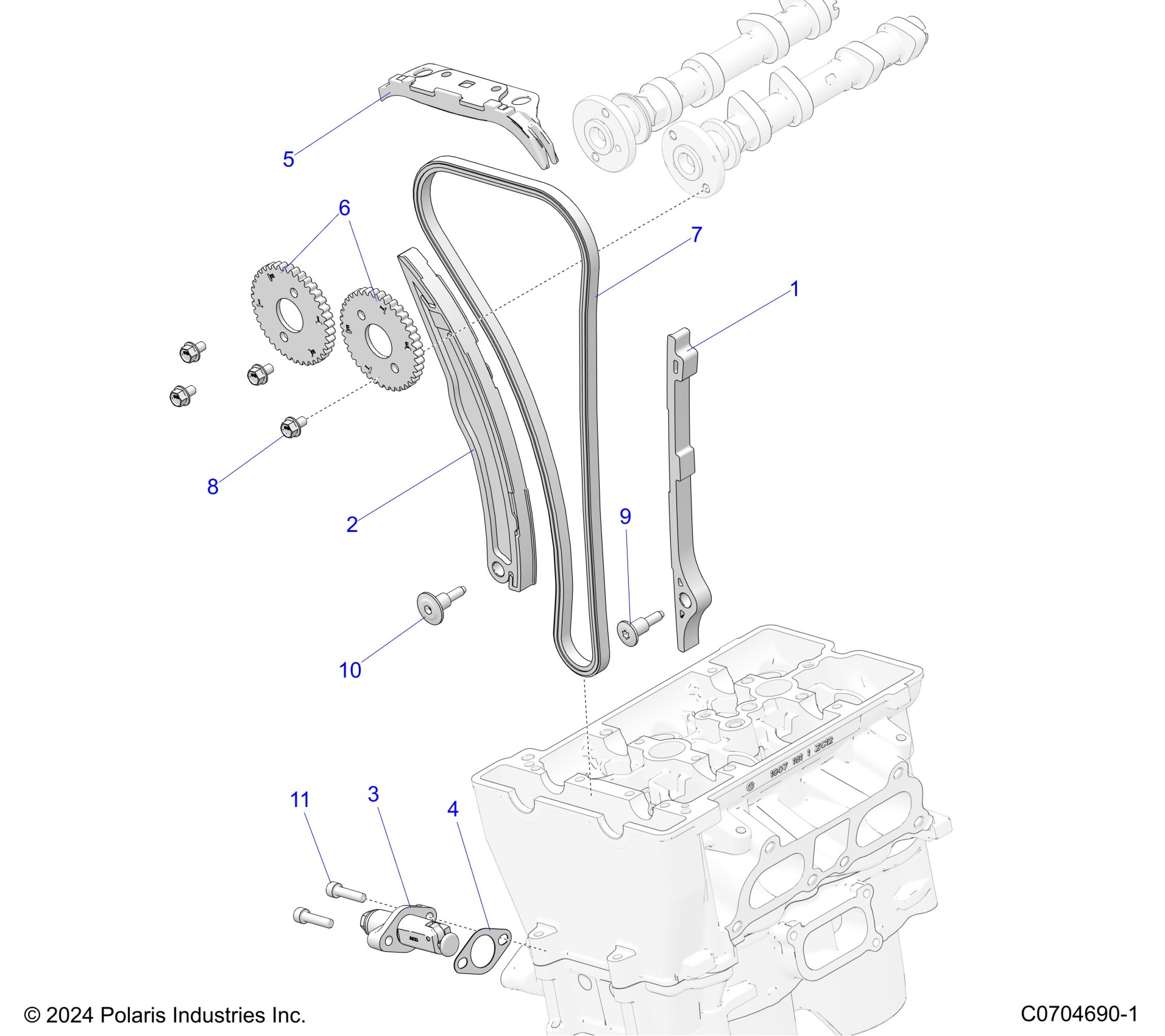

Polaris POLARIS XPEDITION ADV 5 ULTIMATE (R01) - G24GZK99AF/AN/BF/BN ENGINE, CAM CHAIN AND TENSIONER Diagram

#

Description

Price

1

GUIDE-CAMCHAIN,FIXED

3022150

$12.79

2

GUIDE-CAMCHAIN,TENSIONER

3022151

$23.99

3

TENSIONER-RATCHETING,MECH

3023741

$47.99

4

GASKET-TENSIONER

5814561

$1.60

5

GUIDE-CAMCHAIN,TOP,ARC

3022836

$19.99

6

SPROCKET, CAM, DRIVEN, DOHC

3222189

$36.41

7

CHAIN-CAMSHAFT 144L

3222196

$76.89

8

SCREW-HXFL,M6X1.0X10 10.9

7519164

$3.99

9

SCREW-TXPH-M6X1.0X14 8.8 A2K SHB

7519165

$13.59

10

BOLT-SHLDR, M6X14X40

7520593

$4.79

11

SCREW-SH-M6X1.0X25 10.9 ZPC D204

7518995

$5.59
