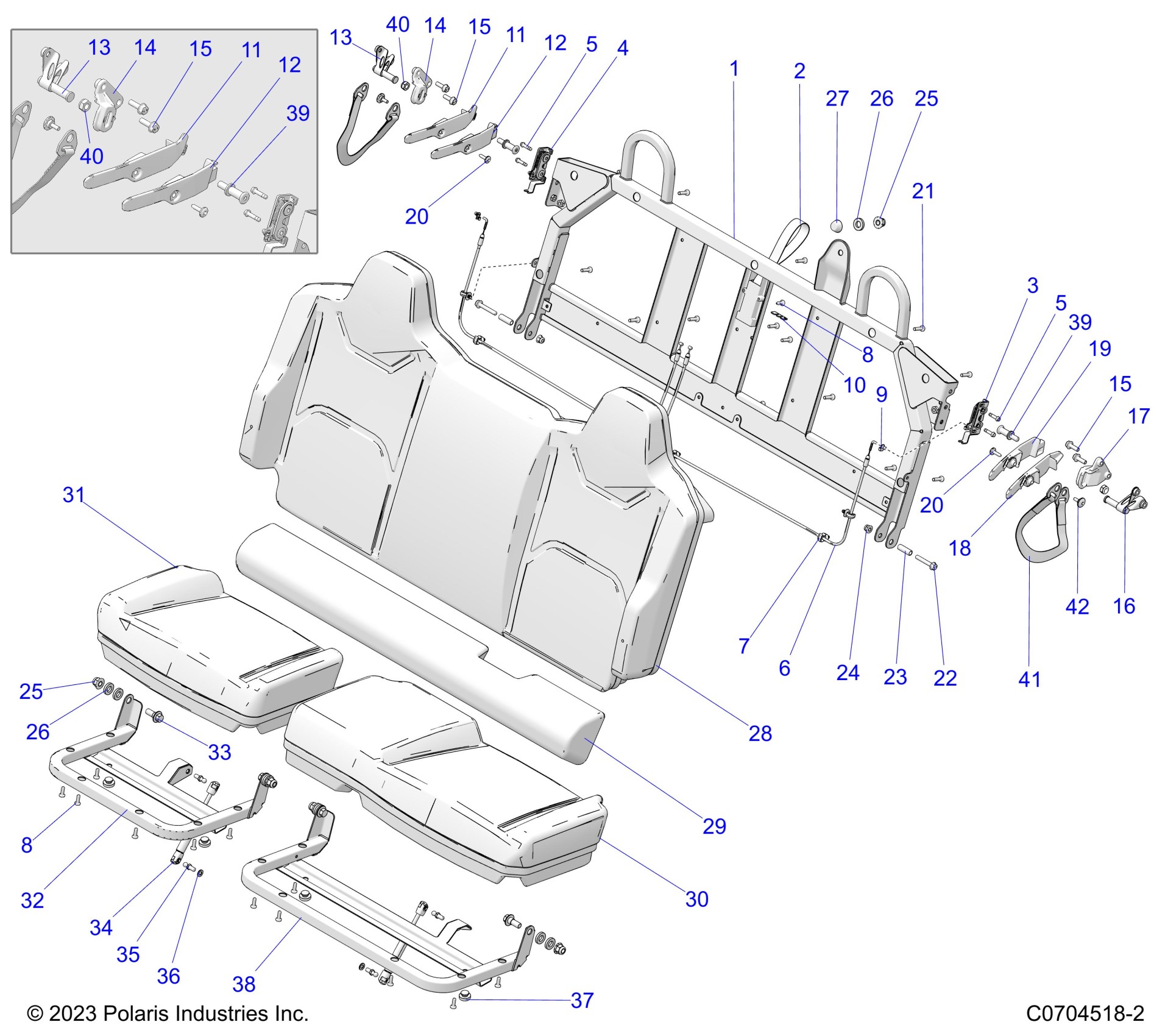

Polaris POLARIS XPEDITION ADV 5 ULTIMATE (R01) - G24GZK99AF/AN/BF/BN BODY, SEAT ASM., REAR - G24GZK99A/99B (C0704518-2) Diagram

#

Description
Price

-

K-BAG,XPE,MP,ADV,SEATS [INCL. 11-20, 25, 39 & 40]

2211669

Unavailable

1

ASM-SEAT,MIDGATE [INCLUDES 1-10]

2637886

$561.59

1

WELD-SEAT,MIDGATE,BLK

1027883-458

$339.99

2

ASM-STRAP,SEAT RELEASE

2638649

$19.99

3

ASM-LATCH,RTRY,2 STG,LH

7082759

$67.99

4

ASM-LATCH,RTRY,2 STG,RH

7082760

$67.99

5

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

5

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

6

CABLE-MIDGATE

7082618

$14.39

7

CLIP-NYLON, C, FIR-TREE

7662310

$4.79

8

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

8

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

9

CLIP-DOOR LATCH

5454637

$4.99

10

PLATE-CABLE RETAINER,ECOAT

5272128-329

$5.59

11

HOOK-SEAT BELT RETAINER,RH [TO 11/27/2023]

5459319

$10.39

11

HOOK-SEAT BELT RETAINER,RH [TO 11/27/2023]

5459319

$10.39

12

HOOK-SEAT BELT RETAINER,RH [FROM 11/27/2023 TO 2/12/2024]

5466168

Unavailable

12

HOOK-SEAT BELT RETAINER,RH [FROM 1/29/2024]

5466023

$9.59

12

HOOK-SEAT BELT RETAINER,RH [FROM 11/27/2023 TO 2/12/2024]

5466168

Unavailable

12

HOOK-SEAT BELT RETAINER,RH [FROM 1/29/2024]

5466023

$9.59

13

WELD-STRIKER,RH,BLK [TO 11/27/2023]

1027164-458

$35.99

13

WELD-STRIKER,RH,BLK [TO 11/27/2023]

1027164-458

$35.99

14

MOUNT-STRIKER,MIDGATE,RH,BLK [FROM 11/27/2023 TO 2/12/2024]

5639703-329

$71.99

14

MOUNT-STRIKER,MIDGATE,RH,BLK [FROM 1/29/2024]

5639681-329

$71.99

14

MOUNT-STRIKER,MIDGATE,RH,BLK [FROM 11/27/2023 TO 2/12/2024]

5639703-329

$71.99

14

MOUNT-STRIKER,MIDGATE,RH,BLK [FROM 1/29/2024]

5639681-329

$71.99

15

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.73

15

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.73

15

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.73

16

WELD-STRIKER,LH,BLK [TO 11/27/2023]

1025592-458

$35.99

17

MOUNT-STRIKER,MIDGATE,LH,BLK [FROM 11/27/2023 TO 2/12/2024]

5639702-329

$71.99

17

MOUNT-STRIKER,MIDGATE,LH,BLK [FROM 1/29/2024]

5639680-329

$71.99

18

HOOK-SEAT BELT RETAINER,LH [TO 11/27/2023]

5459318

$10.39

19

HOOK-SEAT BELT RETAINER,LH [FROM 11/27/2023 TO 2/12/2024]

5466167

Unavailable

19

HOOK-SEAT BELT RETAINER,LH [FROM 1/29/2024]

5466022

$9.59

20

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

20

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

21

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

22

SCR-HXFL-M8X1.25X50 10.9 ZFB

7521332-50

$1.59

23

SPACER-SEAT PIVOT,ECOAT

5144355-329

$8.79

24

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

25

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.19

25

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.19

26

WASHER-SEATBELT,RUBBER

5813829

$1.49

26

WASHER-SEATBELT,RUBBER

5813829

$1.49

27

CAP-BOLT HEAD

5455285

$3.19

28

ASM-CVR-SEAT,FULL,BACK,ORG,GR [COVER ONLY]

2692801

$159.99

28

ASM-CVR-SEAT,FULL,BACK,TTM,GR [COVER ONLY]

2692813

$159.99

29

COVER-SEAT CENTER ROLL,BLK [COVER ONLY]

2692247

Unavailable

29

BUN-SEAT,CENTER ROLL

5815191

Unavailable

30

ASM-CVR-SEAT,60,BTM,ORG,GR ST [COVER ONLY]

2692803

Unavailable

30

ASM-CVR-SEAT,60,BTM,TTM,GS [COVER ONLY]

2692814

Unavailable

31

ASM-CVR-SEAT,40,BTM,ORG,GR ST [COVER ONLY]

2692805

Unavailable

31

ASM-CVR-SEAT,40,BTM,TTM,GR ST [COVER ONLY]

2692815

Unavailable

32

WELD-SEAT BASE,REAR,40,ECOAT

1025590-329

$111.99

33

SCR-HXFLSH-M12X1.75-M14X9 ZFB [TO 2/01/2024]

7527831

$3.19

33

SCR-HXFLSH-M12X1.75-M14X9 ZOD [FROM 2/01/2024]

7519770

$4.79

34

SHOCK-GAS,230.20MM

7045867

$43.99

35

BALL-END

7082301

$2.79

36

WSHR-FLAT-M8X1.6 ZTB

7557234

$2.39

37

BUMPER-RUBBER

5412067

$3.99

38

WELD-SEAT BASE,REAR,60,ECOAT

1025589-329

$127.99

39

PIN-STRIKER,MIDGATE [FROM 11/27/2023]

7663104

$23.99

39

PIN-STRIKER,MIDGATE [FROM 11/27/2023]

7663104

$23.99

40

NUT-HEX-M10X1.5 8 ZB3 NYL [FROM 11/27/2023]

7547658

$1.59

40

NUT-HEX-M10X1.5 8 ZB3 NYL [FROM 11/27/2023]

7547658

$1.59

41

ASM-STRAP,SEAT SUPPORT

2692852

$19.99

42

SCR-TXTH-M6X1.0X20 ZPB SHDR

7520730

$4.79
