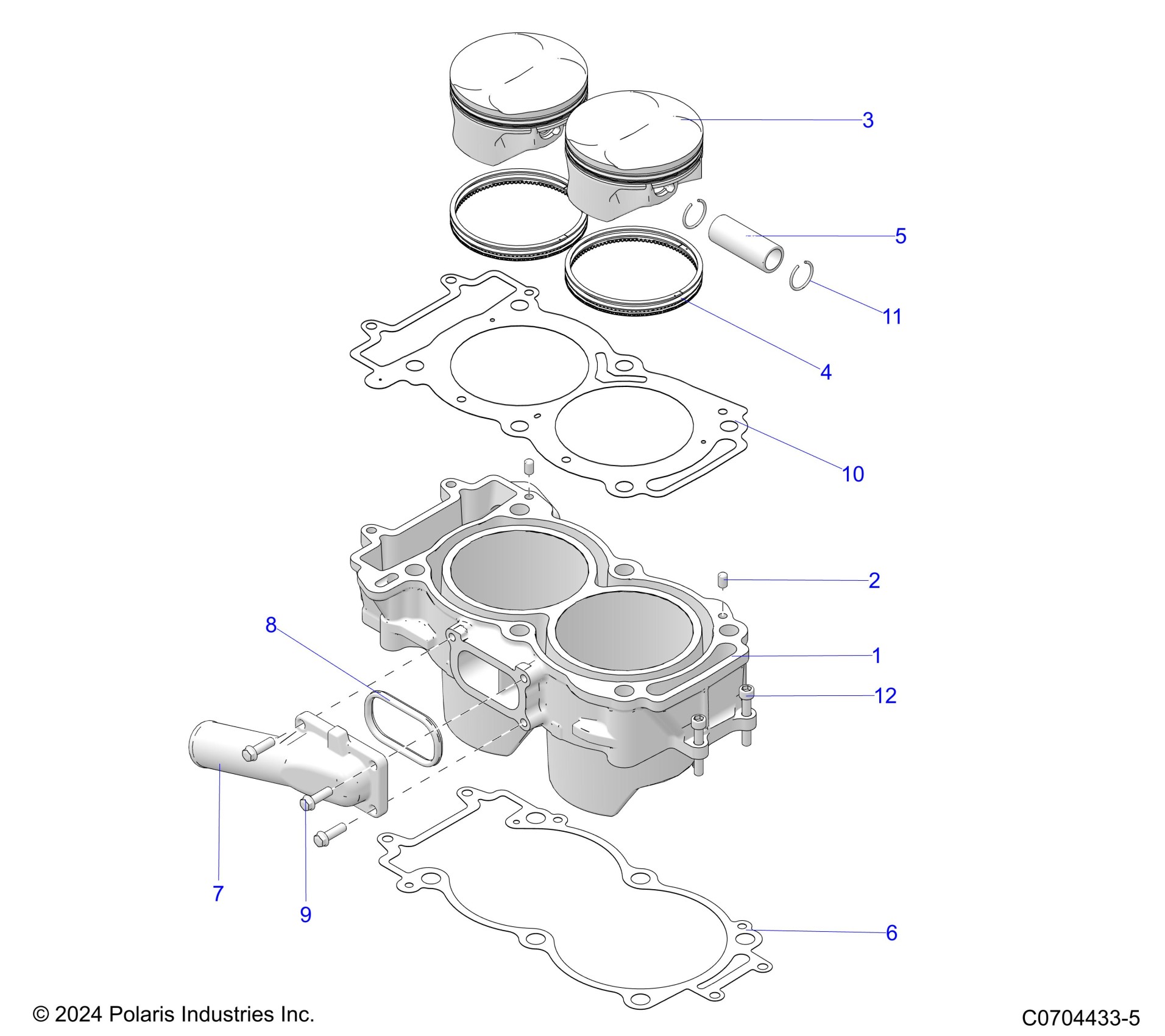

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R02) - G24GZW99AF/AN/BF/BN ENGINE, CYLINDER AND PISTON Diagram

#

Description

Price

1

ASM-CYLINDER,999 [INCLUDES PIN, DOWELS]

3024167

$479.69

2

PIN-DOWEL,M6X10

5132835

$2.39

3

ASM-PISTON [INCLUDES 4, 5, & 11]

3024213

$151.99

4

KIT-PISTON RINGS

2205245

Unavailable

5

PIN-PISTON

3022358

$23.99

6

GASKET-BASE,2 CYL

5272850

$10.39

7

COVER-WATER INLET,CAST

5632557

$14.39

8

GASKET-WATER,INLET

5813736

$24.27

9

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

10

GASKET-CYLINDER,HEAD

5814793

$72.60

11

RING-RTG,ROUND,20.0X1.6

3022413

$3.99

12

SCR-SHFL-M6X1.0X40 10.9 ZY3

7528130

$2.39
