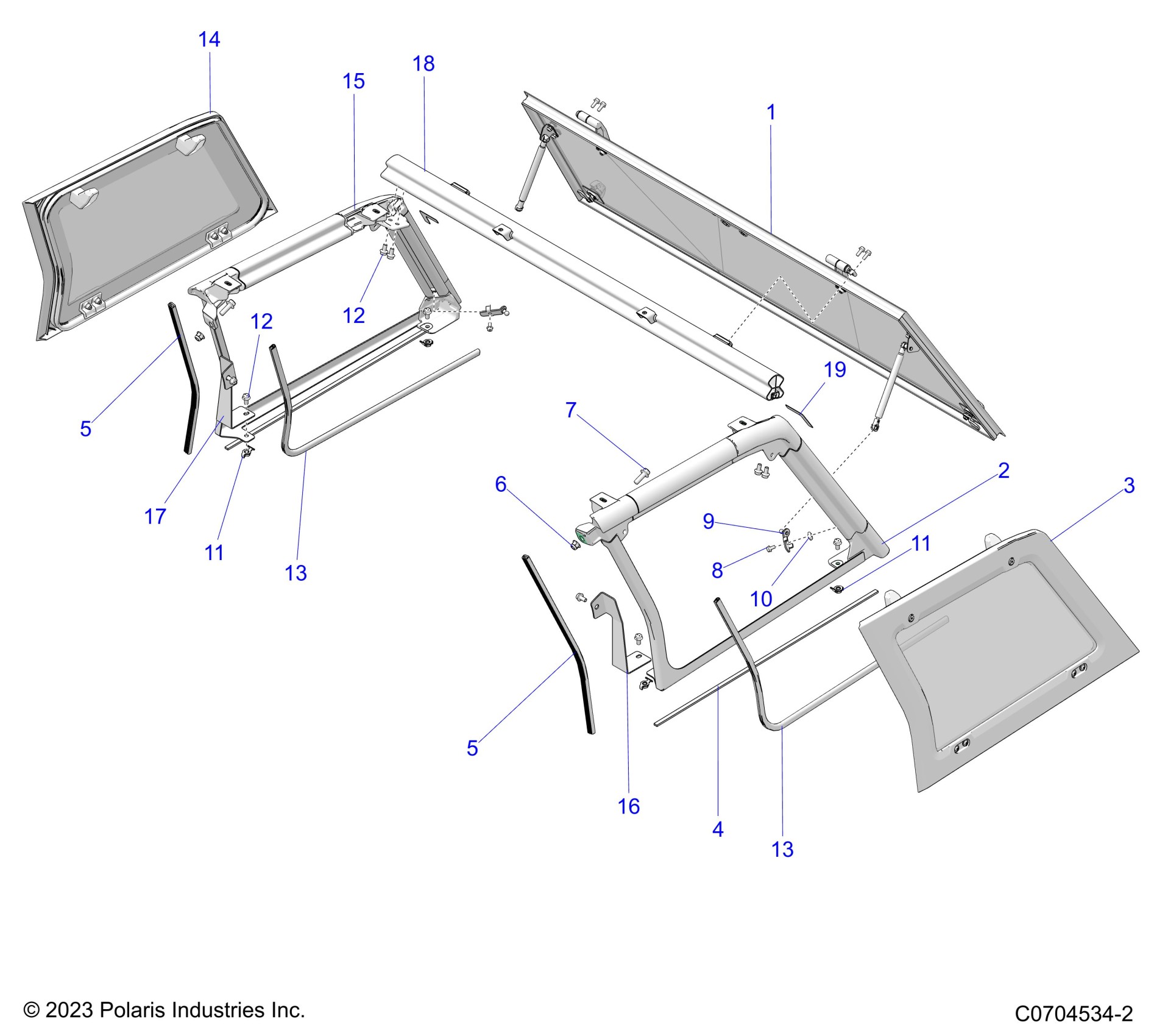

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R02) - G24GZW99AF/AN/BF/BN BODY, REAR WINDOW AND REAR CAB MOUNTING Diagram

ASM-LIFTGATE [SEE REAR WINDOW ASM.]

2639352

$545.99

WELD-FRAME,CAB,REAR,LH,BLK

1025621-458

$343.19

ASM-PANEL,CAB,REAR,LH [SEE REAR CAB PANEL ASM.]

2637901

$268.39

SEAL-CAB FRAME,REAR,713MM

5522343-713

$10.39

SEAL-EXTRSN,15.88X10.16,540MM

5522351-540

$7.19

SEAL-EXTRSN,15.88X10.16,540MM

5522351-540

$7.19

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

SCR-HXFL-M10X1.5X30 10.9 ZFB

7521333-30

$2.39

SCR-HXFL-M6X1.0X12 10.9ZFB

7521331-12

$3.99

WELD-BALL STUD,LIFTGATE,LOWER

1026947

$35.99

T-NUT,M6X1

7548063

$6.15

WELD-T-NUT,FRAME

1027068

$13.59

WELD-T-NUT,FRAME

1027068

$13.59

SCR-HXFL-M8X1.25X16 10.9 ZFB

7521332-16

$3.73

SCR-HXFL-M8X1.25X16 10.9 ZFB

7521332-16

$3.73

TRIM-EDGE CAB,REAR,989MM

5522344-989

$14.39

TRIM-EDGE CAB,REAR,989MM

5522344-989

$14.39

ASM-PANEL,CAB,REAR,RH [SEE REAR CAB PANEL ASM.]

2637902

$268.39

WELD-FRAME,CAB,REAR,RH,BLK

1025622-458

$343.19

BRKT-SUPPORT,ADV,LH,BLK

5273453-458

$43.99

BRKT-SUPPORT,ADV,RH,BLK

5273454-458

$43.99

WELD-FRAME,CAB,CROSSBAR,BLK

1025623-458

$135.99

SEAL-LIFTGATE,UPPER [TO 10/2/2023]

5526510

$3.99
