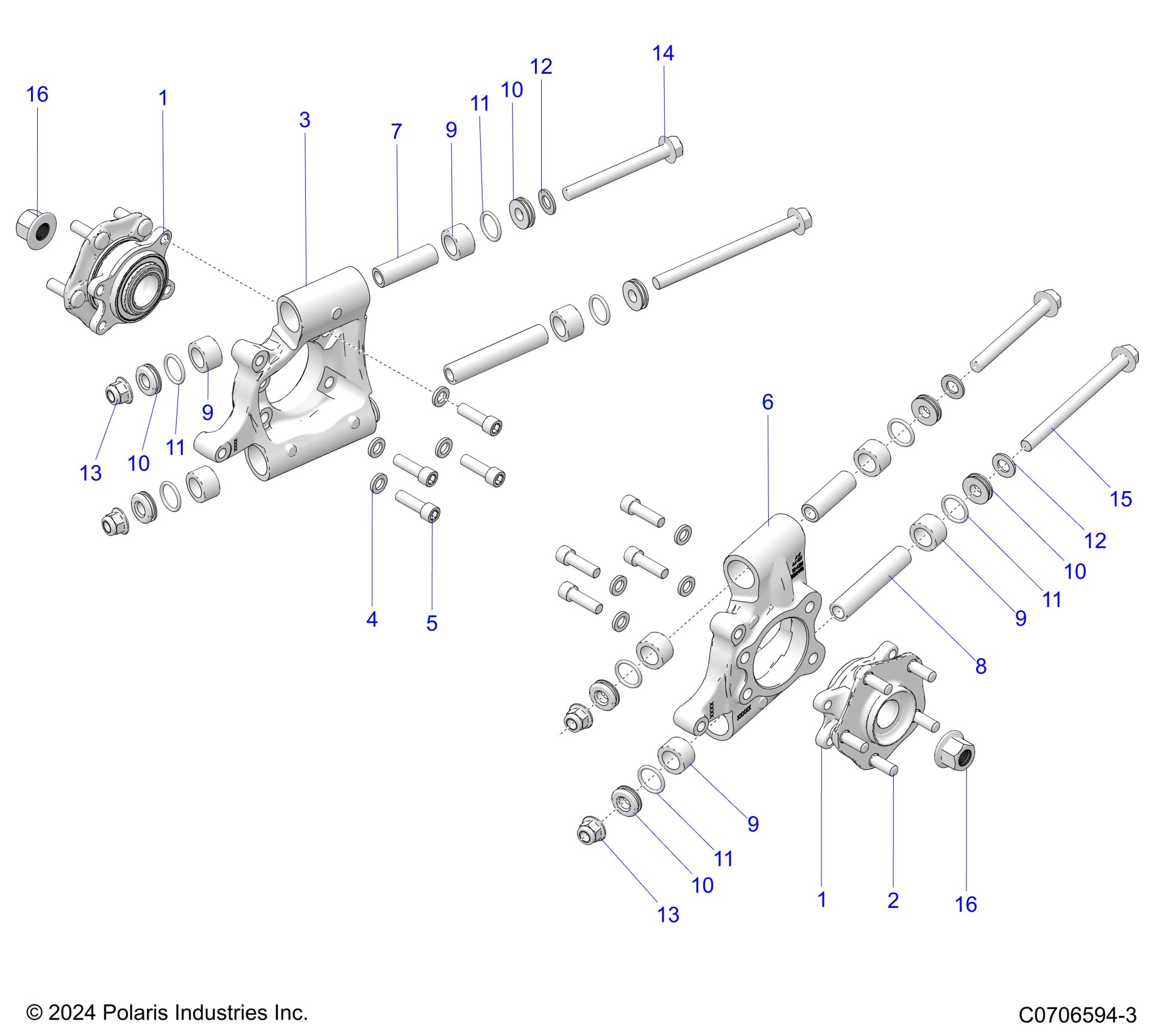

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ SUSPENSION, REAR CARRIER Diagram

#

Description
Price

1

ASM-UNITIZED HUB 5X4.5 [INCLUDES STUDs]

1525346

$159.99

1

ASM-UNITIZED HUB 5X4.5 [INCLUDES STUDs]

1525346

$159.99

2

STUD-WHEEL,M12-1.5

7527823

$3.99

3

CARRIER-BEARING,RH,5LUG

5144170

$99.99

4

WSHR-22X13X3 ZFB HRD

7557160

$3.19

5

SCR-SH-M12X1.25X40 12.9 PTCH

7521356

$9.59

6

CARRIER-BEARING,LH,5LUG

5144169

$99.99

7

SHAFT-PIVOT,14MM,69MM

5143374

$23.99

8

SHAFT-PIVOT,14MM,120MM

5143375

$35.99

9

BUSHING-STANDARD,SUSP,M14

5456377

$3.73

9

BUSHING-STANDARD,SUSP,M14

5456377

$3.73

9

BUSHING-STANDARD,SUSP,M14

5456377

$3.73

9

BUSHING-STANDARD,SUSP,M14

5456377

$3.73

10

ASM-PIVOT CAP,SEALED,M14 [INCLUDES CAP & O-RING]

1545132

$7.19

10

O-RING,2-215,RED

5418680

$2.39

10

ASM-PIVOT CAP,SEALED,M14 [INCLUDES CAP & O-RING]

1545132

$7.19

10

O-RING,2-215,RED

5418680

$2.39

10

ASM-PIVOT CAP,SEALED,M14 [INCLUDES CAP & O-RING]

1545132

$7.19

10

O-RING,2-215,RED

5418680

$2.39

10

ASM-PIVOT CAP,SEALED,M14 [INCLUDES CAP & O-RING]

1545132

$7.19

10

O-RING,2-215,RED

5418680

$2.39

11

CAP-PIVOT SEAL,M14

5143011

$7.91

11

CAP-PIVOT SEAL,M14

5143011

$7.91

11

CAP-PIVOT SEAL,M14

5143011

$7.91

11

CAP-PIVOT SEAL,M14

5143011

$7.91

12

WSHR-FLAT-M14X2.5 ZTB

7557237

$2.39

12

WSHR-FLAT-M14X2.5 ZTB

7557237

$2.39

13

NUT-HXFL-M14X2.0 8 ZTB NYL

7548031

$3.19

13

NUT-HXFL-M14X2.0 8 ZTB NYL

7548031

$3.19

14

SCR-HXFL-M14X2.0X125 10.9 ZFB

7521335-125

$5.59

15

SCR-HXFL-M14X2.0X180 10.9 ZFB

7521335-180

$11.21

16

NUT-M20X1.5,FLG-LCK,ZINC,8.8

7548051

$11.21

16

NUT-M20X1.5,FLG-LCK,ZINC,8.8

7548051

$11.21
