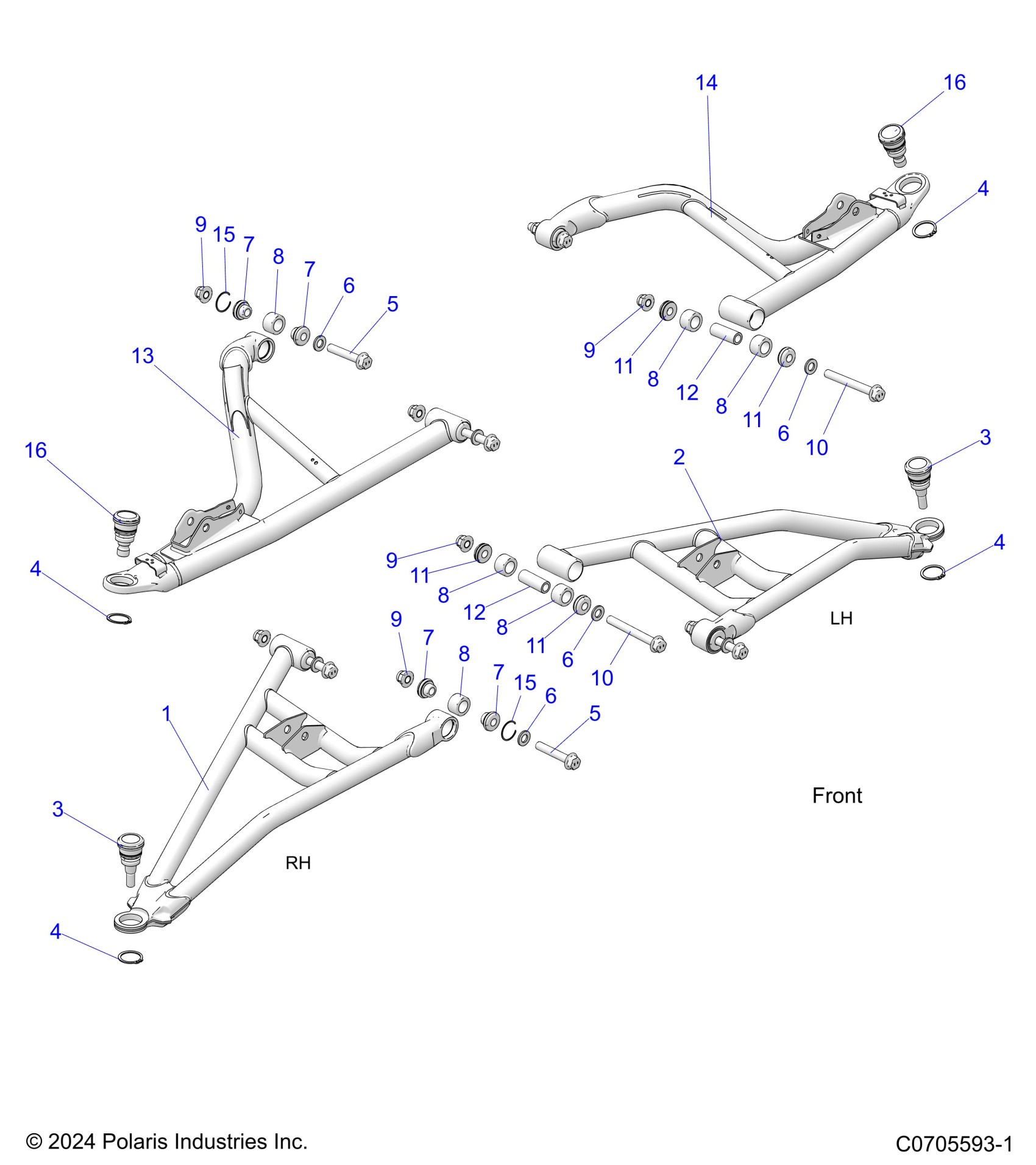

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ SUSPENSION, FRONT CONTROL ARMS Diagram

#

Description
Price

1

ASM-LCA,FRONT,RH,LOADED,BLK [INCLUDES 1,3,4,7,8,11,12]

1544464-458

$358.24

1

WELD-CTRL ARM,FR,LWR,RH,64,BLK

1544380-458

$203.32

2

ASM-LCA,FRONT,LH,LOADED,BLK [INCLUDES 2-4,7,8,11,12]

1544463-458

$358.24

2

WELD-CTRL ARM,FR,LWR,LH,64,BLK

1544379-458

$203.32

3

BALL-JOINT

7083025

$48.56

3

BALL-JOINT

7083025

$48.56

4

RING-RTG,DSH-33ST

7710716

$8.08

4

RING-RTG,DSH-33ST

7710716

$8.08

4

RING-RTG,DSH-33ST

7710716

$8.08

4

RING-RTG,DSH-33ST

7710716

$8.08

5

SCR-HXFL-M12X1.75X70 10.9,ZPC

7521334-70

$4.76

5

SCR-HXFL-M12X1.75X70 10.9,ZPC

7521334-70

$4.76

6

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.14

6

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.14

6

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.14

6

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.14

7

ASM-PIVOT CAP,SEALED,M12,MINI

1543998

$12.70

7

CAP-PIVOT SEAL,M12,MINI

5141426

$4.74

7

O-RING,2-213

5415654

$1.21

7

ASM-PIVOT CAP,SEALED,M12,MINI

1543998

$12.70

7

CAP-PIVOT SEAL,M12,MINI

5141426

$4.74

7

O-RING,2-213

5415654

$1.21

7

ASM-PIVOT CAP,SEALED,M12,MINI

1543998

$12.70

7

CAP-PIVOT SEAL,M12,MINI

5141426

$4.74

7

O-RING,2-213

5415654

$1.21

8

BUSHING-STANDARD, SUSP, M12

5452271

$3.17

8

BUSHING-STANDARD, SUSP, M12

5452271

$3.17

8

BUSHING-STANDARD, SUSP, M12

5452271

$3.17

8

BUSHING-STANDARD, SUSP, M12

5452271

$3.17

8

BUSHING-STANDARD, SUSP, M12

5452271

$3.17

8

BUSHING-STANDARD, SUSP, M12

5452271

$3.17

9

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.17

9

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.17

9

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.17

9

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.17

10

SCR-HXFL-M12X1.75X105 10.9 ZFB

7521334-105

$6.35

10

SCR-HXFL-M12X1.75X105 10.9 ZFB

7521334-105

$6.35

11

ASM-PIVOT CAP,SEALED,M12 [INCLUDES O-RING & SEAL]

1545138

$7.27

11

CAP-PIVOT SEAL,M12

5139992

$4.03

11

O-RING,2-213,RED

5418681

$2.38

11

ASM-PIVOT CAP,SEALED,M12 [INCLUDES O-RING & SEAL]

1545138

$7.27

11

CAP-PIVOT SEAL,M12

5139992

$4.03

11

O-RING,2-213,RED

5418681

$2.38

11

ASM-PIVOT CAP,SEALED,M12 [INCLUDES O-RING & SEAL]

1545138

$7.27

11

CAP-PIVOT SEAL,M12

5139992

$4.03

11

O-RING,2-213,RED

5418681

$2.38

11

ASM-PIVOT CAP,SEALED,M12 [INCLUDES O-RING & SEAL]

1545138

$7.27

11

CAP-PIVOT SEAL,M12

5139992

$4.03

11

O-RING,2-213,RED

5418681

$2.38

12

SHAFT-PIVOT,SHORT,M12

5144660

$8.89

12

SHAFT-PIVOT,SHORT,M12

5144660

$8.89

13

ASM-UCA,FRONT,RH,LOADED,BLK [INCLUDES 4,7,8,11-13,15,16]

1544462-458

$445.38

13

WELD-CTRL ARM,FR,UPR,RH,BLK

1544378-458

$290.46

14

ASM-UCA,FRONT,LH,LOADED,BLK [INCLUDES 4,7,8,11,12,14-16]

1544461-458

$445.38

14

WELD-CTRL ARM,FR,UPR,LH,BLK

1544377-458

$290.46

15

30MM SPIRAL RING,STEEL

7710869

$3.97

15

30MM SPIRAL RING,STEEL

7710869

$3.97

16

BALL-JOINT,HARDENED,HI-MISALGN

7082892

$48.56

16

BALL-JOINT,HARDENED,HI-MISALGN

7082892

$48.56
