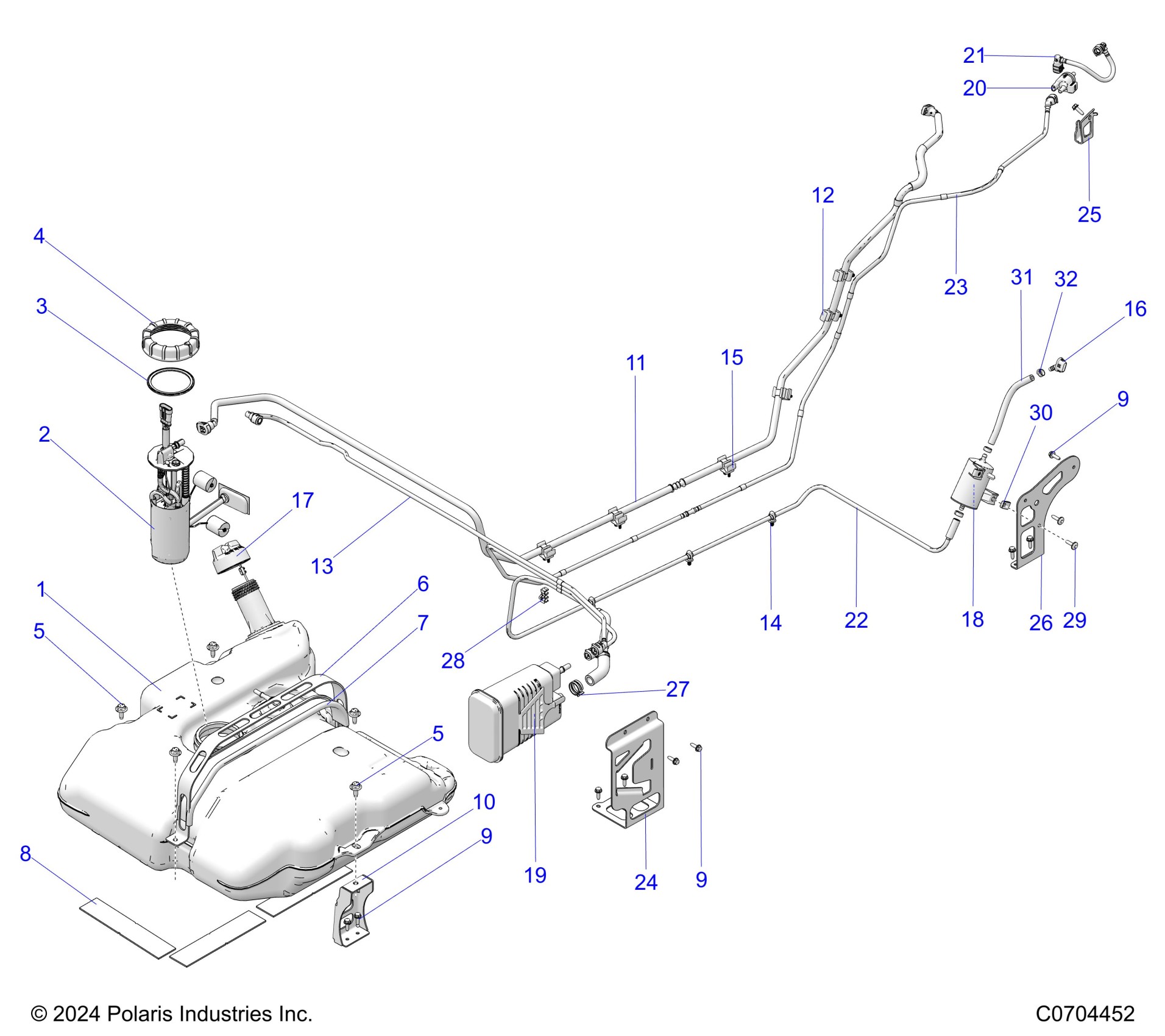

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ FUEL SYSTEM, EVAP FUEL TANK ASM. Diagram

#

Description
Price

1

ASM-FUEL TANK [INCLUDES 2-4]

2638099

$1,099.99

2

K-FUEL PUMP [INCLUDES 3 & 4]

2211819

$387.19

3

GASKET-PFA,RIBBED

5413451

$11.99

4

NUT-MASON JAR

5437138

$35.99

5

SCR-HH-M8X1.25X25 8.8 ZTB SEMS

7527908

$6.39

5

SCR-HH-M8X1.25X25 8.8 ZTB SEMS

7527908

$6.39

6

BRKT-STRAP,FUEL TANK,ECOAT

5268659-329

$27.99

7

PAD-STRAP,RUBBER

5522367

$12.79

8

PAD-TANK,MOUNT

5814781

Unavailable

9

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

10

WELD-MOUNT,FUEL TANK,BLK [TO 6/15/2025]

1026945-329

$31.99

10

WELD-MOUNT,FUEL TANK,E-COAT [FROM 6/15/2025]

1029863-329

$31.99

11

ASM-FUEL LINE,5P

2522538

$131.99

12

CLIP-ROUTING

7082641

$3.19

13

ASM-LINE,TANK TO CANISTER,MP

2522252

$91.99

14

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

15

CLIP-DOUBLE

7082454

$5.59

16

FITTING-VENT LINE,45

5456372

$3.99

17

CAP-GAS TANK,TETHER,12

2522316

$31.99

18

FILTER-CANISTER VENT

2521750

$55.99

19

CANISTER-ACTIVATED CARBON

2521786

$71.99

20

VALVE-PURGE

2521964

$59.99

21

ASM-LINE,PURGE TO TB

2522253

$51.99

22

ASM-LINE,VENT TO CANISTER,5P

2522272

$139.99

23

ASM-LINE,CANISTER TO PURGE,5P

2522539

$115.99

24

BRKT-MNT CANISTER,BLK

5268660-329

$59.99

25

BRKT-MNT PURGE VALVE,BLK

5268661-329

$51.99

26

BRKT-MNT,FILTER CANISTER,ECOAT

5270061-329

$19.99

27

CLAMP-SPRINGBAND 24/12

7081693

$4.03

28

CLIP-TRIPLE

7082246

$6.39

29

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

30

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

31

HOSE-5/16 SAE J30R7,18CM

8450131-18

$5.59

32

CLAMP-HOSE,OETICKER,15.3 STPLS

7081185

$1.59
