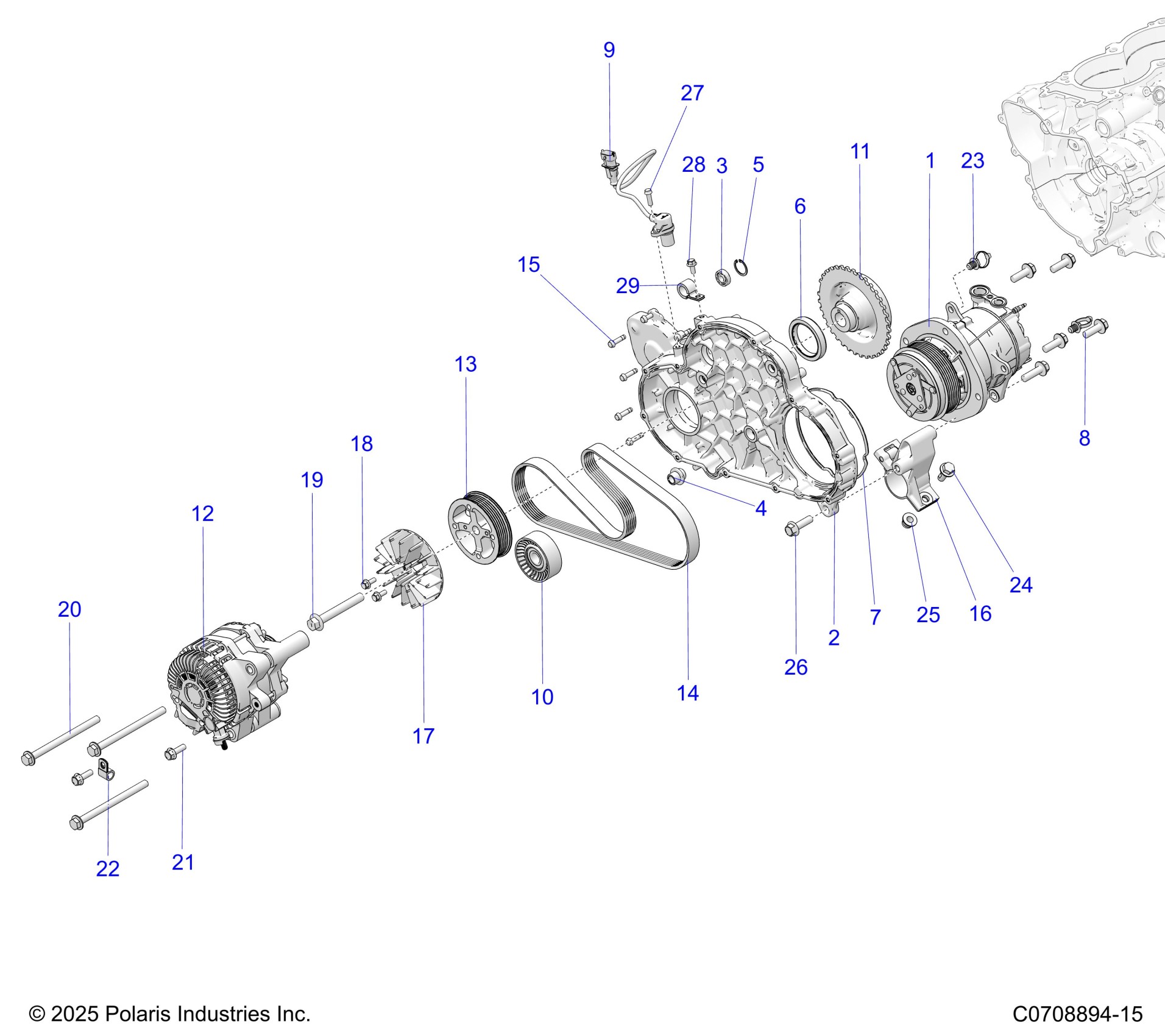

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ ENGINE, ALTERNATOR AND COMPRESSOR Diagram

COMPRESSOR-HVAC,112MM

3023970

$479.74

ASM-COVER,HVAC MOUNT [INCLUDES 3-5]

3024212

$259.99

BEARING-BALL,9X24X7

3514717

$8.73

WASHER,COVER

5140080

$54.99

RING-SNAP,DIN472,24X1.2MM

7710654

$23.81

SEAL-FLANGE,LUBE VITON

3610377

$31.75

GASKET-HVAC COMPRESSOR

5415805

$12.13

SCR-HXFL-M10X1.5X30 8.8 ZOD

7519764

$2.99

SENSOR, CRANK POSITION

2411719

$105.22

PULLEY-FLAT IDLER,70.9MM

3023107

$52.24

ADAPTER HUB

3024063

$259.99

ALTERNATOR-140A,HVAC

4019209

$569.99

PULLEY-6RIB,100,0MM DRIVE

5144824

$67.76

BELT-HVAC DRIVE

5418705

$47.49

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.97

ASM,COMPRESSOR SUPPORT

3023168

$77.44

IMPELLER-FAN,CRANK

5144171

$44.51

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.17

SCR-HXFL-M12X1.25X90 12.9 ZFB

7528260

Unavailable

SCR-HXFL-M10X1.5X140 8.8 ZOD

7519041

$10.32

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

CLIP-P,7/16X.343 HOLE

7081722

$3.97

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.97

SCR-HXFL-M10X1.25X25 8.8 Z NY

7518760

$9.52

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

SCR-HXFL-M10X1.5X35 10.9 ZOD D

7519782

$3.97

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

SCR-HXFL-M6X1.0X14 10.9 ZOPD30

7521131

$3.17

CLIP-P,5/8X281 HOLE,HT,FULL

7082877

$3.97
