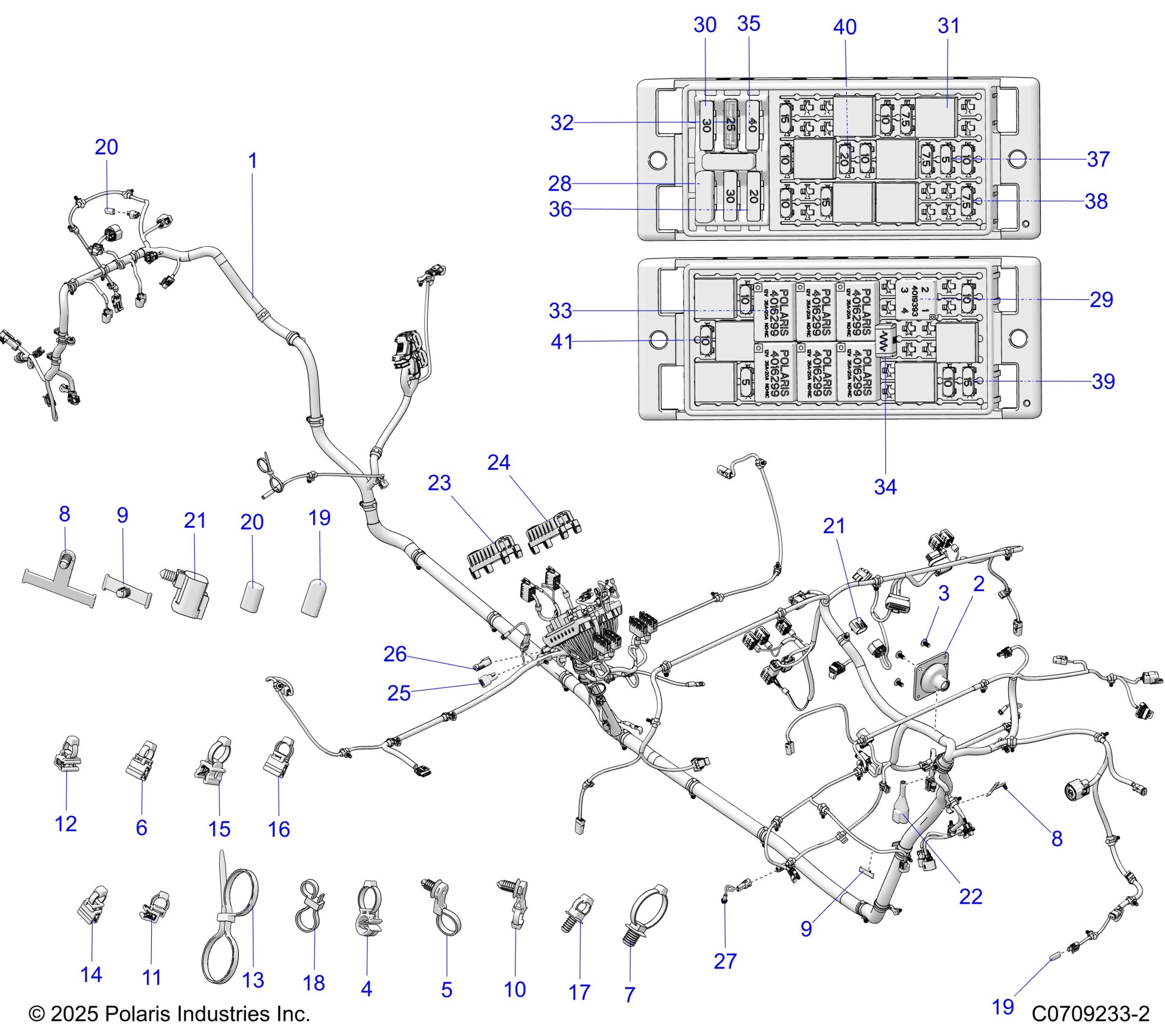

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ ELECTRICAL, HARNESS-CHASSIS Diagram

#

Description
Price

1

HARN-CHASSIS,5P,HVAC [INCLUDES ALL]

2417878

$2,265.99

2

GROMMET - 65MM, W/FLANGE, BLK [INCLUDES 3]

5814560

$12.79

3

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

4

CLIP-OMEGA,CABLE,4-10MM DIA

7082744

$2.39

5

CLIP OFFSET 12.5MM FIRTREE(BK)

7082458

$4.39

6

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

7

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.99

8

CLIP-XMAS, 31MM OFFSET, TAPE-ON

7082412

$3.19

8

CLIP-XMAS, 31MM OFFSET, TAPE-ON

7082412

$3.19

9

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

9

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

10

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

11

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

12

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

13

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

14

CLIP, EDGE, HARNESS

7081890

$10.39

15

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

16

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

17

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

18

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

19

CAP - VINYL, 125X375, BLACK

5438230

$5.59

19

CAP - VINYL, 125X375, BLACK

5438230

$5.59

20

CAP EVAP CONNECTOR

4018066

$3.99

20

CAP EVAP CONNECTOR

4018066

$3.99

21

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

21

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

22

THROTTLE-CON BOOT

4080238

$8.79

23

COVER-PDM,HVAC,2

4080191

$27.99

24

COVER-PDM,HVAC

4081886

$47.99

25

TVS, 30 VOLT

4013200

$83.59

26

DIODE-2 AMP

2415626

$14.39

27

LED-PANEL MNT,12V,BLUE

2416797

$55.99

28

BREAKER-CIRCUIT,T2,25A,ATO

4080193

$19.99

29

SSR-4PIN

4019393

$103.99

30

FUSE-ATC 30 AMP

4017557

$35.99

31

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

32

FUSE-ATC,25 AMP

4016618

$11.19

33

RELAY-SPDT, 12V, 35A, SEALED, HFA

4016299

$35.99

34

RESISTOR-620 OHM, MINI

4081932

$39.99

35

RESISTOR, 68 OHM, MINI

4013062

$39.99

36

FUSE, 20 AMP

4011683

$8.79

37

FUSE-5A,MINI BLADE

4011652

Unavailable

38

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

39

FUSE-15AMP,MINI BLADE

4010859

$7.19

40

FUSE-PARK,20 AMP

2434017

Unavailable

41

FUSE-IGNITION,10 AMP

2434016

$4.79
