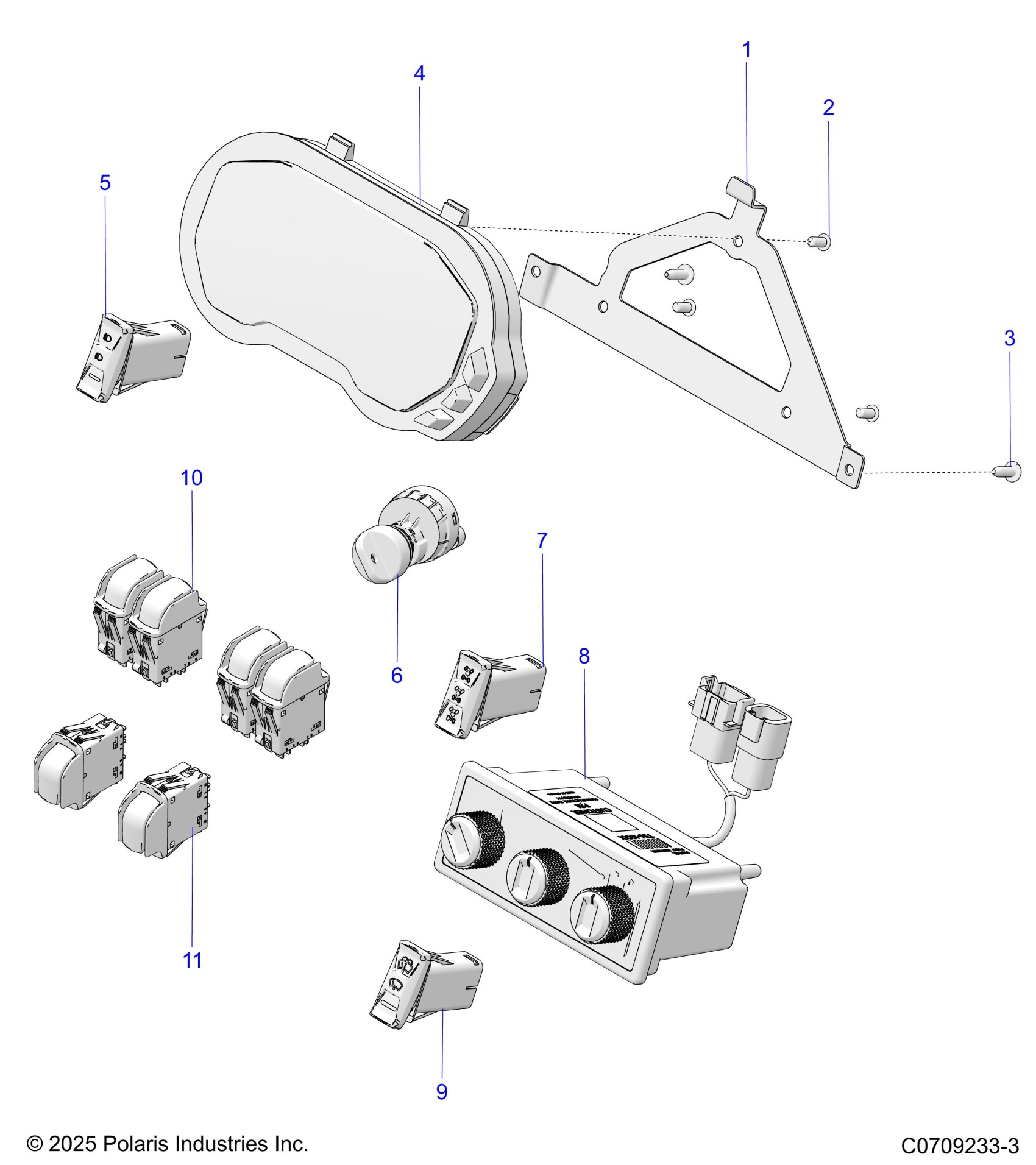

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ ELECTRICAL, DASH INSTRUMENTS AND CONTROLS Diagram

#

Description

Price

1

BRKT-MOUNT,DASH,C4,ECOAT

5271916-329

$14.39

2

SCR-TORX BTNHD,M6X12,0600129

7518330

$4.79

3

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

4

ASM-C4,500K

3286914

$401.27

5

SWITCH-KSERIES,HEADLIGHT

4080801-01

$87.99

6

SWITCH-KEY,4 POSITION,SEALED [TO 10/06/2025]

4016135

$47.99

6

SWITCH-KEY,4 POSITION,SEALED [FROM 10/06/2025]

4083545

$47.99

7

SWITCH-KSERIES,AWD,TURF

4080801-02

$59.99

8

CONTROL-HVAC

4081426

$311.99

9

SWITCH-KSERIES,WASH-WIPE

4080801-10

$59.99

10

SWITCH-WINDOW,POWER

4082121-01

$83.99

11

SWITCH-WINDOW,POWER,INV

4082121-02

$83.99
