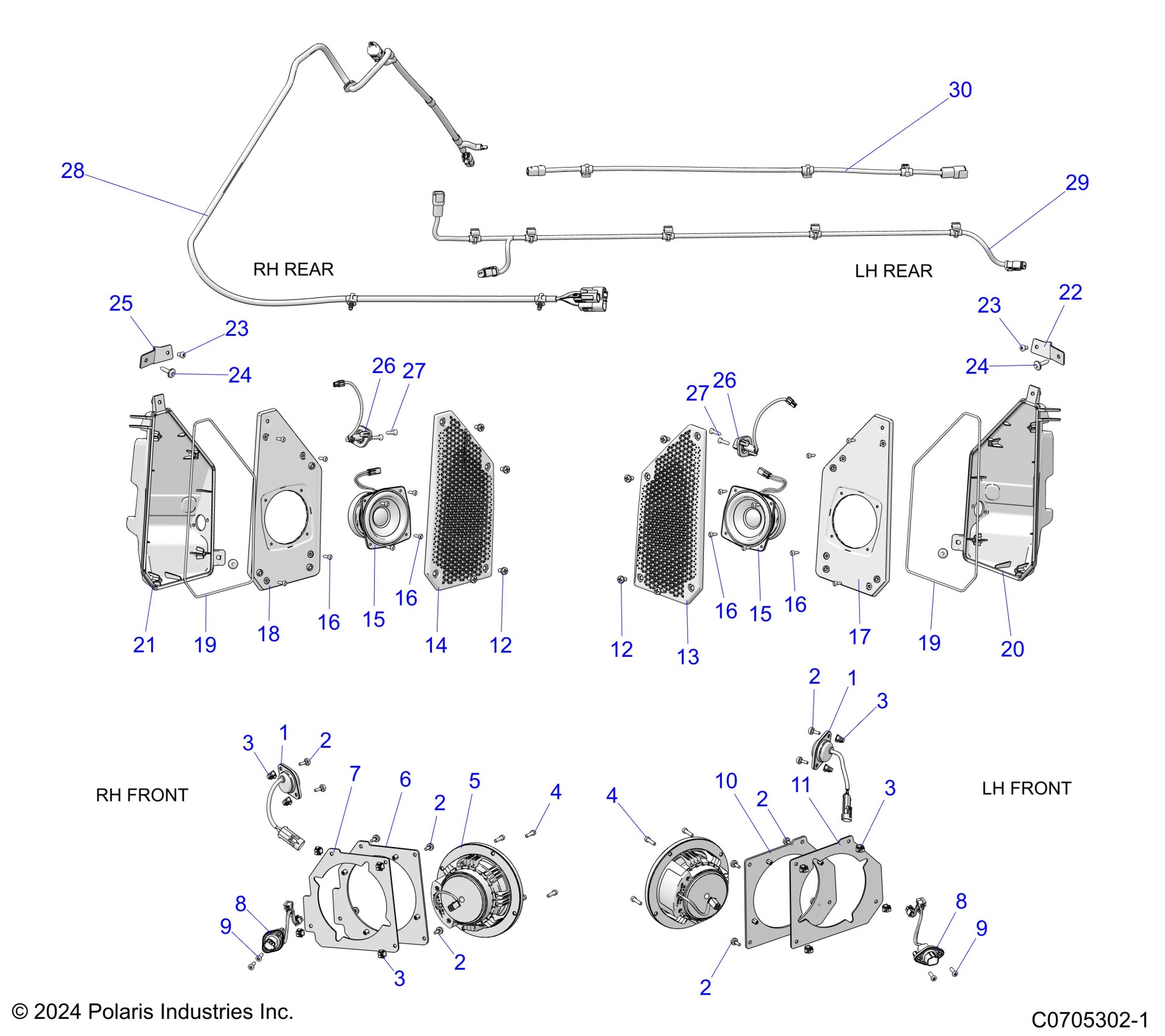

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ ELECTRICAL, AUDIO Diagram

#

Description
Price

-

ASM-SPKR,REAR,LH [INCLUDES 15-17,19,20,26,27]

2417081

$247.99

-

ASM-SPKR,REAR,RH [INCLUDES 15,16,18,19,21,26,27]

2417082

$247.99

1

ASM,TWTR,W/MOUNT,0.75",4OHM

2415718

$83.99

1

ASM,TWTR,W/MOUNT,0.75",4OHM

2415718

$83.99

2

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

$1.59

2

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

$1.59

2

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

$1.59

2

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

$1.59

2

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

$1.59

2

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

$1.59

3

NUT, PAL NUT, M4

7547324

$3.99

3

NUT, PAL NUT, M4

7547324

$3.99

3

NUT, PAL NUT, M4

7547324

$3.99

3

NUT, PAL NUT, M4

7547324

$3.99

4

SCR-SH-M5X0.8X20 8.8 ZB3

7520113

$3.19

4

SCR-SH-M5X0.8X20 8.8 ZB3

7520113

$3.19

5

ASM,WFR,MID,6.5",4OHM,W/XOVER

2415717

$315.99

6

ASM-BAFFLE,RH

2638606

$35.99

7

SEAL-SPEAKER PLATE,RH

5526373

Unavailable

8

HARN-ENCLOSURE,MIDWOOFER

2417080

$43.99

8

HARN-ENCLOSURE,MIDWOOFER

2417080

$43.99

9

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

9

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

10

ASM-BAFFLE,LH

2638605

$31.99

11

SEAL-SPEAKER PLATE,LH

5526372

Unavailable

12

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99

12

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99

13

PANEL-GRILLE,SPKR,REAR,LH

5457804

$19.99

14

PANEL-GRILLE,SPKR,REAR,RH

5457805

$19.99

15

ASM,WFR,MID,4",4OHM,WO/XOVER

2415719

$147.99

15

ASM,WFR,MID,4",4OHM,WO/XOVER

2415719

$147.99

16

SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB

7518227

$3.99

16

SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB

7518227

$3.99

16

SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB

7518227

$3.99

16

SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB

7518227

$3.99

17

HOUSING-REAR ENCLSR,FACE,LH

5459271

$12.79

18

HOUSING-REAR ENCLSR,FACE,RH

5459272

$12.79

19

SEAL-SPEAKER VOLUME,798MM

5416508-798

$6.39

19

SEAL-SPEAKER VOLUME,798MM

5416508-798

$6.39

20

HOUSING-REAR ENCLSR,BACK,LH

5459273

$19.99

21

HOUSING-REAR ENCLSR,BACK,RH

5459274

$19.99

22

BRKT-POD MOUNT,LH,BLK

5273097-458

$35.99

23

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

23

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

24

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

24

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

25

BRKT-POD MOUNT,RH,BLK

5273098-458

$35.99

26

HARN-ENCLOSURE,REAR

2417079

$19.99

26

HARN-ENCLOSURE,REAR

2417079

$19.99

27

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

27

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

28

HARN-ROPS

2415538

$103.99

29

HARN-AUDIO,REAR

2415566

$47.99

30

HARN-AUDIO,REAR,EXT

2415567

$39.99
