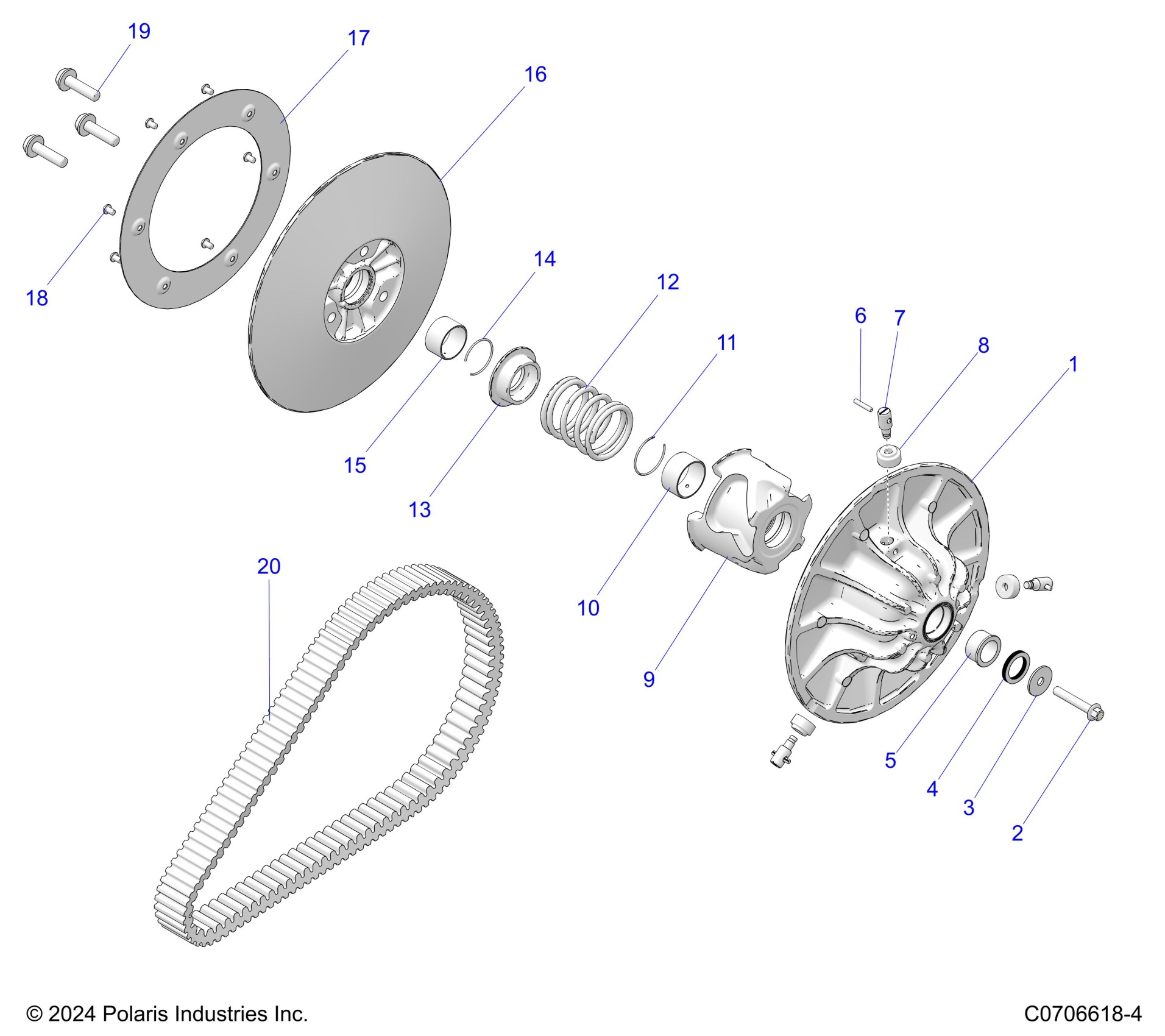

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ DRIVE TRAIN, SECONDARY CLUTCH Diagram

#

Description
Price

1

ASM-DRIVEN,STAT,P90X,HD [INCLUDES 5-8]

1327121

$223.99

2

SCR-HXFL-M8X1.25X50 10.9 ZPB

7521306

$6.39

3

WSHR-8.4X30. 0X2.0 ZPB

7556219

$6.39

4

SHIM-RING,23.25X32.25X0.5

7557060

Unavailable

5

BUSHING-P90X,29X22X17

5141303

$6.39

6

SPRING-PIN-4X22,JIS B 2808

7662377

$2.39

7

PIN-DRIVEN,ROLLER,12MM,CAP

5143130

$8.79

8

ROLLER-8X22X12.5,PAI,CAP

5456608

$52.79

9

ASM-HELIX,MACH,38-42F-BA65 [INCLUDES 10-11]

1323729

$67.99

10

BEARING-MU,35X20

3515175

$9.59

11

RING-SNAP,INT,39X1.5

7710934

$3.19

12

SPRING-DRIVEN,160-230

7045644

$31.99

13

CUP-DRIVEN SPRING,P90X

5634403

$12.79

14

RING-SNAP,INT,36X1.5

7710935

$3.19

15

BEARING-MU,32X36X20

3515162

$6.39

16

ASM-DRIVEN,MOVEABLE,P90X,HD [INCLUDES 9-19]

1327357

$263.99

16

ASM-MOVEABLE SHEAVE [INCLUDES 14-16]

1323812

$127.99

17

PLATE-WINDAGE,DRIVE

5269528

$12.79

18

SCR-TXBH-M5X0.8X8 SPC TRILOBE

7521023

$3.19

19

SCR-HHSEMS-M10X1.5X40 10.9 SPC

7521294

$5.59

20

BELT-DRIVE

3211186

$159.99

20

BELT-DRIVE,12.1CD,HDY HD BELT

3212358

$207.99
