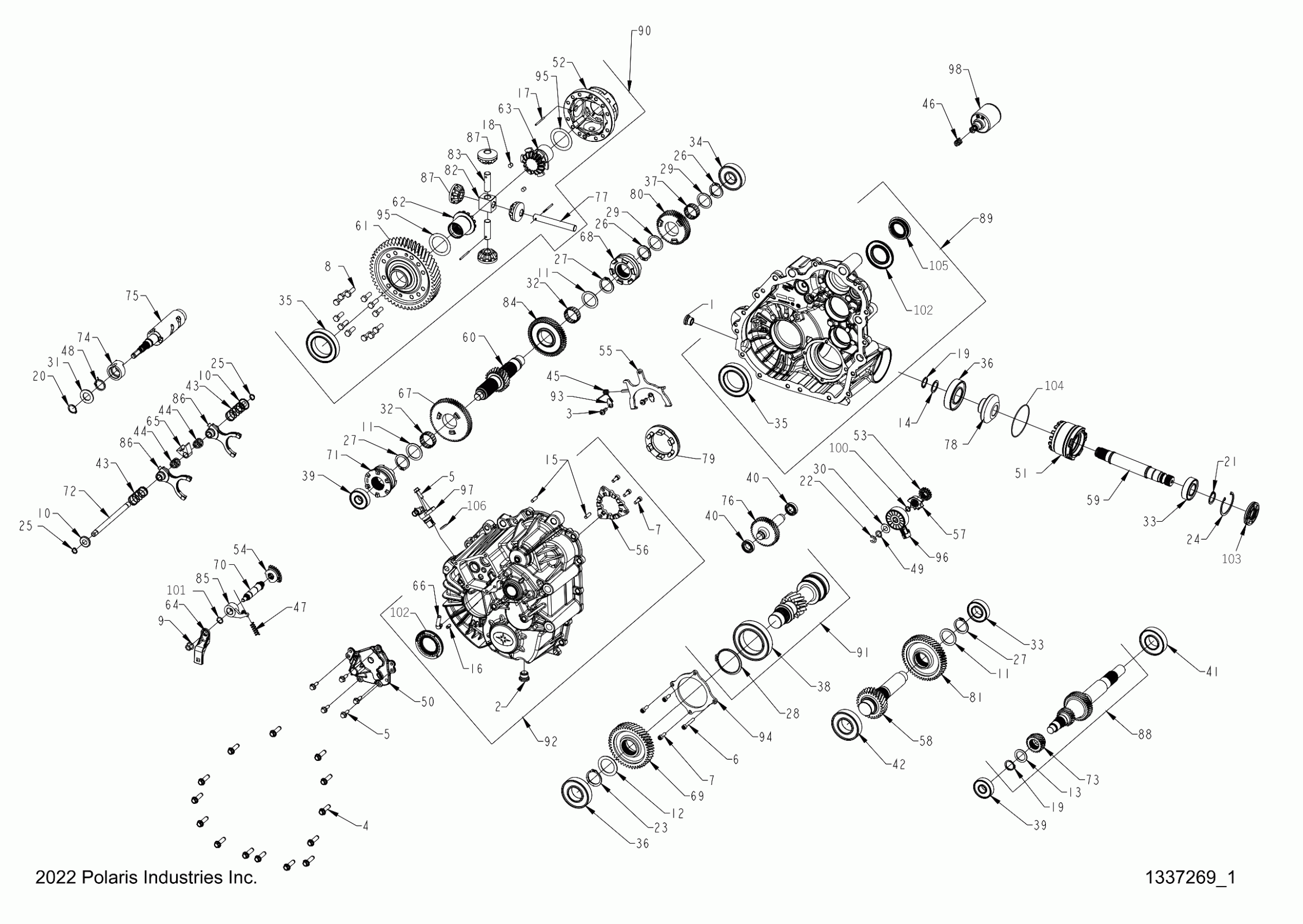

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ DRIVE TRAIN, GEARCASE, MAIN Diagram

ASM-GEARCASE [INCLUDES ALL]

1337269

$4,899.99

PLUG, M18 X 1.5

3234755

$27.78

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.14

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.11

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

SCREW, CAP HH M8 X 1.25 X 25

3236169

$9.70

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.94

WASHER-CUP

3234091

$9.52

WASHER-CUP

3234091

$9.52

WASHER-32.3X42X1.5(115288)

3235211

$10.32

WASHER-32.3X42X1.5(115288)

3235211

$10.32

WASHER-32.3X42X1.5(115288)

3235211

$10.32

WASHER-35.6X57X1.5(115289)

3235212

$13.49

WASHER 22.70 X 32.0 X 1.5

3235991

$12.34

WASHER, 22.5 X 30 X 1.5

3236410

$9.49

PIN, DOWEL 6 X 20

3234330

$7.14

PIN, SPRING, SLOTTED 6 X 12

7043746

$8.08

PIN, DOWEL 3 X 40

3236286

$16.14

PIN, DOWEL 8 X 10

3236295

$13.99

RING, RETAINING BASIC EXTERNAL

7710434

$3.97

RING, RETAINING BASIC EXTERNAL

7710434

$3.97

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

RING, RETAINING,

3234205

$11.11

RING, RETAINING,

3234205

$11.11

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

RING-RETAIN,VSH-237(130298)

3235216

$10.32

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

SPACER, 19.4 X 34.0 X 2.0

3235883

$28.56

BEARING, NEEDLE

3233014

$43.65

BEARING, NEEDLE

3233014

$43.65

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

BEARING

3233020

$47.62

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

BEARING-NEEDLE,30X35X13-CAGED

3233384

$31.75

BEARING, BALL, 6012 C3 60 X 95 X 18

3235218

$59.52

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

BEARING, BALL 62/32 PERFORMANCE

3236746

$51.59

BEARING,BALL 6207 PEER HP C3 35X72X17

3239477

$39.68

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

SPRING, TORSION, RETURN

3234276

$8.89

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$13.75

SPRING, COMPRESSION

3239338

$28.32

SPRING, TORSION

3235885

$20.22

WASHER-SPRING,210393

3235327

$9.52

COVER, SECTOR GEARS MACH

3235809

$47.49

TUBE, SNORKEL MACH

3236120

$194.74

CARRIER, DIFFERENTIAL

3239522

$209.99

GEAR, SECTOR, 16T

3233839

$36.41

GEAR-SECTOR,31T

3233832

$36.41

FORK, PIVOT SHIFT, REAR DIFF

3235455

$93.08

PLATE, PARK, 12 FACE

3235456

Unavailable

STAR, DETENT

3236638

$39.99

SHAFT-IDLER,29T(285803)

3235223

$128.24

SHAFT, FRONT OUTPUT

3236411

$159.75

SHAFT, REVERSE 23T

3236689

$254.98

GEAR, 53T OUTPUT

3239368

$324.99

GEAR, OUTPUT 14T MACH

3239367

$194.99

GEAR, OUTPUT 14T DISCONNECT MACH

3239369

$199.99

BELLCRANK-OFFSET,2.25L

3239669

$32.37

COLLAR-SHIFT

3234073

$31.75

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

GEAR-LOW,67T(352856)

3235232

$125.46

ENGAGEMENT DOG,6-FACE(352857)

3235233

$129.51

GEAR-46T,STAGE 3(352872)

3235236

$128.24

SHAFT-SHIFT(352973)

3235238

$42.74

SHIFT DOG, PARK/LOW (353357)

3235457

$145.70

RAIL-SHIFT SHAFT(353622)

3235542

$28.32

GEAR, LOW 25T

3236132

$75.99

CAM, PARK

3235983

$183.95

DRUM, SHIFT MACH,

3235984

$279.27

GEAR, IDLER 39T

3235986

$113.32

PIN, DIFFERENTIAL

3236292

$129.99

GEAR, 13T SNORKEL

3236412

$170.99

DOG, ENGAGEMENT

3236293

$169.99

GEAR, 52T

3236435

$99.74

GEAR, 50T STAGE 2

3236690

$164.99

COUPLER, PIN

3239489

$109.99

PIN, DIFFERENTIAL

3239491

$13.99

GEAR. REVERSE 56T

3239554

$93.08

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$36.41

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

SUBASSEMBLY, PINION GEAR

3236288

$161.49

SUBASSEMBLY, PINION GEAR

3236288

$161.49

SUBASSEMBLY, INPUT 43T/22T/25T

3236691

$416.33

SUBASSY, LH CASE

3236692

$529.99

SUBASSEMBLY, DIFFERENTIAL

3239520

$479.99

SUBASSEMBLY, PINION SP

3239521

$470.24

SUBASSY, RH CASE

3239627

$539.99

RETAINER-FORK

3234934

$12.34

COVER-BEARING,CNTR DR.

3235241

$48.56

WASHER, THRUST, 40.83 X 56.25 X 0.38

3236294

$11.32

WASHER, THRUST, 40.83 X 56.25 X 0.38

3236294

$11.32

SWITCH, ROTARY, 2 PIN RESISTIVE

7662468

$54.99

SENSOR-SPEED,TRANS

4013908

$109.27

SOLENOID HTQ

3239628

$219.99

O-RING, -012 VITON

3233836

$6.87

O-RING, -014 VITON

3233828

$6.87

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$32.37

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$32.37

SEAL, TRIPLE LIP 25 X 55 X 8

3236135

$56.65

O-RING 2.989 I.D. X 0.07

3236136

$11.39

SEAL-LGHTR LIP W/FLNGE,32X49X9

3239564

$60.70
