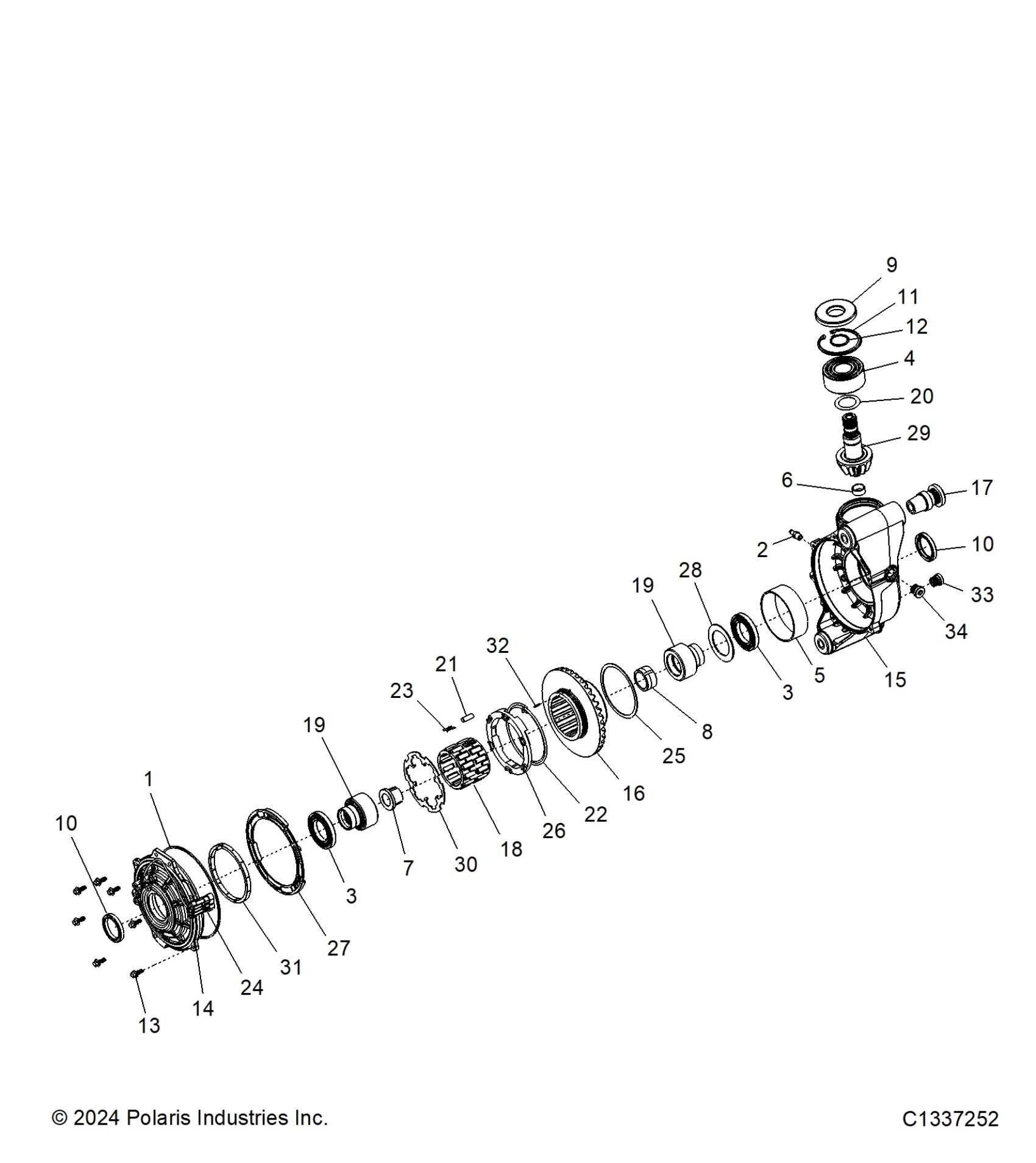

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ DRIVE TRAIN, FRONT GEARCASE ASM. Diagram

#

Description
Price

-

KIT-TORSION,SPRING AND RETAINER [INCLUDES 22 & 26]

3235712

$35.99

-

BEARINGS [INCLUDES 3 & 4]

3236051

$155.99

-

ASM., ROLL CAGE [INCLUDES 18 & 23]

3236540

$263.99

-

GEAR HOUSING & PINION GEAR ASSSY [INCLUDES 4,11,12,16,20,29,32]

3236730

$1,042.79

-

ASM - OUTPUT HUB (ALUM) LG ROLL [INCLUDES 3,7,8,19,28]

3239362

$387.99

-

ASM-COVER OUTPUT [INCLUDES 1,10,14,24,27,31]

3239525

$379.99

-

K-SEAL REPAIR [INCLUDES 1,9,10]

3239524

$95.99

-

ASM-GEARCASE [INCLUDES 2,5,6,10,15,17,33,34]

3239523

$1,680.79

-

ASM-GEARCASE,FRONT [INCLUDES ALL]

1337252

$1,680.79

1

O-RING

-------

Unavailable

2

VENT TUBE

-------

Unavailable

3

BEARING

-------

Unavailable

3

BEARING

-------

Unavailable

4

BEARING, DOUBLE ROW

-------

Unavailable

5

BUSHING, DU

-------

Unavailable

6

BUSHING

-------

Unavailable

7

BUSHING, INNER

-------

Unavailable

8

BUSHING, OUTER

-------

Unavailable

9

SEAL, OIL

-------

Unavailable

10

SEAL, OIL, CUSTOM

-------

Unavailable

10

SEAL, OIL, CUSTOM

-------

Unavailable

11

RING, RETAINING, INNER

-------

Unavailable

12

RING, RETAINING

-------

Unavailable

13

COVER-FASTNERS

3235483

$47.99

14

COVER

-------

Unavailable

15

GEARCASE

-------

Unavailable

16

RING GEAR

-------

Unavailable

17

KIT-ISOLATOR

5417265

$27.99

18

BUSHING

-------

Unavailable

19

ASM-HUB

-------

Unavailable

19

ASM-HUB

-------

Unavailable

20

SHIM

-------

Unavailable

21

CAGE ROLLERS

3235486

$191.81

22

TORSION SPRING

-------

Unavailable

23

SPRING-H CLIP

-------

Unavailable

24

ASM-CONNECTOR

-------

Unavailable

25

SPACER-RING GEAR

3234437

$19.99

26

ASM-SPRING RETAINER

-------

Unavailable

27

SPACER-BACKLASH

-------

Unavailable

28

SPACER-NYLON

-------

Unavailable

29

PINION

-------

Unavailable

30

PLATE-4WD ARMATURE

3236048

$107.99

31

COIL

-------

Unavailable

32

WELD STUD

-------

Unavailable

33

KIT-PLUG,FILL

2203739

$39.99

34

KIT-PLUG,DRAIN

2203738

$35.99
