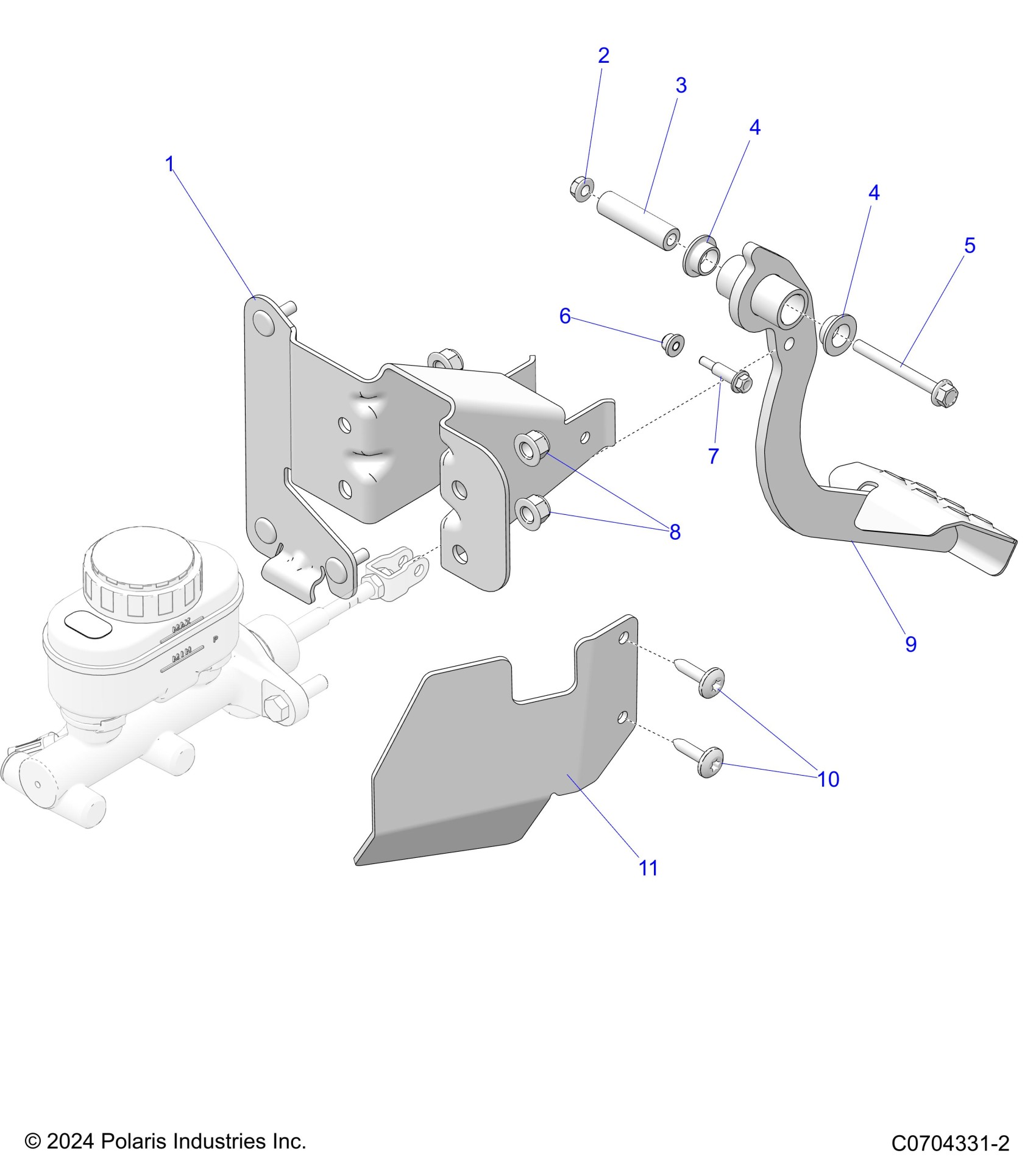

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ BRAKES, FOOT PEDAL Diagram

#

Description

Price

1

WELD-PEDAL MNT,ECOAT

1025370-329

$48.56

2

NUT-HXFLGHD, M6, SERRATED

7547270

$3.97

3

SHAFT-PIVOT,BRAKE PEDAL ASM

5143138

$11.29

4

BUSHING-PEDAL PIVOT

5439274

$12.70

4

BUSHING-PEDAL PIVOT

5439274

$12.70

5

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

6

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.17

7

BOLT,M5X0.8X10,16.5 SHLD

7521227

$3.17

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

9

WELD-BRAKE PEDAL,E-COAT

1025208-329

$59.52

10

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

11

SHIELD-MASTER CYL

5272811

$64.99
