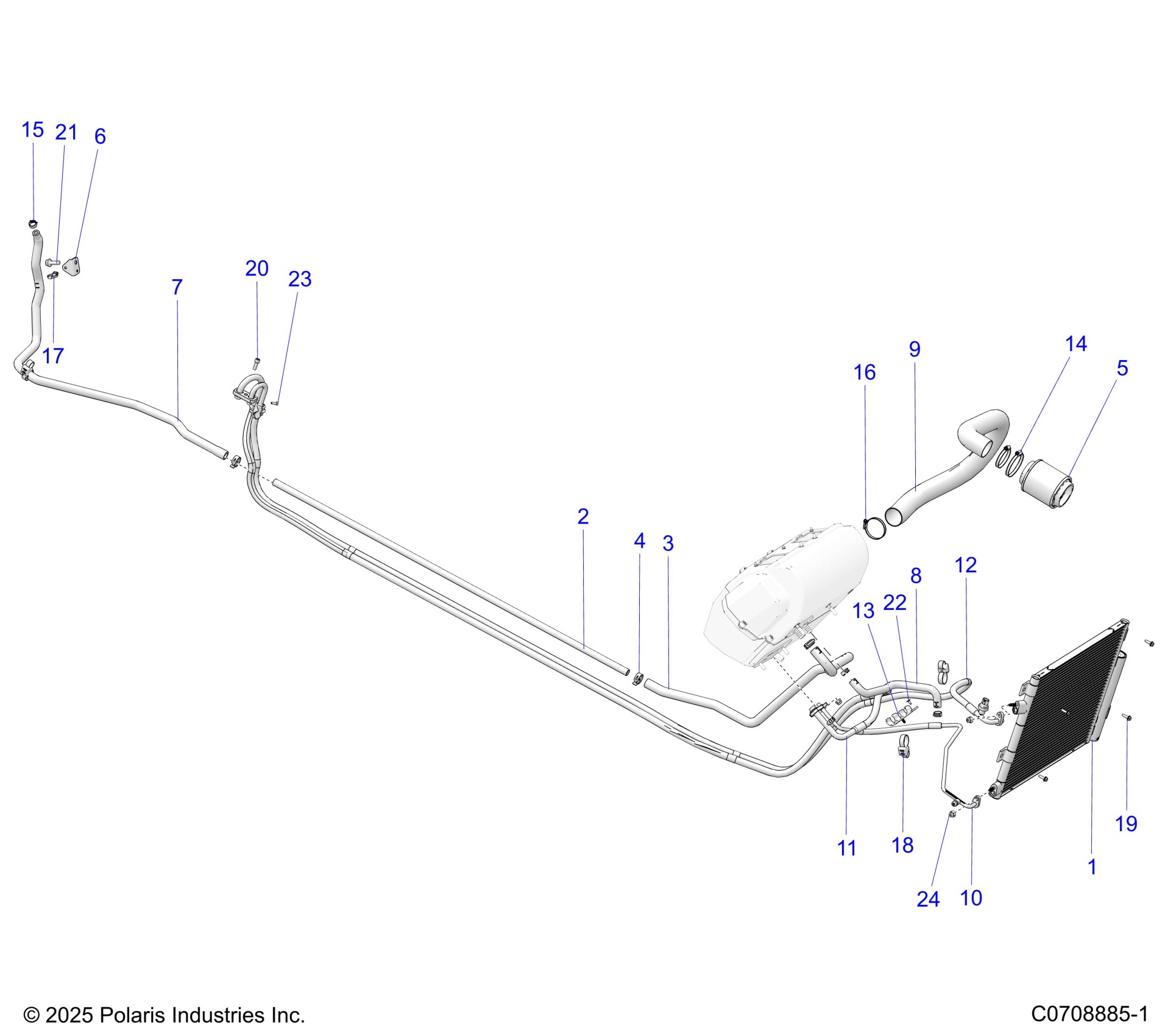

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G26GZW99AS/AH/AJ/BS/BH/BJ BODY, HVAC CONDENSER AND HOSE ROUTINGS Diagram

CONDENSER-HVAC [TO 10/20/2025]

1244801

$813.99

CONDENSER-HVAC [FROM 10/20/2025]

1244932

Unavailable

ASM-HOSE,HEATER,CREW [INCLUDES 2-4]

1241454

$115.99

TUBE-HVAC,COOLANT,CREW

5342562

$87.99

HOSE-HEATER FRONT

5417311

$39.99

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

ASM-FILTER,AIR BOX

1262218

$23.99

BRACKET-HEATER HOSE,ECOAT

5272002-329

$12.79

HOSE-HEATER REAR

5417312

$91.99

HOSE-HEATER RETURN

5417313

$13.59

HOSE-FRESH AIR

5417314

$13.59

HOSE-ASM,A/C #6 HVAC [INCLUDES CAP]

5419271

Unavailable

CAP-HVAC,SERVICE PORT HIGH [CAP ONLY]

5457936

$3.99

HOSE-ASM,A/C #10,HVAC,CREW

5419272

Unavailable

HOSE-ASM,A/C #8,CREW

5419281

Unavailable

CLIP-ROUTING,HVAC

5458511

$3.99

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

CLAMP-HOSE,SPRING .81

7081026

$7.99

CLAMP-NARROW BAND, 1.38/2.38

7080511

$4.79

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CABLE-TIE,DIA14-45MM,DUAL-LOOP

7081807

$7.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCREW-SH-M8X1.25X25 8.8 ZPC

7519859

$5.59

SCR-HXFL-M10X1.5X30 10.9 ZFB

7521333-30

$2.39

RIVET-POP 5/32(.188-.250)-LF-B

7662408

$1.49

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39
