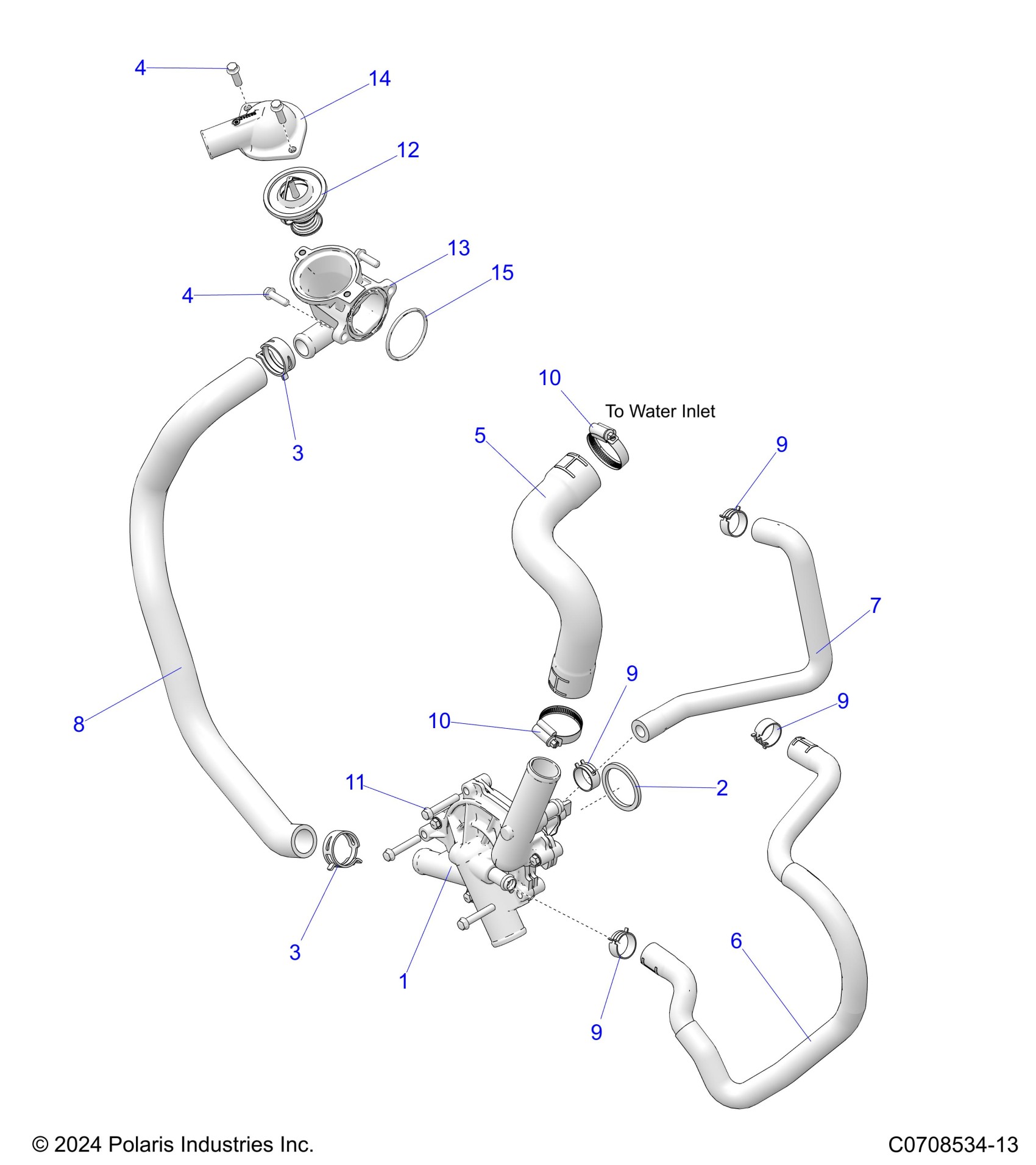

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G25GZW99AB/AP/AK/BB/BP/BK ENGINE, WATERPUMP AND BYPASS Diagram

#

Description
Price

1

ASM-WATERPUMP [FOR INTERNAL PARTS SEE ENGINE, WATERPUMP ASSEMBLY]

3023072

$244.99

2

FILTER-WP

5814207

$2.38

3

CLAMP, SPRINGBAND

7081970

$5.56

3

CLAMP, SPRINGBAND

7081970

$5.56

4

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

4

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

5

HOSE-WATER PUMP OUT,FORMED

5415803

$32.37

6

HOSE-OIL COOLER OUT,HVAC

5417515

$36.41

7

HOSE, OIL COOLER IN

5416307

$15.37

8

HOSE, BYPASS

5416629

$40.46

9

CLAMP-HOSE,SPRING .81

7081026

$7.94

9

CLAMP-HOSE,SPRING .81

7081026

$7.94

9

CLAMP-HOSE,SPRING .81

7081026

$7.94

9

CLAMP-HOSE,SPRING .81

7081026

$7.94

10

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

10

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

11

SCR-HXFL-M6X1.0X35, W/PATCHLOK

7519280

$4.76

12

THERMOSTAT, DOUBLE, ACTING, 1MM

7052600

$52.24

13

ASM-THERMOSTAT HOUSING,HVAC

3023735

$28.32

14

COVER, THERMOSTAT, CAST

5632421

$40.46

15

O-RING

5414591

$3.22
