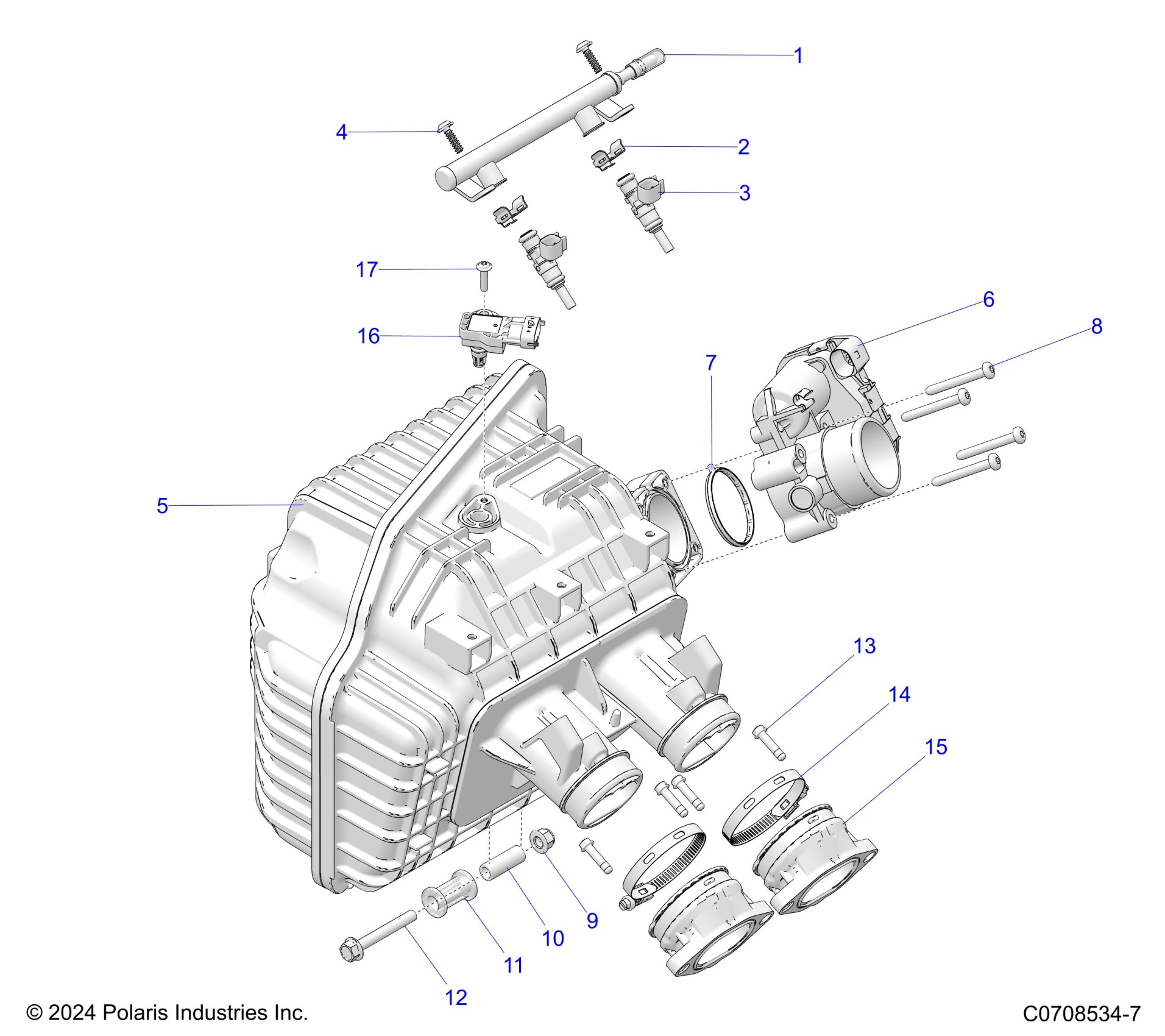

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G25GZW99AB/AP/AK/BB/BP/BK ENGINE, INTAKE MANIFOLD, THROTTLE BODY, FUEL RAIL Diagram

ASM-RAIL,FUEL,4BAR,NR

2522004

$195.99

CLIP, INJECTOR

3131717

$11.19

INJ., EV 14 COMP, EXT

2521387

$115.99

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

O-RING GREEN, LOWER

5415066

$11.32

SCR-TXWH-6MMX20MM DELTA PT CLR

7520922

$7.19

MANIFOLD-INTAKE,COMPOSITE [INCLUDES 7,10 & 11]

3023683

$247.99

MANIFOLD-INTAKE COMPOS,EVAP [EVAP MODELs ONLY] [INCLUDES 7,10 & 11]

3023684

$247.99

THROTTLE-ETC,46MM

1204455

$495.29

GASKET-THROTTLE BODY

5814769

$12.79

SCR-1/4X2 HI/LO-PH-PN TRX-M

7518377

$4.79

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

LIMITER-COMPRESSION,AF.0113666

5138678

$35.99

GROMMET-LX.0113665

5813965

$19.99

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$3.99

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

CLAMP-NARROW,SLOTTED 60-75MM

7083027

$4.79

INTAKE-BOOT

5418145

$51.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCREW-PLASTITE,5.0MMX20-PN-T25

7519952

$3.99
