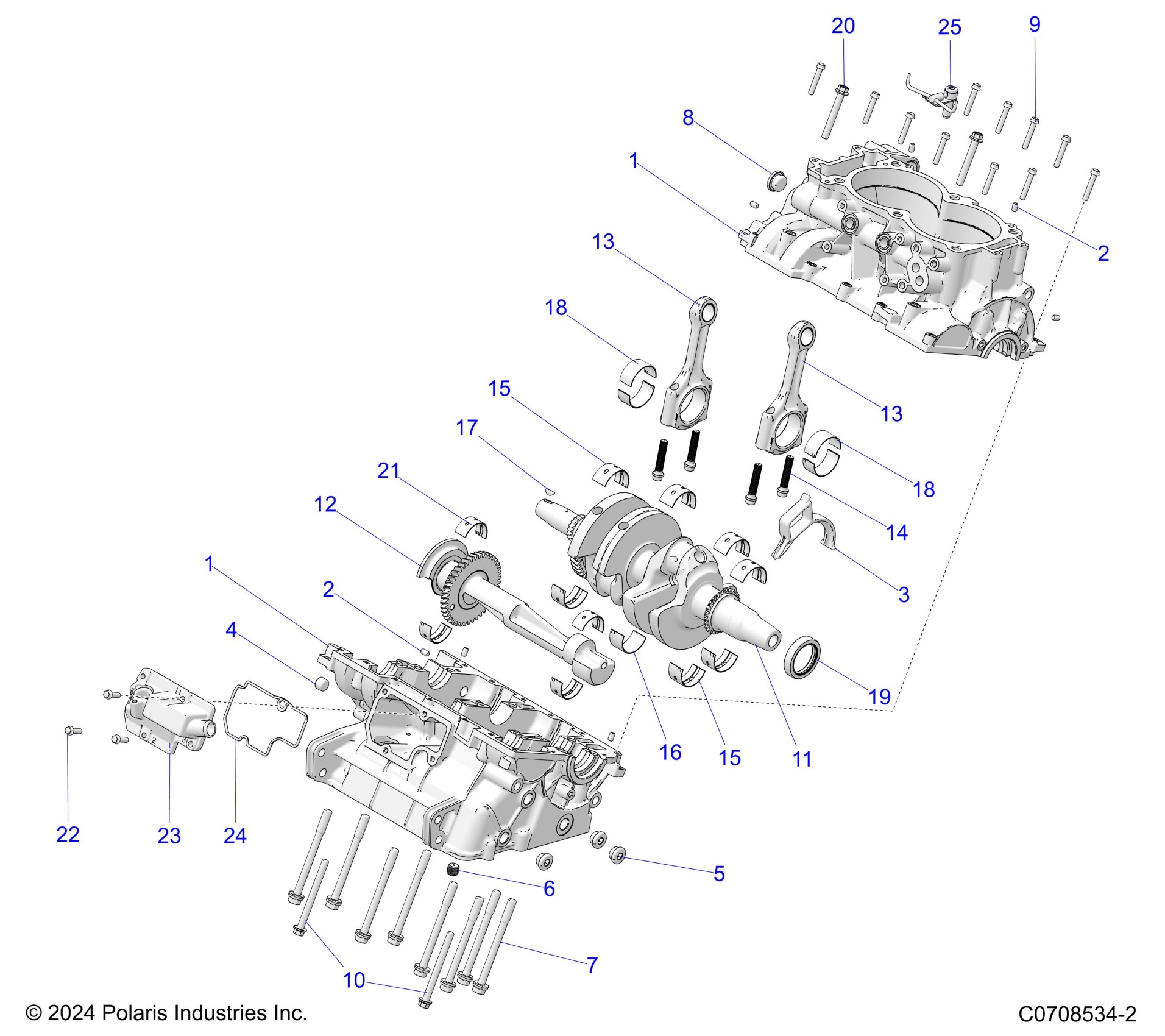

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G25GZW99AB/AP/AK/BB/BP/BK ENGINE, CRANKCASE AND CRANKSHAFT Diagram

#

Description
Price

-

K-CRANKCASE 3024253 [INCLUDES 1-10]

2211921

$1,066.79

1

ASM-CRANKCASE [INCLUDES 2-7]

3024253

$640.41

1

ASM-CRANKCASE [INCLUDES 2-7]

3024253

$640.41

2

PIN-DOWEL,M6X10

5143560

$9.59

2

PIN-DOWEL,M6X10

5143560

$9.59

3

DIVERTER, OIL DRAIN

5455583

$12.79

4

PLUG-3/8 NPT,HX/SOC W/SEALANT

7052413

$3.99

5

PLUG-HEX SCKT,W/O-RING,M16X1.5

7052642

$7.91

6

PLUG-HEX SOCKET,1/4X18,SEALANT

7518835

$5.59

7

SCR-HXFL,M10X1.25X113MM 10.9

7527904

$23.99

8

PLUG-HEX SCKT,W/O-RING,M20X1.5

7052643

$7.99

9

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

10

SCR-HXFLG,M8X1.25X90

7519154

$7.19

11

ASM-CRANKSHAFT HVAC

3023733

$950.39

12

ASM-BALANCE SHAFT

1204835

$343.99

13

ASM-CONNECTING ROD [INCLUDES 14]

3024355

$155.99

13

ASM-CONNECTING ROD [INCLUDES 14]

3024355

$155.99

14

BOLT-CONROD MJ9X1.0X44

7520356

$23.99

15

BEARING-MAIN,G-90,41MM

3515160-001

$9.59

15

BEARING, MAIN, BLUE

3515160-002

$9.59

15

BEARING, MAIN, GREEN

3515160-003

$9.59

15

BEARING, MAIN, YELLOW

3515160-004

$9.59

15

BEARING, MAIN, RED

3515160-005

$9.59

15

BEARING-MAIN,G-90,41MM

3515160-001

$9.59

15

BEARING, MAIN, BLUE

3515160-002

$9.59

15

BEARING, MAIN, GREEN

3515160-003

$9.59

15

BEARING, MAIN, YELLOW

3515160-004

$9.59

15

BEARING, MAIN, RED

3515160-005

$9.59

16

BEARING-MAIN LRW, BLUE

3515161-002

$10.39

16

BEARING-MAIN LRW, GREEN

3515161-003

$10.39

16

BEARING-MAIN LRW, YELLOW

3515161-004

$10.39

17

KEY-WOODRUFF,4X5

7721122

$7.84

18

BEARING, CONNECTING ROD, WHITE

3515159-001

$8.79

18

BEARING, CONNECTING ROD, BLUE

3515159-002

$8.79

18

BEARING, CONNECTING ROD, GREEN

3515159-003

$8.79

18

BEARING, CONNECTING ROD, YELLOW

3515159-004

$8.79

18

BEARING, CONNECTING ROD, WHITE

3515159-001

$8.79

18

BEARING, CONNECTING ROD, BLUE

3515159-002

$8.79

18

BEARING, CONNECTING ROD, GREEN

3515159-003

$8.79

18

BEARING, CONNECTING ROD, YELLOW

3515159-004

$8.79

19

SEAL-CRANKSHAFT

3610284

$32.37

20

SCR-HXFLG,M8X1.25X60

7519186

$6.53

21

BEARING-BAL SHAFT,38X41X17.5

3514756

$9.59

22

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

23

COVER-BREATHER,MACH

5143720

$43.56

24

SEAL-COVER,BREATHER

5813759

$27.99

25

JET, PISTON

3022856

$48.40
