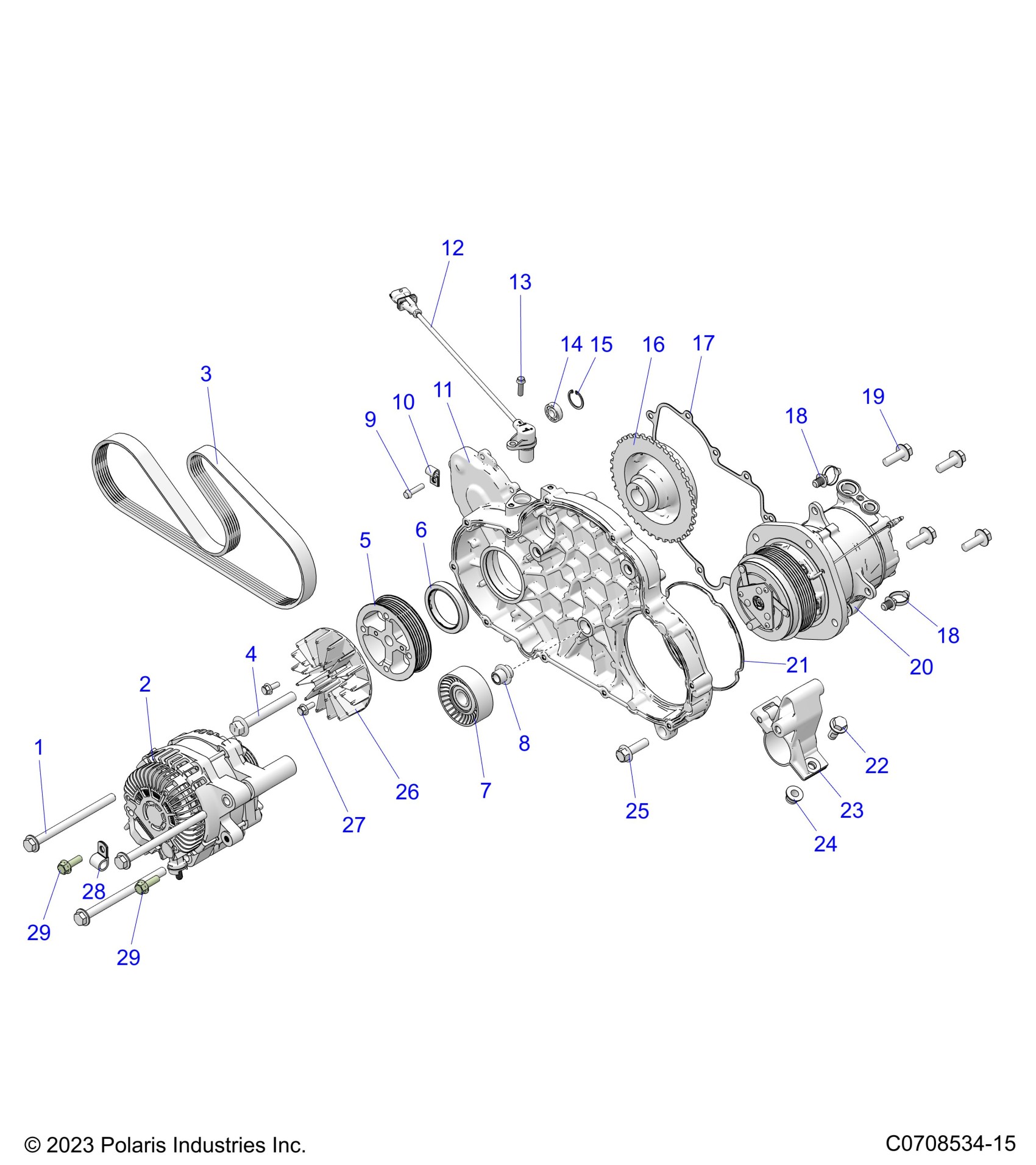

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G25GZW99AB/AP/AK/BB/BP/BK ENGINE, ALTERNATOR AND COMPRESSOR Diagram

#

Description
Price

1

SCR-HXFL-M10X1.5X140 8.8 ZOD

7519041

$10.32

2

ALTERNATOR-140A,HVAC

4019209

$569.99

3

BELT-HVAC DRIVE

5418705

$47.49

4

SCR-HXFL-M12X1.25X90 12.9 ZFB

7528260

Unavailable

5

PULLEY-6RIB,100,0MM DRIVE

5144824

$67.76

6

SEAL-FLANGE,LUBE VITON

3610377

$31.75

7

PULLEY-FLAT IDLER,70.9MM

3023107

$52.24

8

WASHER,COVER

5140080

$54.99

9

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.97

10

CLAMP-HOSE,.312DIA,VINYL COAT

7080683

$2.38

11

ASM-COVER,HVAC MOUNT

3024212

$259.99

12

SENSOR, CRANK POSITION

2411719

$105.22

13

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

14

BEARING-BALL,9X24X7

3514717

$8.73

15

RING-SNAP,DIN472,24X1.2MM

7710654

$23.81

16

ADAPTER HUB

3024063

$259.99

17

GASKET, COVER, IGNITION

5814160

$40.46

18

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.97

18

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.97

19

SCR-HXFL-M10X1.5X30 8.8 ZOD

7519764

$2.99

20

COMPRESSOR-HVAC,112MM

3023970

$479.74

21

GASKET-HVAC COMPRESSOR

5415805

$12.13

22

SCR-HXFL-M10X1.25X25 8.8 Z NY

7518760

$9.52

23

ASM,COMPRESSOR SUPPORT

3023168

$77.44

24

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

25

SCR-HXFL-M10X1.5X35 10.9 ZOD D

7519782

$3.97

26

IMPELLER-FAN,CRANK

5144171

$44.51

27

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.17

28

CLIP-P,7/16X.343 HOLE

7081722

$3.97

29

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

29

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59
