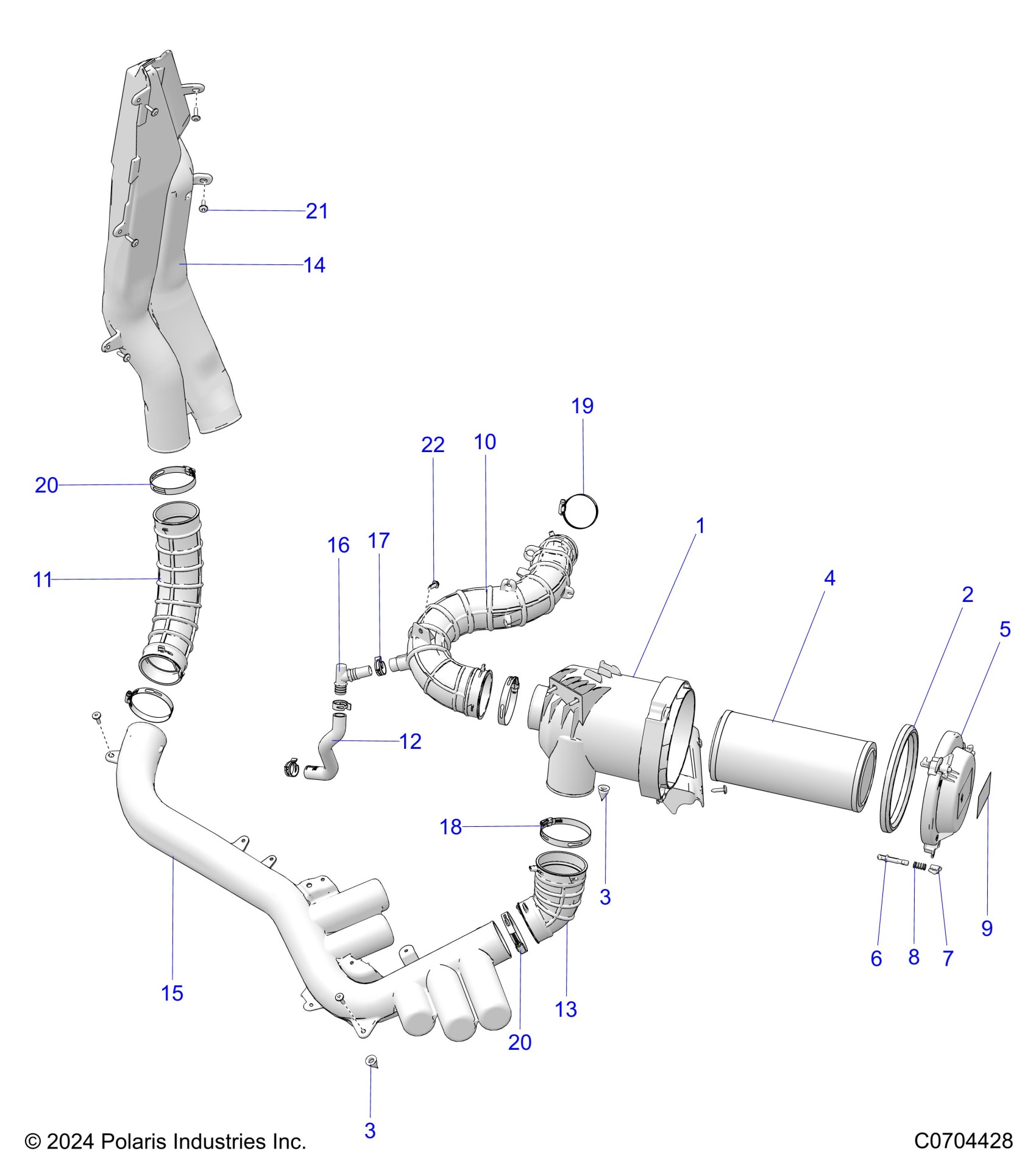

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G25GZW99AB/AP/AK/BB/BP/BK ENGINE, AIR INTAKE Diagram

#

Description
Price

1

ASM-AIRBOX [INCLUDES 1-9]

2637836

$171.99

1

BASE-AIRBOX

5465631

$59.99

2

SEAL-AIRBOX

5814940

$55.99

3

PLUG-DRAIN

5414472

$5.59

3

PLUG-DRAIN

5414472

$5.59

4

FILTER-AIR

7083080

$35.99

5

ASM-AIRBOX COVER [INCLUDES 6-9]

1241428

$105.59

6

PIN-QUICK TURN

5456270

$3.19

7

LATCH-QUICK TURN

5456271

$3.19

8

SPRING-QUICK TURN

7045334

$7.03

9

DECAL-CAUT.AIR BOX

7182652

Unavailable

10

HOSE-AIRBOX TO THROTTLE BODY

5417258

$87.99

11

HOSE-PILLAR DUCT-DIRTY DUCT

5417259

$51.99

12

HOSE-BREATHER

5417260

$14.39

13

HOSE-AIRBOX TO CROSS DUCT

5417520

$43.99

14

DUCT-SIDE INTAKE

5456745

$87.99

15

DUCT-CROSS

5457598

$87.99

16

FITTING-3/4 DOUBLE BARB

7055558

$3.99

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

18

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

19

CLAMP-HOSE SLOTTED,60-80 DIA

7082509

$4.79

20

CLAMP-HOSE SLOTTED,84-96 DIA

7082805

$5.59

20

CLAMP-HOSE SLOTTED,84-96 DIA

7082805

$5.59

21

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

22

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49
