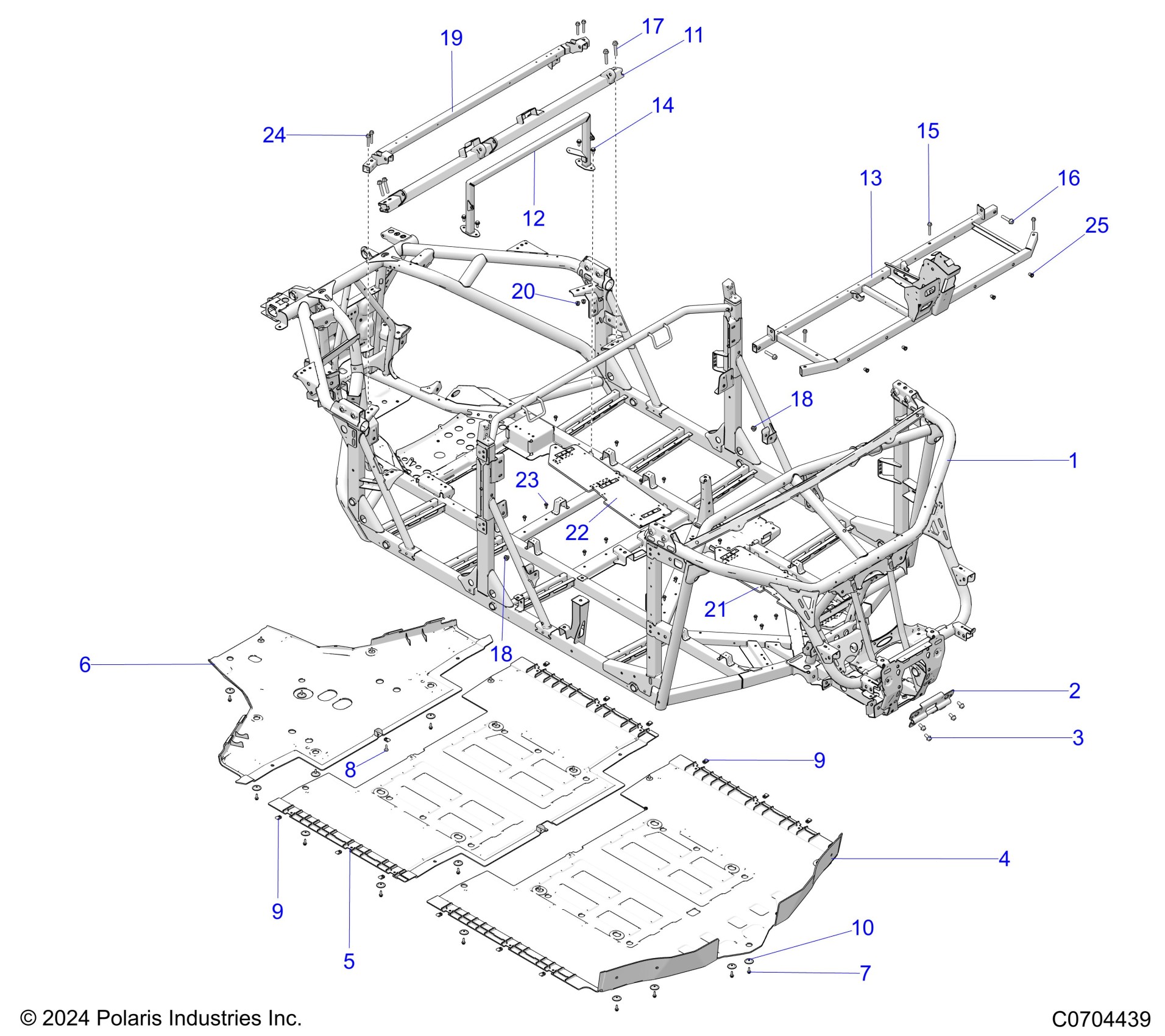

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G25GZW99AB/AP/AK/BB/BP/BK CHASSIS, MAIN FRAME AND SKID PLATES Diagram

K-FRAME,MAIN,XPED,MP

2212036

$4,078.79

WELD-COVER,TOW,BLK

1025545-458

$39.99

SCR-HXFL-M10X1.5X20 10.9 ZFB

7521333-20

$7.19

PLATE-SKID,FRONT,BLK

5456837-070

$303.99

PLATE-SKID,MID,MP,BLK

5456839-070

$199.99

PLATE-SKID,REAR,BLK

5456840-070

$159.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

WASHER-SKID PLATE

7556065

$4.79

WELD-SEAT BASE,REAR,ECOAT

1025549-329

$83.99

WELD-SEAT BASE,SUPPORT,RR,BLK

1025550-329

$65.99

WELD-SEAT BASE,FRONT,ECOAT

1027858-329

$167.99

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

SCR-HXFL-M8X1.25X50 10.9 ZFB

7521332-50

$1.59

SCR-HXFL-M10X1.5X50 10.9 ZFB

7521333-50

$3.73

SCR-HXFL-M10X1.5X55 10.9 ZFB

7521333-55

$7.19

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

WELD-TUBE,CLOSEOFF,MP,ECOAT

1027562-329

$107.99

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

TRAY-ROUTING,LH,BLK

5457276-070

$27.99

TRAY-ROUTING,REAR,BLK

5457599-070

$27.99

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

SCR-HXFL-M8X1.25X55 10.9 ZFB

7521332-55

$3.19

NUT-RIVNUT,HEX,M8X1.25

7548098

$3.19
