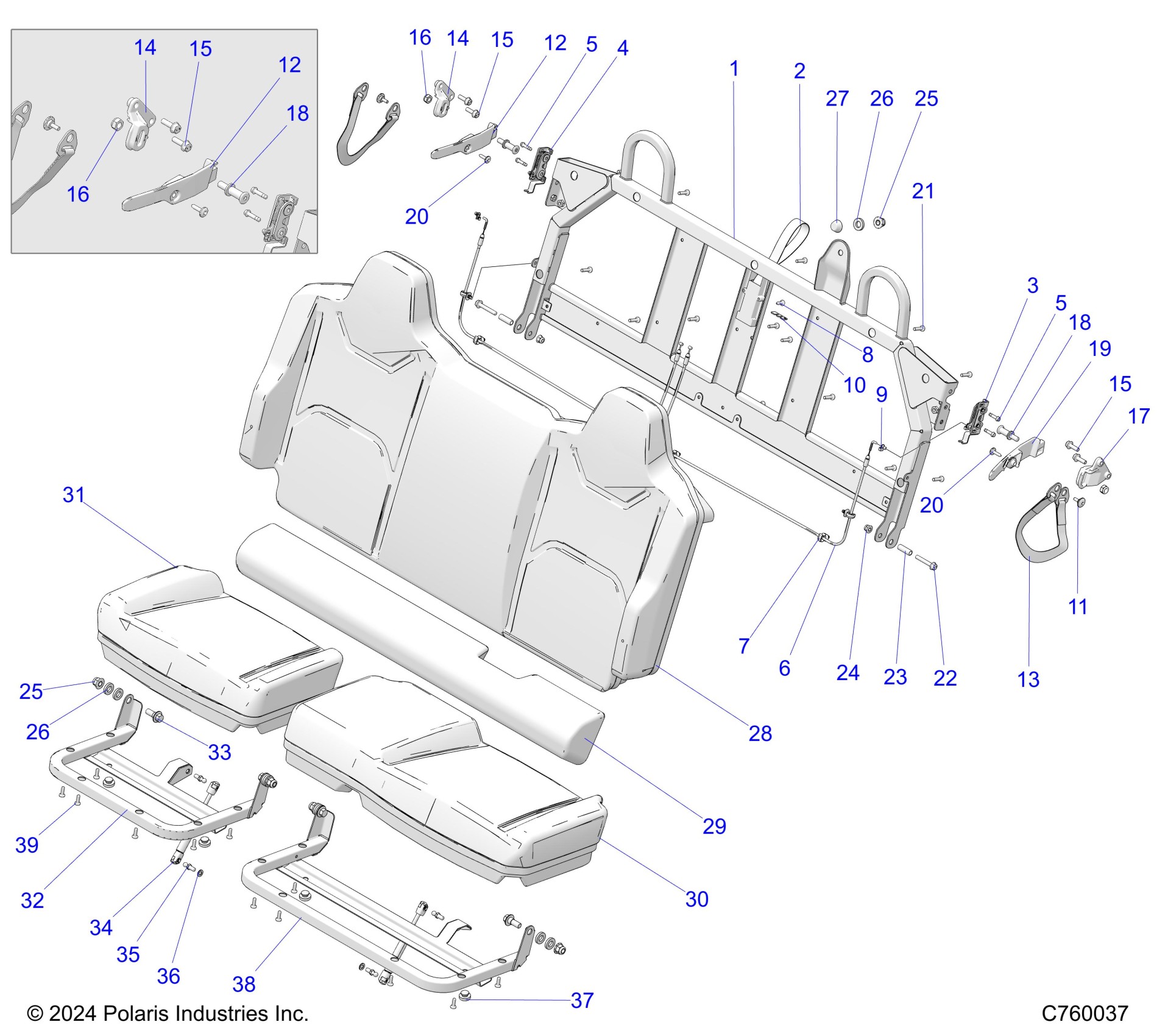

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G25GZW99AB/AP/AK/BB/BP/BK BODY, SEAT ASM., REAR Diagram

#

Description
Price

1

ASM-SEAT,MIDGATE [INCLUDES 1-10]

2637886

$561.59

1

WELD-SEAT,MIDGATE,BLK

1027883-458

$339.99

2

ASM-STRAP,SEAT RELEASE

2638649

$19.99

3

ASM-LATCH,RTRY,2 STG,LH

7082759

$67.99

4

ASM-LATCH,RTRY,2 STG,RH

7082760

$67.99

5

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

5

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

6

CABLE-MIDGATE

7082618

$14.39

7

CLIP-NYLON, C, FIR-TREE

7662310

$4.79

8

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

9

CLIP-DOOR LATCH

5454637

$4.99

10

PLATE-CABLE RETAINER,ECOAT

5272128-329

$5.59

11

SCR-TXTH-M6X1.0X20 ZPB SHDR

7520730

$4.79

12

HOOK-SEAT BELT RETAINER,RH

5466023

$9.59

12

HOOK-SEAT BELT RETAINER,RH

5466023

$9.59

13

ASM-STRAP,SEAT SUPPORT

2692852

$19.99

14

MOUNT-STRIKER,MIDGATE,RH,BLK

5639681-329

$71.99

14

MOUNT-STRIKER,MIDGATE,RH,BLK

5639681-329

$71.99

15

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.73

15

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.73

15

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.73

16

NUT-HEX-M10X1.5 8 ZB3 NYL

7547658

$1.59

16

NUT-HEX-M10X1.5 8 ZB3 NYL

7547658

$1.59

17

MOUNT-STRIKER,MIDGATE,LH,BLK

5639680-329

$71.99

18

PIN-STRIKER,MIDGATE

7663104

$23.99

18

PIN-STRIKER,MIDGATE

7663104

$23.99

19

HOOK-SEAT BELT RETAINER,LH

5466022

$9.59

20

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

20

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

21

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

22

SCR-HXFL-M8X1.25X50 10.9 ZFB

7521332-50

$1.59

23

SPACER-SEAT PIVOT,ECOAT

5144355-329

$8.79

24

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

25

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.19

25

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.19

26

WASHER-SEATBELT,RUBBER

5813829

$1.49

26

WASHER-SEATBELT,RUBBER

5813829

$1.49

27

CAP-BOLT HEAD

5455285

$3.19

28

COVER-SEAT,REAR,FULL,BACK,TTM [COVER ONLY] [AB] [BB] [AK] [BK]

2693427

$159.99

28

COVER-SEAT,REAR,FULL,BACK,OR B [COVER ONLY] [AP] [BP]

2693417

$159.99

29

COVER-SEAT CENTER ROLL,BLK

2692247

Unavailable

29

BUN-SEAT,CENTER ROLL

5815191

Unavailable

30

COVER-SEAT,REAR,60,BTM,TTM,GST [COVER ONLY] [AB] [BB] [AK] [BK]

2693428

$119.99

30

COVER-SEAT,REAR,60,BTM,ORG B,G [COVER ONLY] [AP] [BP]

2693418

Unavailable

31

COVER-SEAT,REAR,40,BTM,TTM,GST [COVER ONLY] [AB] [BB] [AK] [BK]

2693429

$95.99

31

COVER-SEAT,REAR,40,BTM,ORG B,G [COVER ONLY] [AP] [BP]

2693419

Unavailable

32

WELD-SEAT BASE,REAR,40,ECOAT

1025590-329

$111.99

33

SCR-HXFLSH-M12X1.75-M14X9 ZOD

7519770

$4.79

34

SHOCK-GAS,230.20MM

7045867

$43.99

35

BALL-END

7082301

$2.79

36

WSHR-FLAT-M8X1.6 ZTB

7557234

$2.39

37

BUMPER-RUBBER

5412067

$3.99

38

WELD-SEAT BASE,REAR,60,ECOAT

1025589-329

$127.99

39

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99
