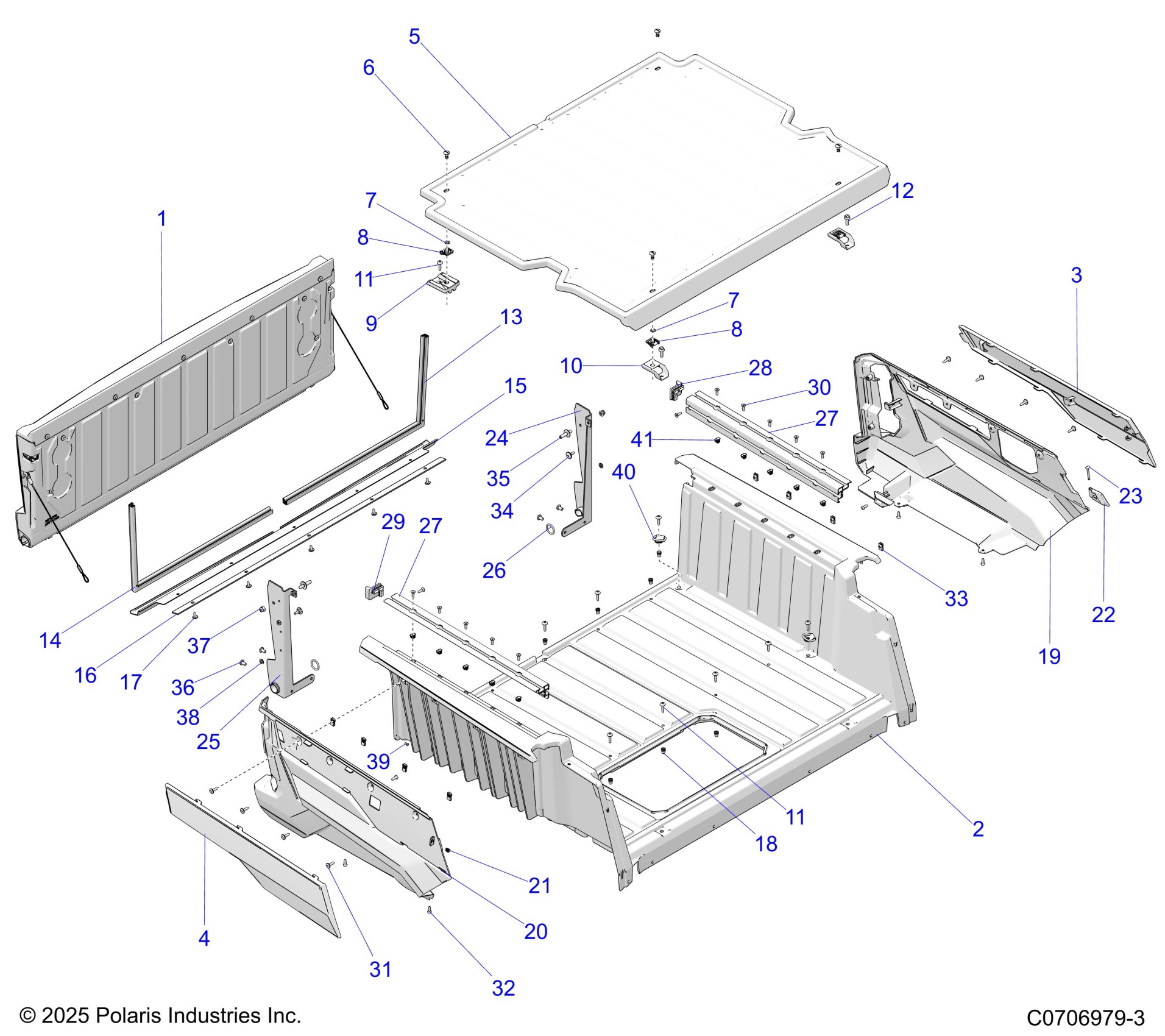

Polaris POLARIS XPEDITION ADV 5 NORTHSTAR (R01) - G25GZW99AB/AP/AK/BB/BP/BK BODY, BOX ASSEMBLY, REAR Diagram

#

Description
Price

1

ASM-TAILGATE,ADV [SEE BODY BOX, TAILGATE ASM.]

-------

Unavailable

2

K-ASM,BOX,CARGO,XPED,ADV,MP [INCLUDES WARNING DECALS]

2212039

$1,209.59

3

PANEL-BOX,TRIM,LH,PNT,M.GREEN [AB] [BB] [MOSS GREEN]

5465129-975

$139.99

3

PANEL-BOX,TRIM,LH,PNT,M.S.GRPH [AK] [BK] [SUPER GRAPHITE]

5465129-894

$139.99

3

PANEL-BOX,TRIM,LH,PNT,MD.BLU [AP [BP] [MIDNIGHT BLUE]

5465129-469

$139.99

4

PANEL-BOX,TRIM,RH,PNT,M.GREEN [AB] [BB] [MOSS GREEN]

5465130-975

$139.99

4

PANEL-BOX,TRIM,RH,PNT,M.S.GRPH [AK] [BK] [SUPER GRAPHITE]

5465130-894

$139.99

4

PNL-BOX,TRM,RH,PNT,MIDNGHTBLUE [AP [BP] [MIDNIGHT BLUE]

5465130-469

$139.99

5

RUBBER-BED,MAT [TO 7/28/2025]

5418421

$163.99

5

RUBBER-BED,MAT [FROM 7/28/2025]

5419230

Unavailable

6

STUD-1/4 TURN,8MM

7663091

$3.99

7

CLIP-RETAINER,1/4 TURN,8MM

7718452

$13.19

7

CLIP-RETAINER,1/4 TURN,8MM

7718452

$13.19

8

CLIP-1/4 TURN,8MM

7718451

$3.99

8

CLIP-1/4 TURN,8MM

7718451

$3.99

9

BRKT-BED,MAT,REAR

5465388

$8.79

10

BRKT-BED,MAT,FRONT

5465389

$8.79

11

SCR-TXTH-M6X1.0X30 T40 ZPB

7520748

$3.99

11

SCR-TXTH-M6X1.0X30 T40 ZPB

7520748

$3.99

12

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.73

13

SEAL-TAILGATE,LH

5526501

$79.99

14

SEAL-TAILGATE,RH

5526502

$79.99

15

TRAY-DRIP,BLK

5274724-458

$91.99

16

SEAL,DRIP-TRAY

5526506

$9.59

17

SCR-M6X1X16 TR/TX-M

7518936

$3.99

18

NUT-RIVNUT,HEX,M6X1.00

7547790

$3.19

19

ASM-PANEL,BOX,OUTER,LH,BLK

2639948-070

$155.99

20

ASM-PANEL,BOX,OUTER,RH,BLK

2639949-070

$155.99

21

CLIP-TRIM, PLASTIC, WHITE

5456313

$1.59

22

PANEL-BOX,LATCH,LH,BLK

5457251-070

$6.39

23

PIN-HINGE,DIN BOX

5451236

$7.91

24

WELD-TAILGATE SUPPORT,LH,BLK

1028843-458

$51.99

25

WELD-TAILGATE SUPPORT,RH,BLK

1028844-458

$51.99

26

O-RING,28.17X3.53,VITON,60A

5418014

$4.79

27

RAIL-BOX,MACH

5144443

$123.99

27

RAIL-BOX,MACH

5144443

$123.99

28

BUMPER-BOX,TAILGATE,LH

5418788

$4.79

29

BUMPER-BOX,TAILGATE,RH

5418789

$4.79

30

SCR-M6X20MM,HXSOC FHCS,BG

7528307

$1.49

31

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

32

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

33

CLIP-U SPEED NUT

7081305

$1.99

34

SCR-TXTH-M6X1.0X20 ZPB SHDR

7520730

$4.79

35

PIN-STRIKER,M8

7663084

$8.79

36

SCR-TXTH-M8X1.25X15 8.8 ZODP30

7520311

$3.99

37

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

38

WSHR-FLAT-M8X1.6 ZTB

7557234

$2.39

39

SCR-#8-32X.375",TORX,TRI-S

7518256

$2.39

40

RING,TIEDOWN 700087

7081195

$11.19

41

NUT-PAL NUT,M6

7548058

$3.99
