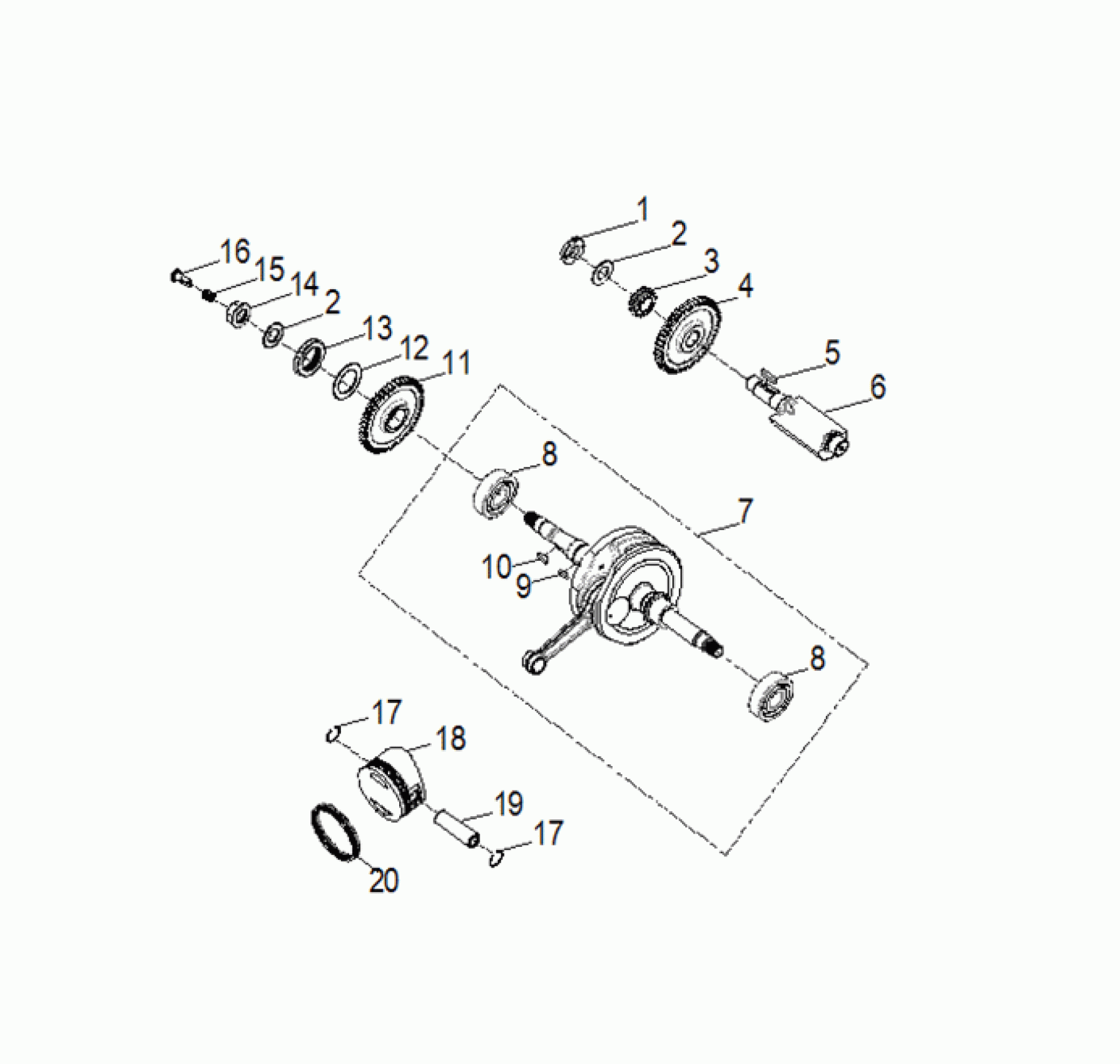

Polaris PHOENIX 200 (R03 - A18YAP20A8 ENGINE, CRANKSHAFT and PISTON - A18YAP20A8 (A00035) Diagram

#

Description
Price

1

NUT, LOCK

0452438

$7.19

2

WASHER

0450264

$3.99

2

WASHER

0450264

$3.99

3

SPROCKET, OIL PUMP

0452436

$39.99

4

GEAR, BALANCE, DRIVEN

0452437

$71.99

5

KEY, WOODRUFF

0452439

$7.99

6

Shaft, Balance

0452435

$67.99

7

ASM., CRANKSHAFT [INCL. 8,9,10]

0453020

$690.79

8

BEARING

0452427

$47.99

8

BEARING

0452427

$47.99

9

Key, Woodruff

0452430

$6.65

10

KEY, WOODRUFF

0452429

$5.59

11

Gear, Balance

0452434

$83.99

12

Washer, Gear

0452440

$4.79

13

Nut, Lock

0452441

$7.19

14

Nut, Flange

0452442

$7.99

15

Spring, Oil

0452444

$4.79

16

TUBE, OIL, CRANKSHAFT

0452445

Unavailable

17

Clip, Piston Pin

0452443

$3.99

17

Clip, Piston Pin

0452443

$3.99

18

Piston

0452432

$103.99

19

Pin, Piston

0452433

$23.99

20

Ring

0452431

$59.99
