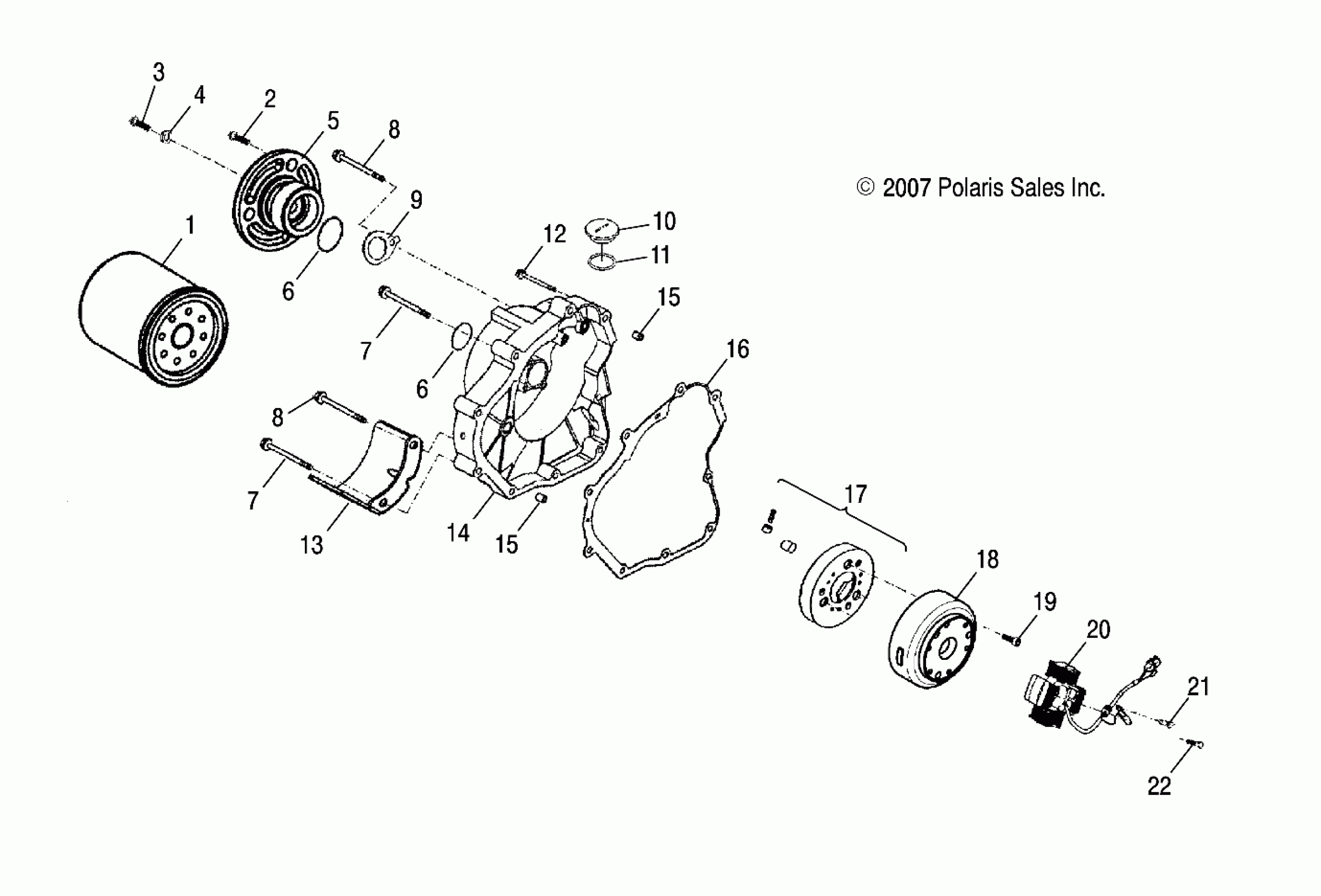

Polaris PHOENIX 200 (R03 - A18YAP20A8 ENGINE, CRANKCASE COVER, RH - A18YAP20A8 (49ATVCRANKCASECVRRH09PHX) Diagram

#

Description
Price

1

FILTER, OIL

0452462

Unavailable

2

BOLT

0452413

$3.99

3

BOLT

0452463

$3.99

4

WASHER, FLAT, COPPER

0452464

$3.99

5

CAP, COVER, RH

0452458

$39.99

6

O-RING

0453777

$2.79

6

O-RING

0453777

$2.79

7

BOLT

0452401

$4.79

7

BOLT

0452401

$4.79

8

BOLT

0452330

$3.99

8

BOLT

0452330

$3.99

9

RETAINER, SIGHT GLASS

0452637

$7.99

10

CAP

0452460

$8.79

11

O-RING

0452461

$1.59

12

BOLT

0452343

$3.99

13

SHIELD

0452636

$10.39

14

COVER, CRANKCASE, RH

0452446

$227.99

15

PIN, DOWEL

0452342

$3.99

15

PIN, DOWEL

0452342

$3.99

16

GASKET-COVER,CRANK

0455349

$11.19

17

ASM., ONE WAY CLUTCH

0452450

$103.99

18

ASM., FLYWHEEL

0454946

$295.99

19

BOLT

0452457

$27.99

20

ASM., STATOR

0454947

$409.49

21

BOLT W/WASHER

0453029

$4.79

22

SCREW

0452456

$3.19
