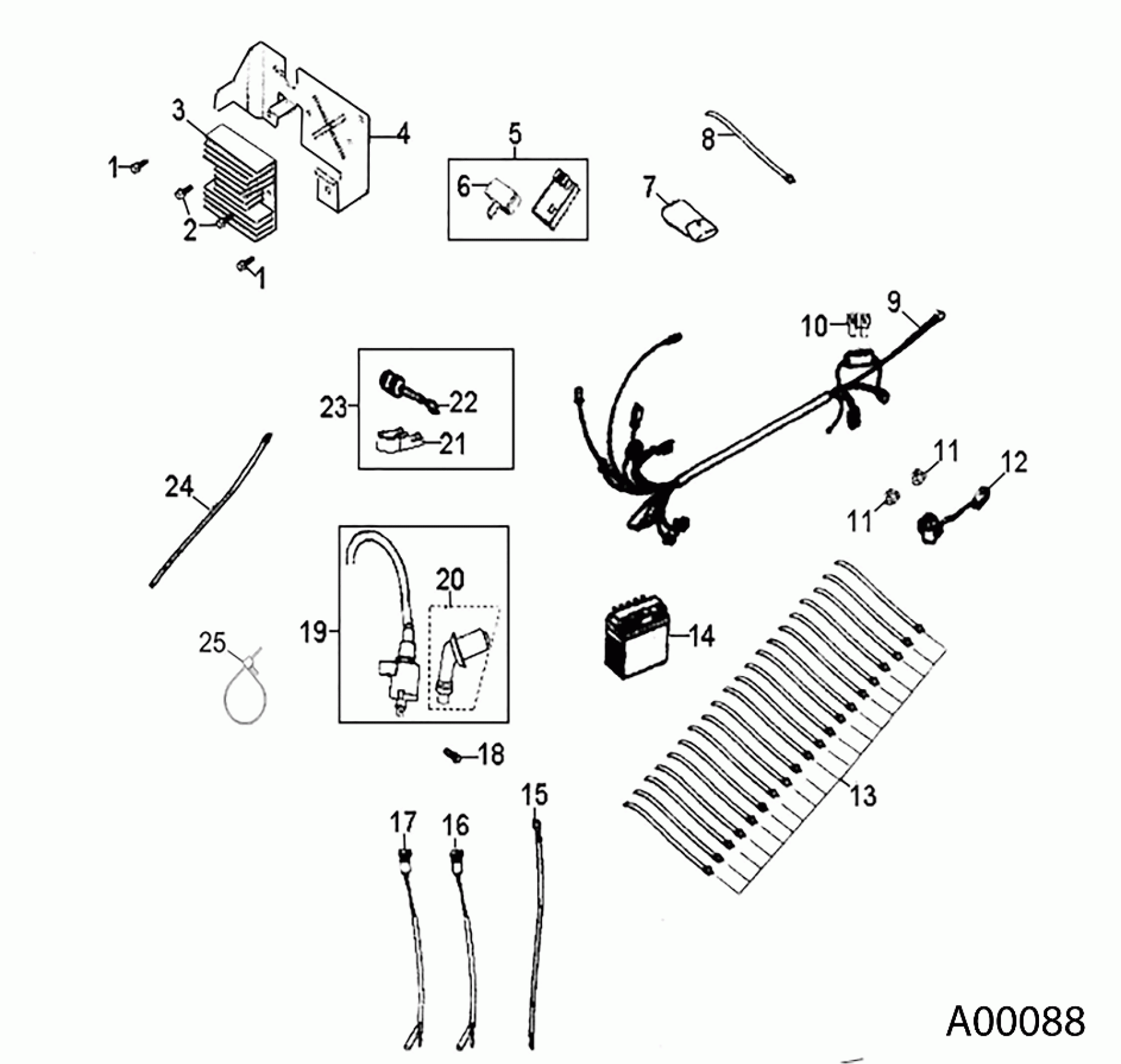

Polaris PHOENIX 200 (R03 - A18YAP20A8 ELECTRICAL PARTS - A18YAP20A8 (A00088) Diagram

#

Description
Price

-

KEY, BLANK, LH [NOT PICTURED]

0453372

$32.37

-

KEY, BLANK, RH [NOT PICTURED]

0453143

$14.56

1

Bolt

0452917

$3.97

1

Bolt

0452917

$3.97

2

Bolt

0450701

$1.19

3

Rectifier/ Regulator

0455311

$124.92

4

Braket, Electrical

0452764

$71.10

5

Asm., CDI Unit [INCL. 6]

0455259

$343.71

6

PAD, RUBBER

0453473

$24.27

7

Pouch, Tool

0454245

$65.46

8

STRAP

0450721

$3.22

9

Harness, Main Wire

0455296

$314.99

10

Fuse

0452744

$4.99

11

Nut

0450150

$1.19

11

Nut

0450150

$1.19

12

Starter Relay

0452761

$97.76

13

STRAP

0450559

$2.41

14

Battery [TO 7/1/2024]

0455167

$114.27

14

BATTERY-AEON,RZR170 [FRM 7/1/2024]

0455526

$114.27

15

ASM., BATTERY CABLE

0452767

$53.32

16

INDICATOR, NEUTRAL

0454669

$32.37

17

INDICATOR, REVERSE

0454670

$24.27

18

BOLT

0452763

$3.17

19

ASM., IGNITION COIL

0452309

$119.98

20

CAP, SPARK PLUG

0453364

$36.41

21

Clip, Main Switch

0450886

$5.56

22

SWITCH, MAIN

----

Unavailable

23

Asm., Switch, Main [INCL. 21,22,26,27]

0455547

$89.99

24

Wire

0453144

$32.37

25

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.22
