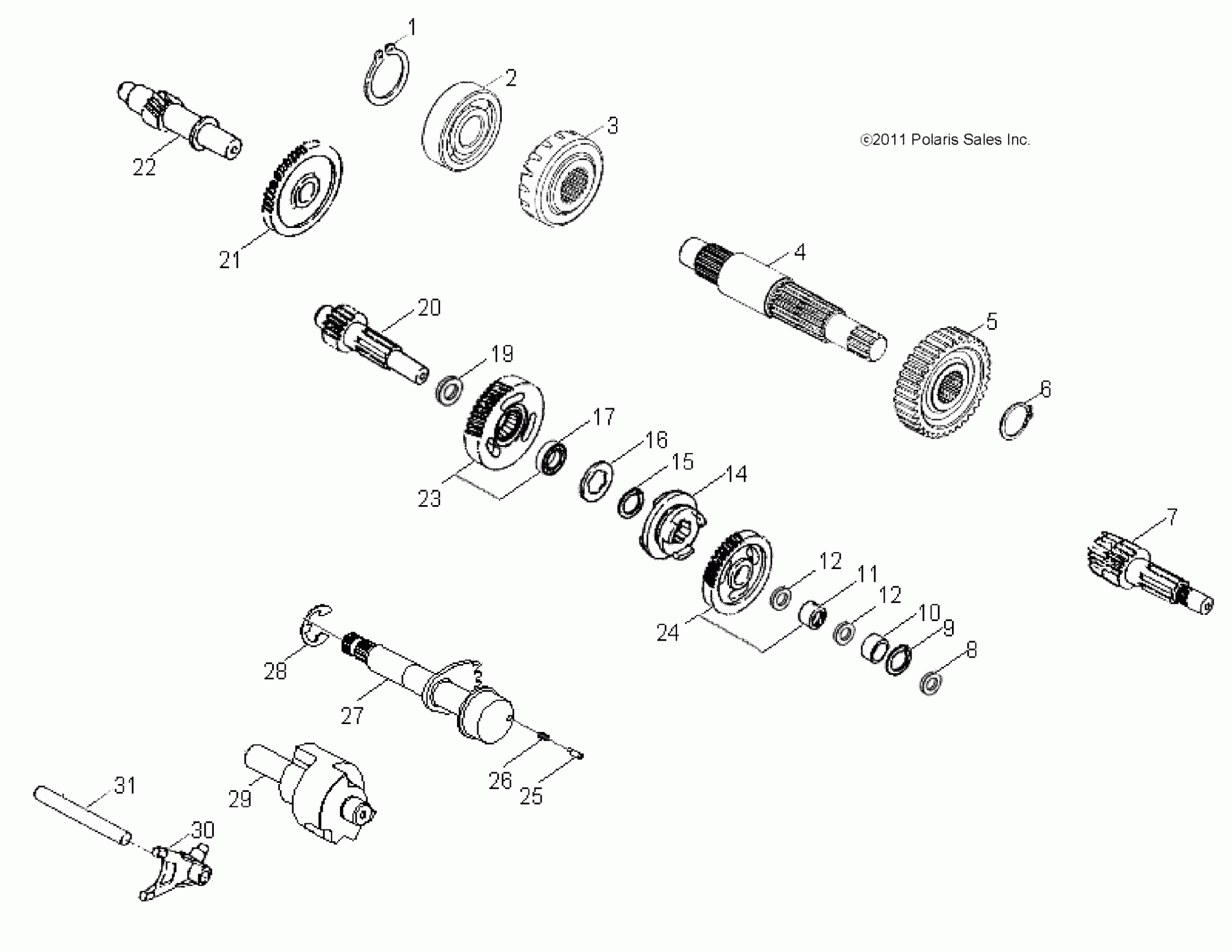

Polaris PHOENIX 200 (R03 - A18YAP20A8 DRIVE TRAIN, TRANSMISSION - A18YAP20A8 (49ATVTRANSMISSION12PHX) Diagram

#

Description
Price

1

RING, RETAINER

0452339

$3.99

2

BEARING, BALL

0452349

$35.99

3

GEAR, FINAL RING

0452531

$103.99

4

SHAFT

0452528

$91.99

5

GEAR

0452530

$103.99

6

CLIP, CIR

0453779

$4.79

7

SHAFT, DRIVE

0452525

$91.99

8

WASHER, FLAT

0452524

$3.99

9

CLIP, CIR

0450187

$3.99

10

COLLAR, SHAFT

0453120

$23.99

11

BUSHING

0452516

$6.15

12

WASHER, FLAT

0452513

$4.79

12

WASHER, FLAT

0452513

$4.79

14

RATCHET, SHIFT

0452517

$83.99

15

CLIP, CIR

0452789

$5.59

16

WASHER, SPLINE

0452518

$7.99

17

BEARING, NEEDLE

0452521

$15.99

19

WASHER, FLAT

0452522

$10.39

20

SHAFT, TRANSMISSION

0453551

$95.99

21

GEAR, COUNTER

0452527

$103.99

22

SHAFT, COUNTER

0452526

$79.99

23

ASM., REVERSE GEAR [INCL. 17]

0452519

$135.99

24

ASM., SPUR GEAR [INCL. 11,12]

0454229

$83.99

25

SPRING, DRUM SENSOR

0452163

$7.19

26

ROLLER, DRUM SENSOR

0452162

$3.99

27

SPINDLE, TRANSMISSION

0454230

$87.99

28

E-CLIP

0452161

$3.99

29

ASM., DRUM GEAR SHIFT

0454231

$139.99

30

FORK, SHIFT

0452157

$59.99

31

SHAFT, GEAR SHIFT

0452158

$8.79
