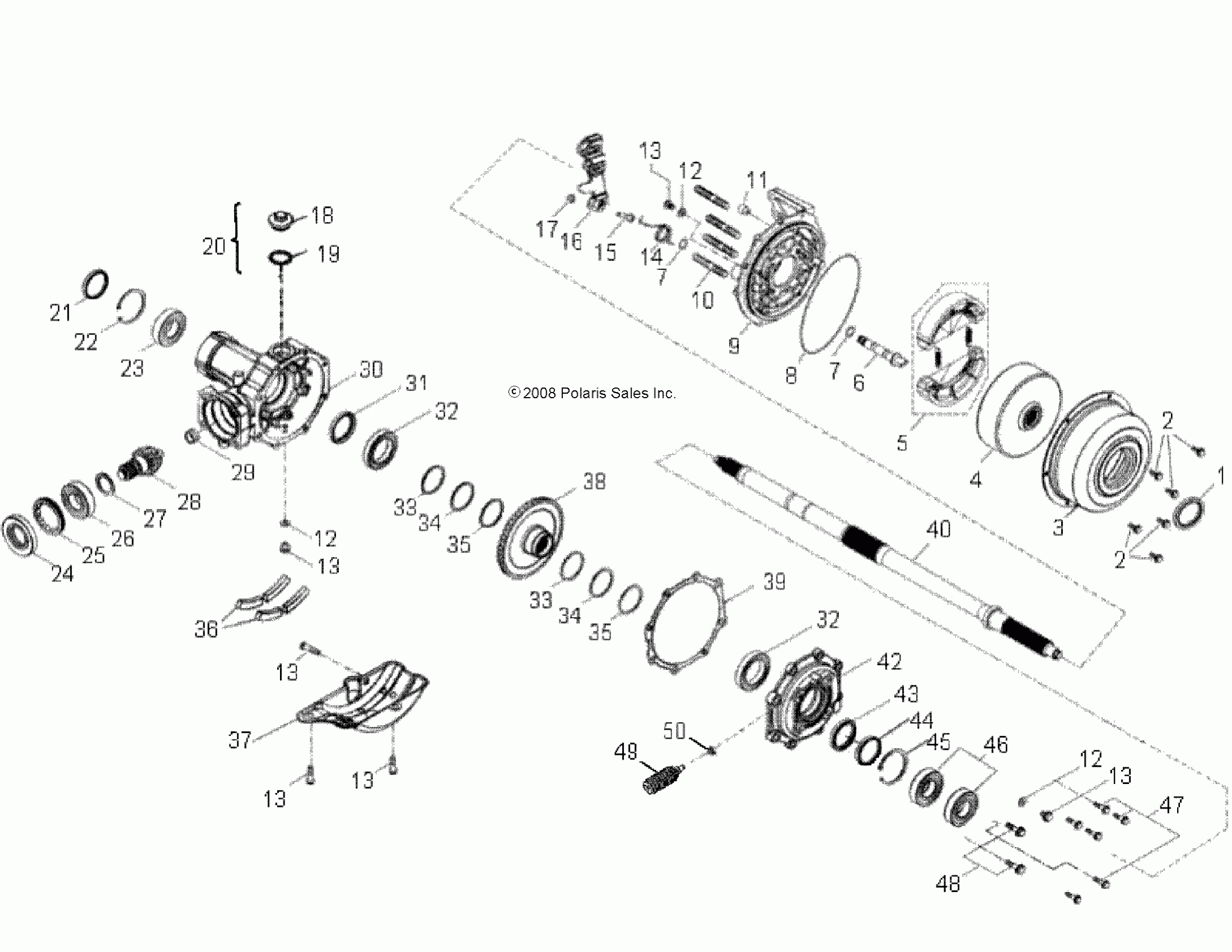

Polaris PHOENIX 200 (R01) - A25YPA20A4 WHEELS, REAR AXLE - A25YPA20A4 (49ATVAXLE09PHX) Diagram

#

Description
Price

1

SEAL

0452700

$19.99

2

BOLT

0452720

$3.99

2

BOLT

0452720

$3.99

3

Cover, Rear, Brake Drum, Black

0452701-067

$83.99

4

DRUM-BRAKE PHOENIX

0455456

$139.99

5

ASM-BRAKE SHOE,REAR-PHOENIX

0455316

$39.99

6

SHAFT, BRAKE, REAR

0452706

$43.99

7

O-RING

0452708

$1.49

7

O-RING

0452708

$1.49

8

O-RING

0452710

$4.79

9

PLATE, BRAKE

0452711

$127.99

10

STUD, BOLT

0452714

$6.39

11

CAP, RUBBER

0452775

$2.39

12

Washer, Aluminum, Plain

0452712

$3.99

12

Washer, Aluminum, Plain

0452712

$3.99

12

Washer, Aluminum, Plain

0452712

$3.99

13

Bolt, Hex, Washer Face

0452126

$4.79

13

Bolt, Hex, Washer Face

0452126

$4.79

13

Bolt, Hex, Washer Face

0452126

$4.79

13

Bolt, Hex, Washer Face

0452126

$4.79

13

Bolt, Hex, Washer Face

0452126

$4.79

13

Bolt, Hex, Washer Face

0452126

$4.79

14

SPRING

0452722

$7.19

15

Bolt, Hex, Flange

0451704

$3.99

16

ARM, BRAKE, REAR

0452724

$43.99

17

Nut, Hex, Flange

0450150

$1.49

18

Plug, Drain, Oil

0452368

$23.99

19

O-RING, DRAIN PLUG

0452371

$1.59

20

ASM., CAP [INCL. 18,19]

0452754

$10.39

21

SEAL, OIL

0452752

$15.99

22

RETAINER

0452717

$10.39

23

BEARING

0453803

$47.99

24

SEAL, OIL

0452745

$15.99

25

NUT

0452743

$27.99

26

BEARING

0452742

$35.99

27

SHIM

0452741

$12.79

28

GEAR, PINION

0452740

$135.99

29

BEARING, NEEDLE

0452739

$59.99

30

GEARCASE

0453148

$303.99

31

SEAL, OIL

0452737

$11.99

32

BEARING

0452730

$35.99

32

BEARING

0452730

$35.99

33

SHIM

0452734

$5.59

33

SHIM

0452734

$5.59

34

SHIM

0452733

$5.59

34

SHIM

0452733

$5.59

35

SHIM

0452732

$5.59

35

SHIM

0452732

$5.59

36

SPACER, RUBBER

0452756

$8.79

37

PLATE, GEARCASE, BLACK

0452757-067

$79.99

38

GEAR, RING

0452736

$311.99

39

GASKET-COVER

0455496

$10.39

40

AXLE

0452751

$303.99

42

Cover, Gearcase, Final

0453147

$151.99

43

SEAL, OIL

0452726

$11.99

44

O-RING

0452718

$1.99

45

RETAINER

0452717

$10.39

46

BEARING

0453803

$47.99

47

BOLT

0452749

$3.19

48

BOLT

0452747

$4.79

49

BELLOWS, DIFFERENTIAL

0454105

$12.79

50

CLAMP, HOSE

0453693

$4.79
