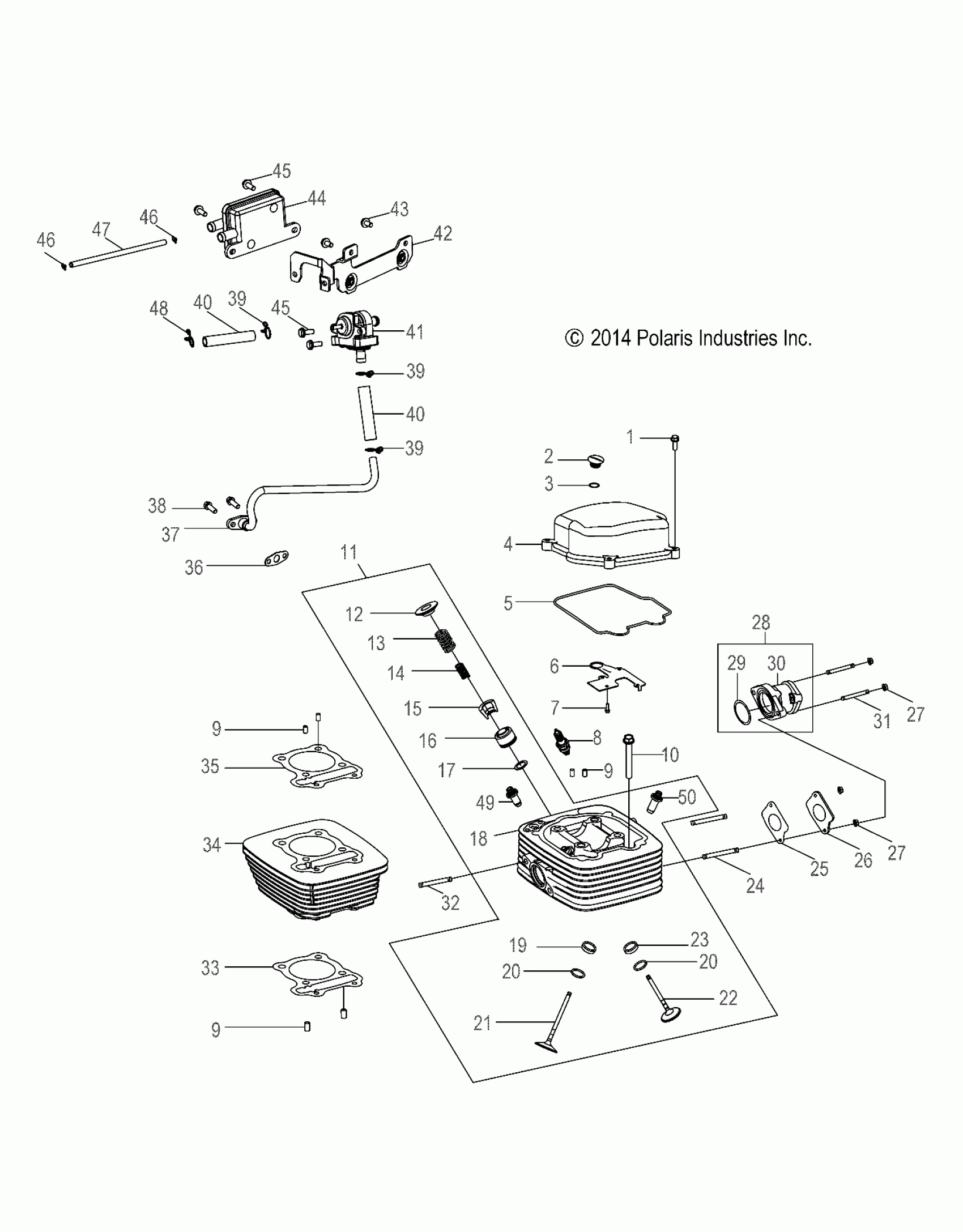

Polaris PHOENIX 200 (R01) - A25YPA20A4 ENGINE, CYLINDER HEAD - A25YPA20A4 (49ATVCYLINDERHD15PHX) Diagram

#

Description
Price

-

ASM-ENG,15 PHOENIX,W/O CARB

0455393

$1,940.39

1

BOLT, FLANGE

0452400

$3.99

2

CAP, HEAD COVER

0452393

$7.99

3

O-Ring, Head Cover Cap

0452394

$1.59

4

COVER-CYLINDER HEAD

0455350

$95.99

5

GASKET-CYL HEAD

0452392

$23.99

6

BREATHER, CRANKCASE, LOWER

0453751

$12.79

7

SCREW, TAPPING

0451766

$3.19

8

SPARK PLUG NGK CR7HSA

3023835

$8.79

9

PIN, DOWEL

0450142

$3.99

9

PIN, DOWEL

0450142

$3.99

9

PIN, DOWEL

0450142

$3.99

10

BOLT

0452401

$4.79

11

ASM., HEAD, CYLINDER, QUAD [INCL. 12-23,50]

0454847

$457.59

12

RETAINER, VALVE, SPRING

0452387

$23.99

13

SPRING, VALVE, OUTER

0452385

$7.99

14

SPRING, VALVE, INNER

0452386

$6.39

15

CLIP, RETAINER

0452389

$7.19

16

SEAL, VALVE

0452390

$8.79

17

WASHER, VALVE, SPRING, OUTER

0452388

$6.39

18

HEAD, CYLINDER, QUAD

0452844

$118.79

19

SEAT, INTAKE

0452378

$27.99

20

O-RING

0452382

$1.59

20

O-RING

0452382

$1.59

21

VALVE, INTAKE

0452383

$79.99

22

VALVE, EXHAUST

0452384

$63.99

23

SEAT, EXHAUST

0452379

$23.99

24

BOLT, STUD

0452399

$4.35

25

GASKET-MANIFOLD

0455492

$4.79

26

INSULATOR, MANIFOLD

0452404

$12.79

27

NUT, FLANGE, HEX

0450880

$3.99

27

NUT, FLANGE, HEX

0450880

$3.99

28

Asm., Manifold, Intake [INCL. 29,30]

0452311

$63.99

29

O-RING

0452397

$1.59

30

MANIFOLD

-------

Unavailable

31

BOLT, STUD

0452405

$3.99

32

BOLT, STUD

0452398

$3.99

33

GASKET-CYLINDER

0455491

$9.59

34

CYLINDER

0452375

$271.99

35

GASKET-CYLINDER

0455351

$55.99

36

GASKET-AIR INJECTION

0455377

$2.79

37

ASM., TUBE, AIR INJECTION

0452807

$39.99

38

BOLT, HEX, FLANGE

0452413

$3.99

39

Clip

0452795

$3.99

39

Clip

0452795

$3.99

39

Clip

0452795

$3.99

40

HOSE, RUBBER

0455073

$4.79

40

HOSE, RUBBER

0455073

$4.79

41

VALVE, INTAKE, DUAL

0452810

$119.99

42

BRACKET, AIR, INTAKE

0452812

$39.99

43

BOLT, W/LOCTITE

0454785

$3.99

44

ASM., VALVE, AIR INTAKE

0452811

$63.99

45

BOLT, HEX WASHER

0454011

$3.99

45

BOLT, HEX WASHER

0454011

$3.99

46

CLIP, HOSE, VACUUM

0452814

$3.99

46

CLIP, HOSE, VACUUM

0452814

$3.99

47

HOSE-VACUUM,ENGINE

0455525

$3.99

48

CLIP, OIL SEPARATOR

0453516

$3.99

49

GUIDE, VALVE INTAKE

0452380

$23.99

50

GUIDE, VALVE EXHAUST

0452381

$23.99
