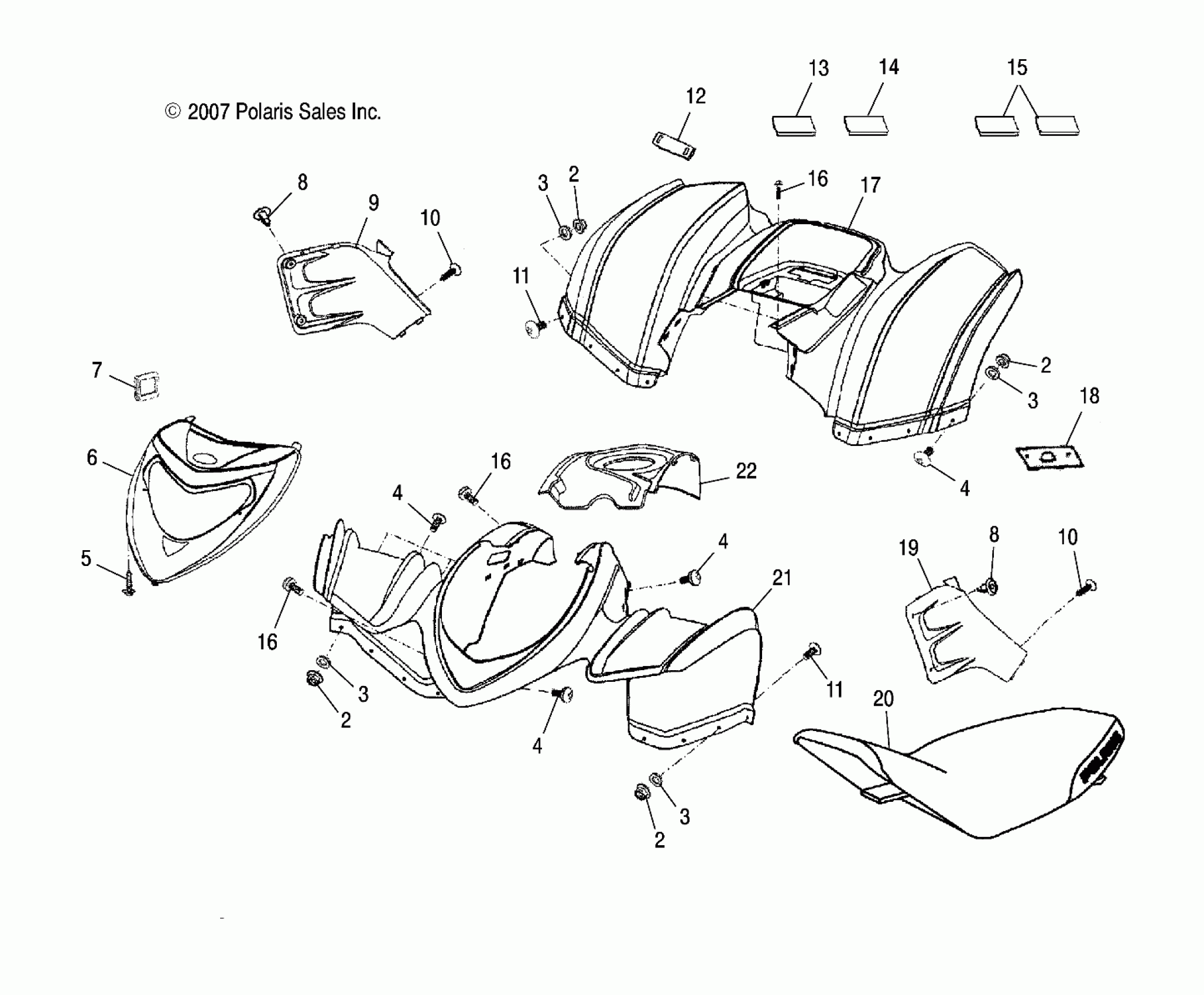

Polaris PHOENIX 200 (R01) - A25YPA20A4 BODY, CAB and SEAT - A25YPA20A4 (49ATVCAB09PHX) Diagram

#

Description
Price

2

Nut, Nylon Lock

0450741

$3.19

2

Nut, Nylon Lock

0450741

$3.19

2

Nut, Nylon Lock

0450741

$3.19

2

Nut, Nylon Lock

0450741

$3.19

3

Washer, Plain

0450710

$1.49

3

Washer, Plain

0450710

$1.49

3

Washer, Plain

0450710

$1.49

3

Washer, Plain

0450710

$1.49

4

Bolt, Hex, Washer Face

0450824

$2.39

4

Bolt, Hex, Washer Face

0450824

$2.39

4

Bolt, Hex, Washer Face

0450824

$2.39

4

Bolt, Hex, Washer Face

0450824

$2.39

5

Screw, Tapping

0450040

$3.19

6

ASM., COVER, HEADLIGHT, BLACK

0454001-070

$75.99

7

Boot, Shift, Rubber

0452662

$23.99

8

RIVET, PLASTIC

0451076

$1.49

8

RIVET, PLASTIC

0451076

$1.49

9

PANEL, SIDE, RH, BLACK

0452653-070

$147.99

10

Screw, Tapping w/Washer

0451703

$3.99

10

Screw, Tapping w/Washer

0451703

$3.99

11

Bolt, Pan, Phillips

0450622

$2.39

11

Bolt, Pan, Phillips

0450622

$2.39

12

STRAP, BATTERY, RUBBER

0452660

$8.79

13

PAD, RUBBER, BATTERY

0452778

$19.99

14

Rubber, Battery

0450346

$2.39

15

PAD, RUBBER, BATTERY

0452779

$19.99

16

BOLT, HEX

0452215

$3.99

16

BOLT, HEX

0452215

$3.99

16

BOLT, HEX

0452215

$3.99

17

ASM-CAB,REAR,PHOENIX,GRAY

0455453-927

$319.99

18

Pad, Protector

0450345

$39.99

19

PANEL, SIDE, LH, BLACK

0452651-070

$147.99

20

SEAT, BLACK

0453083

$409.49

21

ASM-CAB,FRONT,GRAY

0454829-927

$428.99

22

COVER, FUEL TANK, BLACK

0453800-070

$107.99
