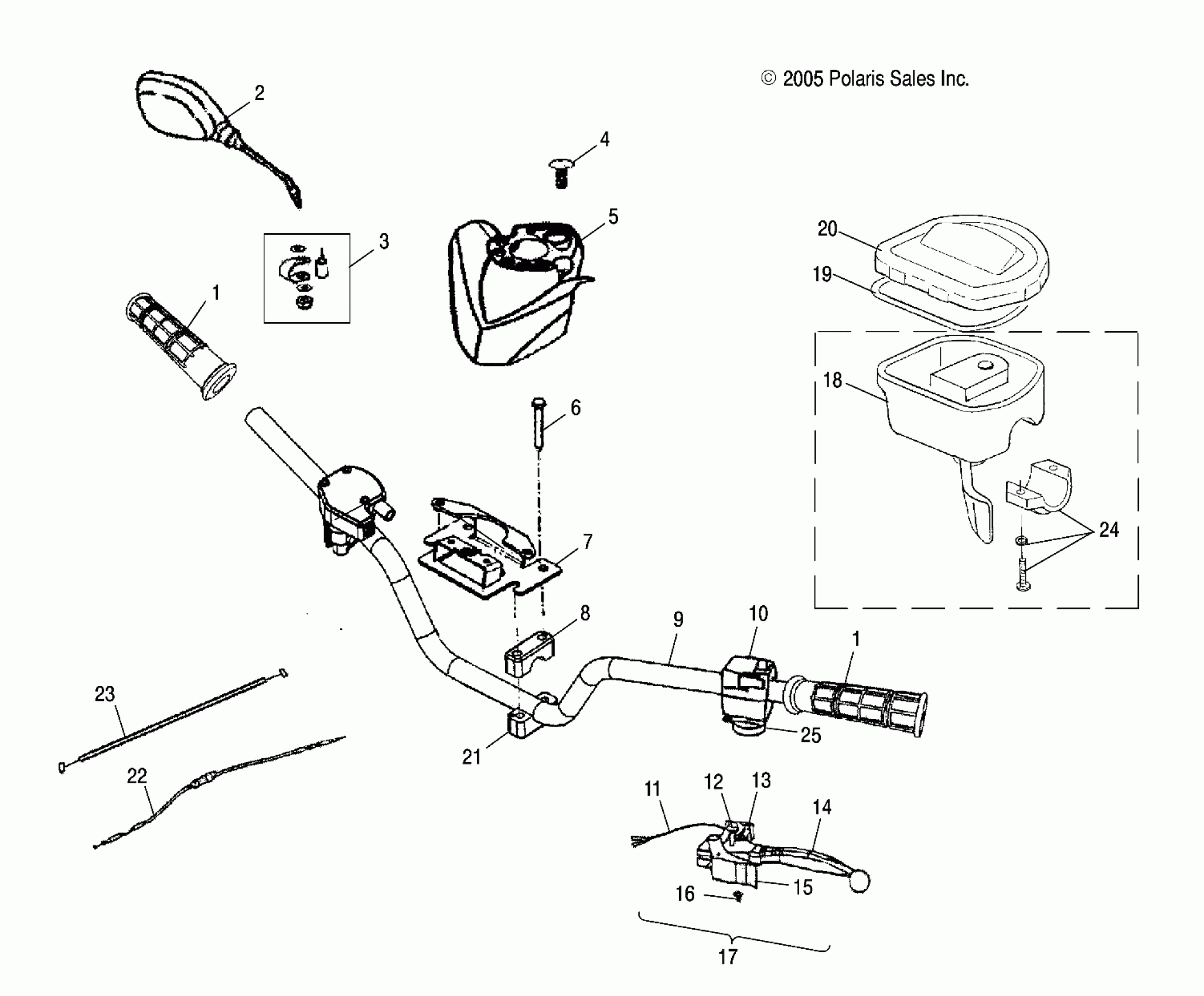

Polaris PHOENIX 200 QUADRICYCLE - A06PB20EA HANDLEBAR - A06PB20EA/EB (4999202509920250C02) Diagram

#

Description
Price

1

GRIP, HANDLEBAR

0453370

$28.32

1

GRIP, HANDLEBAR

0453370

$28.32

2

Mirror, LH

0452894

Unavailable

2

Mirror, RH

0452895

Unavailable

3

Kit, Mirror, Rear View

0452896

$19.60

4

Bolt

0450667

$5.56

5

Pod, Handlebar, Black

0452892-070

Unavailable

6

Bolt

0452699

Unavailable

7

Bracket, Pod

0452893

$29.51

8

CLAMP, HANDLEBAR, UPPER

0452688

$34.90

9

Asm., Handlebar

0453105

Unavailable

10

Asm., Switch, LH

0452891

$189.99

11

Sensor, Brake

0450836

$37.99

12

BOLT, BRAKE LEVER

0450807

$7.14

13

Cam, Brake Lock

0453086

$38.10

14

Lever, Brake, LH

0450693

$28.32

15

Lock, Brake, Hand

0450692

Unavailable

16

NUT

0450808

$2.38

17

Asm., Brake Lever, LH

0452914

Unavailable

18

Control, Throttle

2010204

$59.52

19

O-RING

5411439

$2.41

20

COVER, THROTTLE CONTROL

5434113

$36.41

21

CLAMP, HANDLEBAR, LOWER

0452685

$34.90

22

CABLE, THROTTLE

0453099

$52.60

23

Choke, Cable, Manual

0452697

$48.56

24

ASM-THROTTLE CLAMP

2010191

$36.41

25

Asm., Choke, Manual

0451037

$40.46
