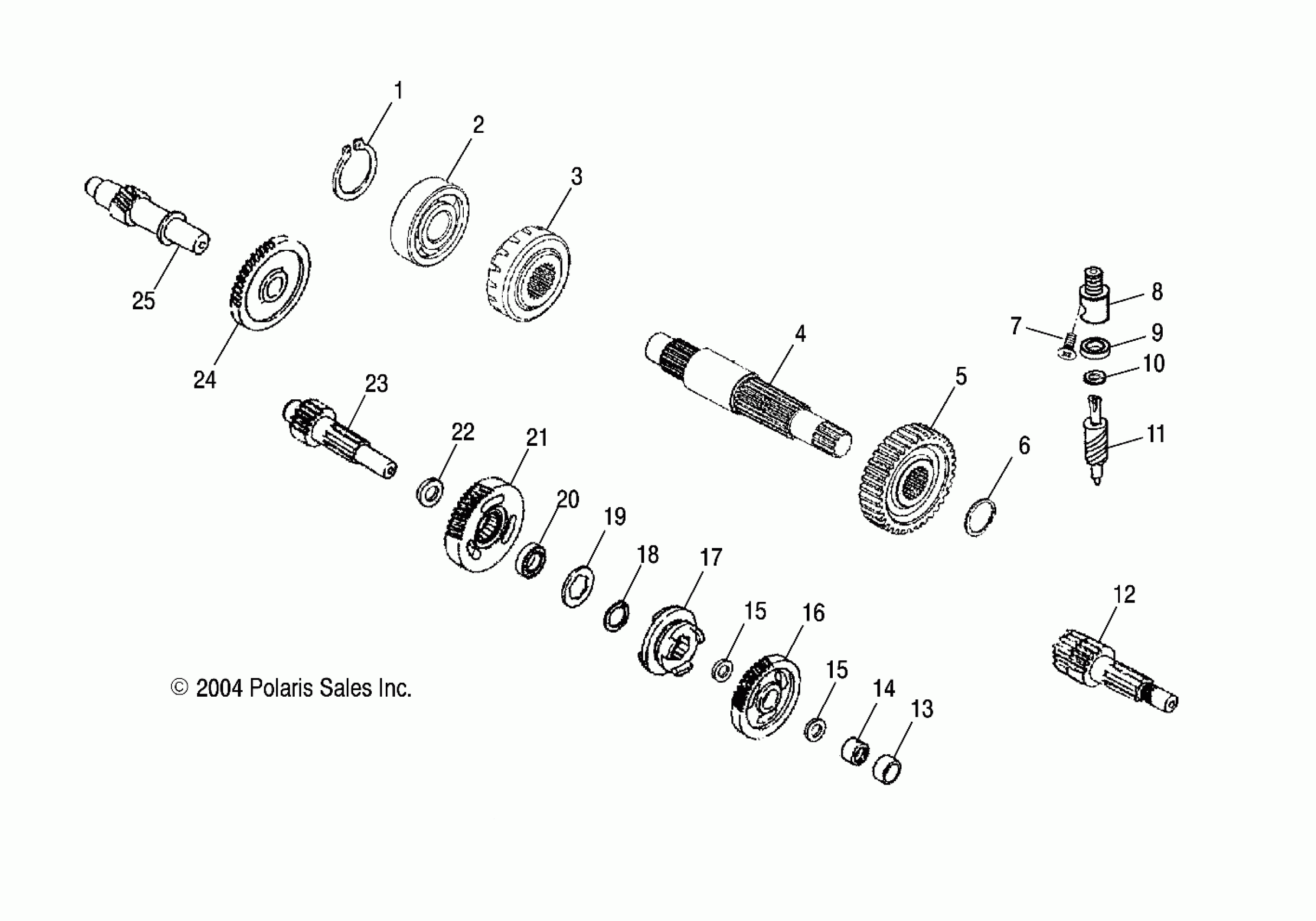

Polaris PHOENIX 200 QUADRICYCLE - A05PB20EA TRANSMISSION - A05PB20EA/EB/EC/ED (4999709970A14) Diagram

#

Description
Price

-

Asm., Reverse Gear [Incl. 20,21]

0452519

$145.70

-

Asm., Spur Gear [Incl. 14,16]

0452514

$97.76

1

Ring, Retainer

0452789

$6.10

2

BEARING, BALL

0452349

$35.71

3

GEAR, FINAL RING

0452531

$119.98

4

SHAFT

0452528

$93.08

5

GEAR

0452530

$119.98

6

CLIP, CIR

0452529

$1.73

7

Bolt, Phillips, Flat Head

0452851

$0.79

8

Joint, Gear

0452850

$29.05

9

Seal, Oil

0452849

$5.71

10

Washer, Plain

0452848

$0.63

11

Gear, Meter

0452847

$42.65

12

SHAFT, DRIVE

0452525

$114.99

13

Collar, Shaft

0452512

Unavailable

14

BUSHING

0452516

$6.64

15

WASHER, FLAT

0452513

$5.22

15

WASHER, FLAT

0452513

$5.22

16

Gear, Spur

0452515

$97.76

17

RATCHET, SHIFT

0452517

$89.03

18

CLIP, RETAINER

0452339

$3.97

19

WASHER, SPLINE

0452518

$9.99

20

BEARING, NEEDLE

0452521

$18.99

21

Gear, Reverse

0452520

$80.94

22

WASHER, FLAT

0452522

$10.32

23

Shaft, Transmission

0452523

$94.99

24

GEAR, COUNTER

0452527

$109.27

25

SHAFT, COUNTER

0452526

$88.87
