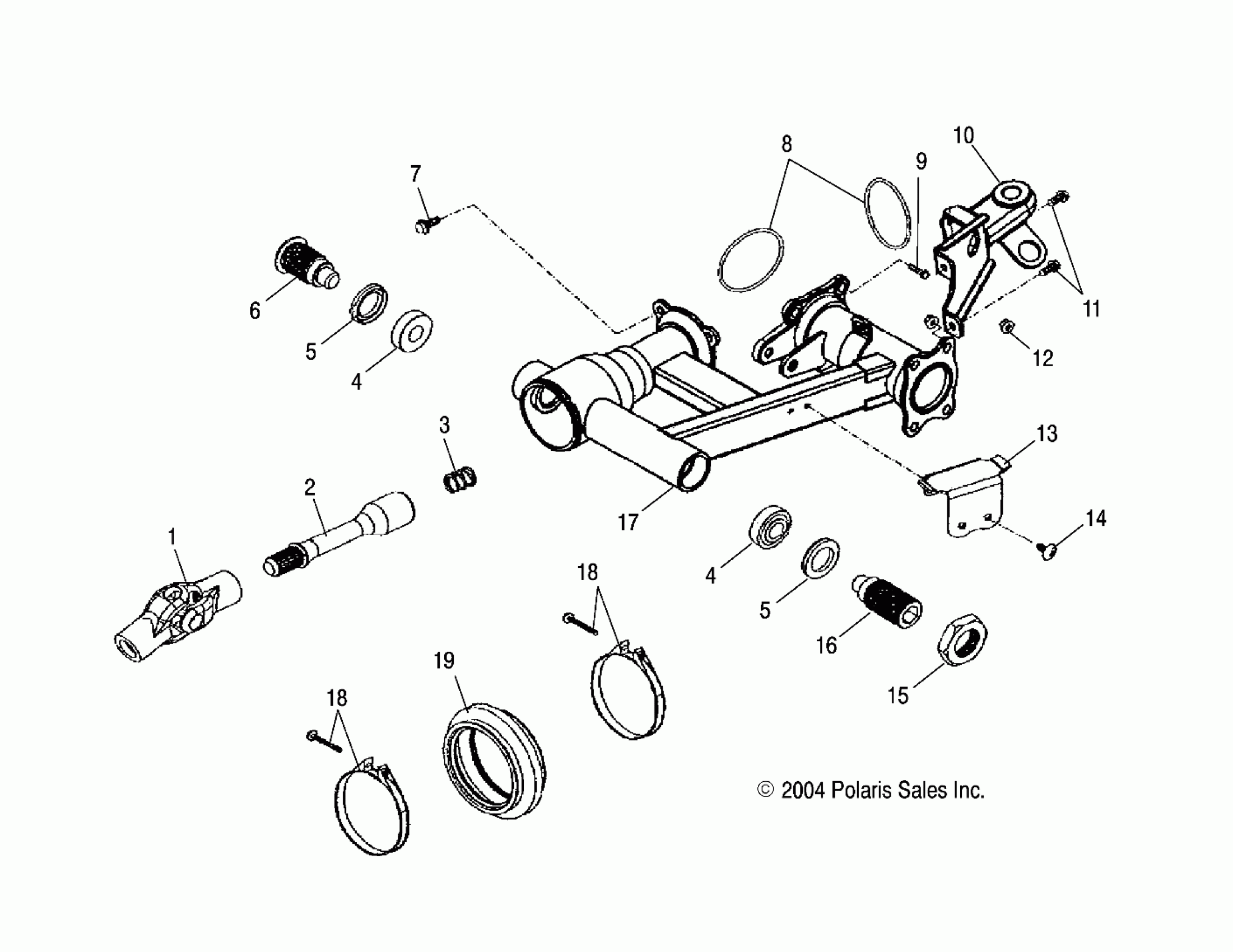

Polaris PHOENIX 200 QUADRICYCLE - A05PB20EA SWING ARM, REAR - A05PB20EA/EB/EC/ED (4999709970B06) Diagram

Description

Price

JOINT, UNIVERSAL

0452607

$219.99

SHAFT, DRIVE

0452606

$83.99

SPRING

0452605

$7.19

BEARING

0452608

$63.99

BEARING

0452608

$63.99

SEAL, OIL

0452609

$19.99

SEAL, OIL

0452609

$19.99

BOLT, PIVOT

0452610

$67.99

BOLT

0452614

$3.99

O-RING

0452613

$2.79

BOLT

0452615

$4.79

Bracket, Trailer Hook

0452861

Unavailable

Bolt, Hex w/Spring Washer

0452858

$1.49

Nut, Lock

0450882

Unavailable

Retainer, Brake Line

0452860

$3.30

Screw, Tapping

0451703

$3.99

NUT, LOCK

0452612

$23.99

BOLT, PIVOT

0452611

$35.99

Arm, Swing

0452859

$200.79

CLAMP

0452617

$10.39

CLAMP

0452617

$10.39

BOOT

0452616

$13.59
