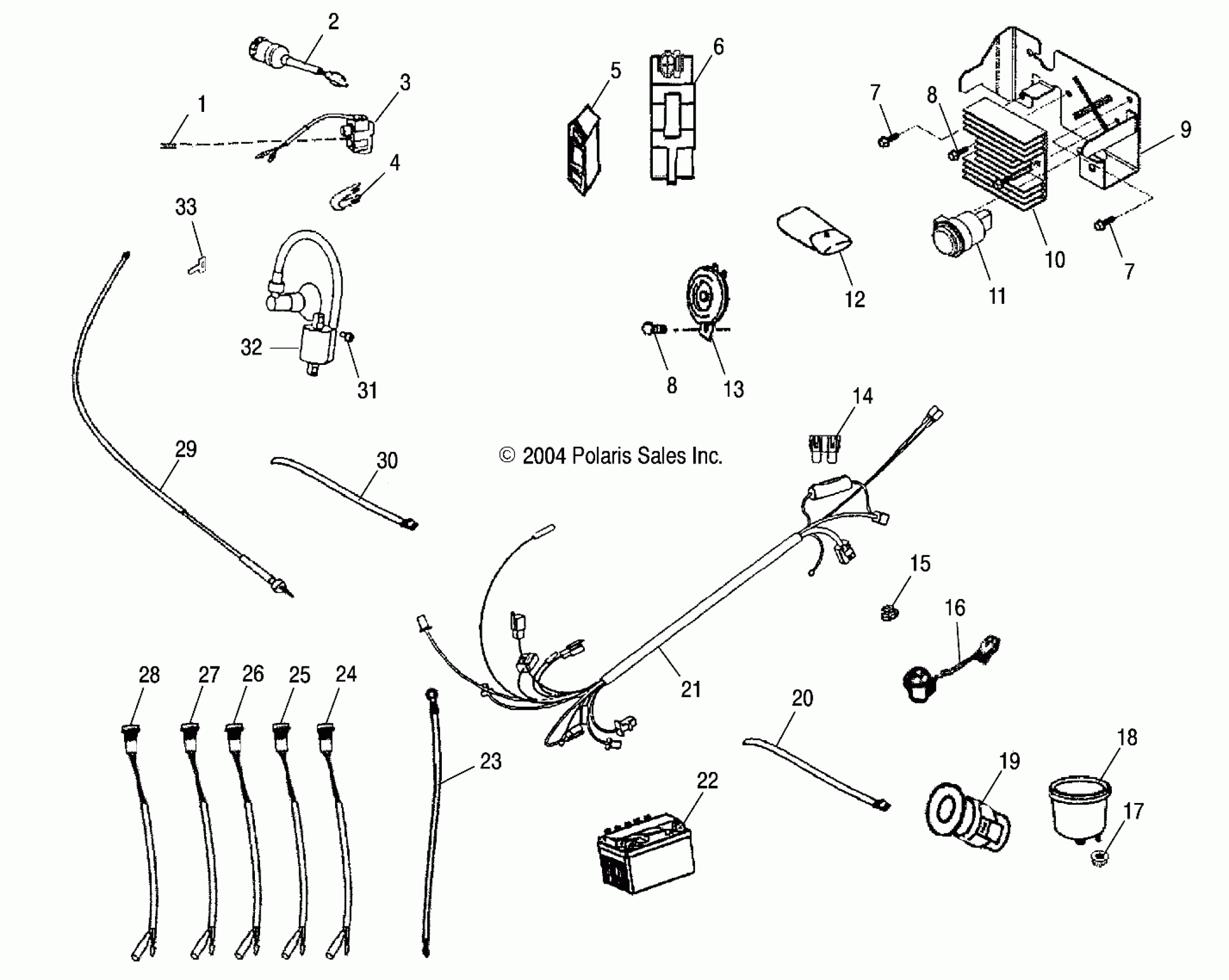

Polaris PHOENIX 200 QUADRICYCLE - A05PB20EA ELECTRICAL PARTS - A05PB20EA/EB/EC/ED (4999709970C07) Diagram

#

Description
Price

-

Asm., Switch, Main [Incl. 2,3,4]

0452994

$110.49

1

Bolt, Pan Phillips

0450667

$5.59

2

SWITCH, MAIN

-------

Unavailable

3

LOCK, STEERING

-------

Unavailable

4

CLIP, MAIN SWITCH

-------

Unavailable

5

Pad, Rubber

0452759

$6.19

6

Asm., CDI Unit [Incl. 5]

0453027

Unavailable

7

Bolt, Hex, Washer Face

0452917

$3.99

7

Bolt, Hex, Washer Face

0452917

$3.99

8

Bolt

0450701

$1.49

8

Bolt

0450701

$1.49

9

Bracket, Electrical

0452837

$20.63

10

Rectifier/Regulator

0453025

Unavailable

11

Flasher

0452918

Unavailable

12

Pouch, Tool

0452762

$58.48

13

Horn

0452842

$12.65

14

FUSE, MAIN HARNESS

0452744

$3.19

15

Nut, Flange, Hex

0450150

$1.49

16

Asm., Starter Relay

0452761

$83.99

17

Nut, Flange

0450447

$4.79

18

Asm., Speedometer

0452838

$115.99

19

Signal, Turn

0452916

Unavailable

20

STRAP

0450721

$3.19

21

Asm., Harness, Main Wire

0452836

$331.99

22

Battery

0452746

Unavailable

23

ASM., BATTERY CABLE

0452767

$47.99

24

Indicator, Reverse

0454821

Unavailable

25

Indicator, Neutral

0452765

Unavailable

26

Indicator, High Beam

0452839

$7.38

27

Indicator, Signal

0452840

$7.38

28

Indicator, Hazard

0452915

$7.38

29

Cable, Speedometer

0452841

Unavailable

30

Strap

0450742

$2.39

31

BOLT

0452763

$3.19

32

ASM., IGNITION COIL

0452309

$103.99

33

Key, Blank, RH Groove

0453013

$28.32

33

Key, Blank, LH Groove

0453371

Unavailable
