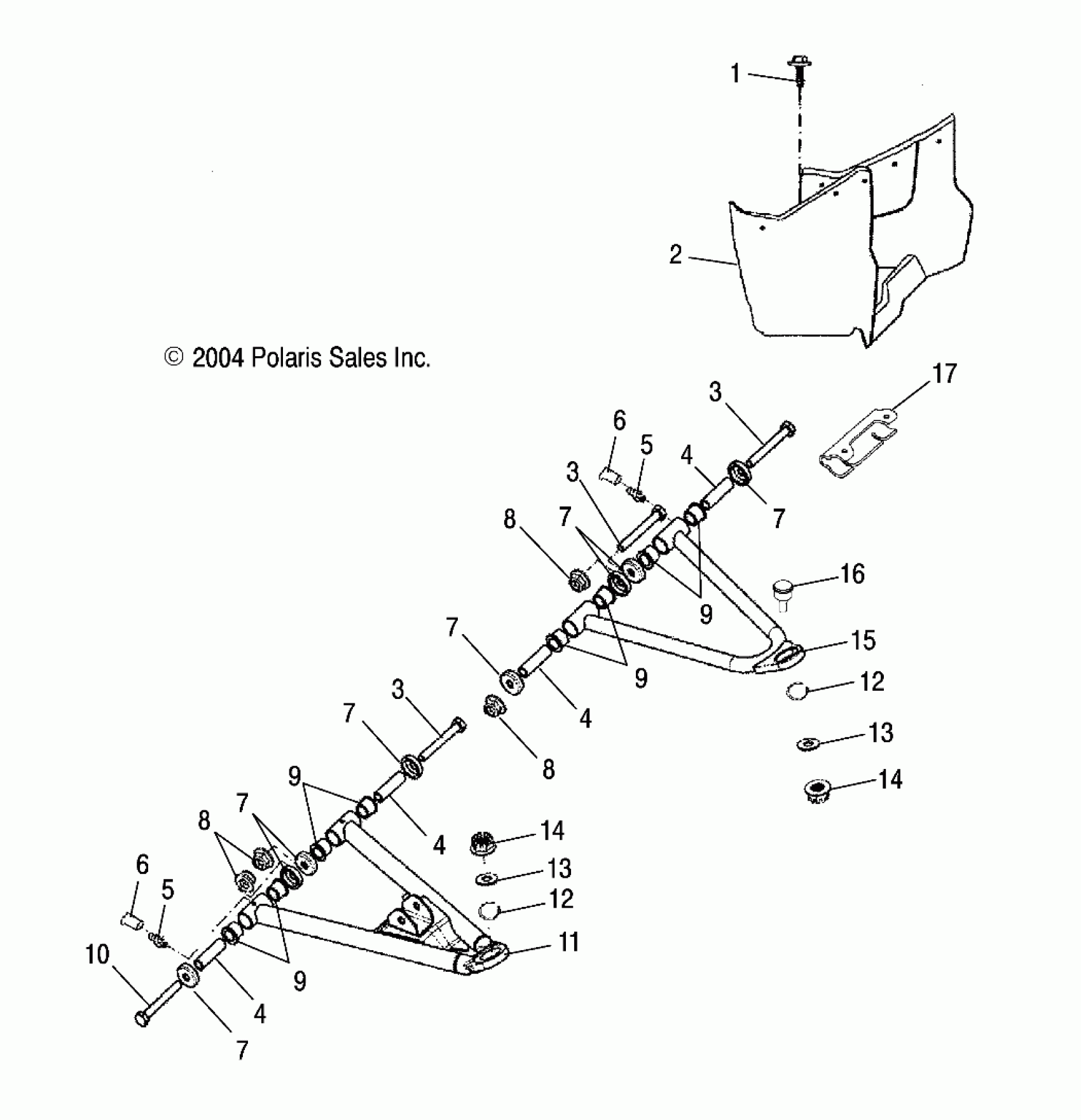

Polaris PHOENIX 200 QUADRICYCLE - A05PB20EA CONTROL ARM and FOOTREST - A05PB20EA/EB/EC/ED (4999709970B07) Diagram

#

Description
Price

1

BOLT, HEX

0452215

$3.99

2

Footrest, LH

0452628

Unavailable

2

Footrest, RH

0452627

$128.99

3

Bolt

0452626

$4.79

3

Bolt

0452626

$4.79

3

Bolt

0452626

$4.79

4

Spacer

0452625

$8.79

4

Spacer

0452625

$8.79

4

Spacer

0452625

$8.79

4

Spacer

0452625

$8.79

5

Valve, Grease

0450320

$5.59

5

Valve, Grease

0450320

$5.59

6

Cap, Rubber

0450321

$3.19

6

Cap, Rubber

0450321

$3.19

7

Cap, Rubber

0451762

$8.79

7

Cap, Rubber

0451762

$8.79

7

Cap, Rubber

0451762

$8.79

7

Cap, Rubber

0451762

$8.79

7

Cap, Rubber

0451762

$8.79

7

Cap, Rubber

0451762

$8.79

8

Nut

0450249

$3.99

8

Nut

0450249

$3.99

8

Nut

0450249

$3.99

9

Bushing

0451763

Unavailable

9

Bushing

0451763

Unavailable

9

Bushing

0451763

Unavailable

9

Bushing

0451763

Unavailable

10

Bolt

0451764

$10.39

11

A-Arm, Lower, LH

0452622

Unavailable

11

A-Arm, Lower, RH

0452621

Unavailable

12

Ring, Snap

0452630

Unavailable

12

Ring, Snap

0452630

Unavailable

13

WASHER

0450279

$3.19

13

WASHER

0450279

$3.19

14

NUT

0450502

$9.59

14

NUT

0450502

$9.59

15

A-Arm, Upper, LH

0452624

Unavailable

15

A-Arm, Upper, RH

0452623

$150.06

16

Joint, Ball

7081190

$48.40

17

Retainer, Brake Line, Front

0452997

Unavailable
