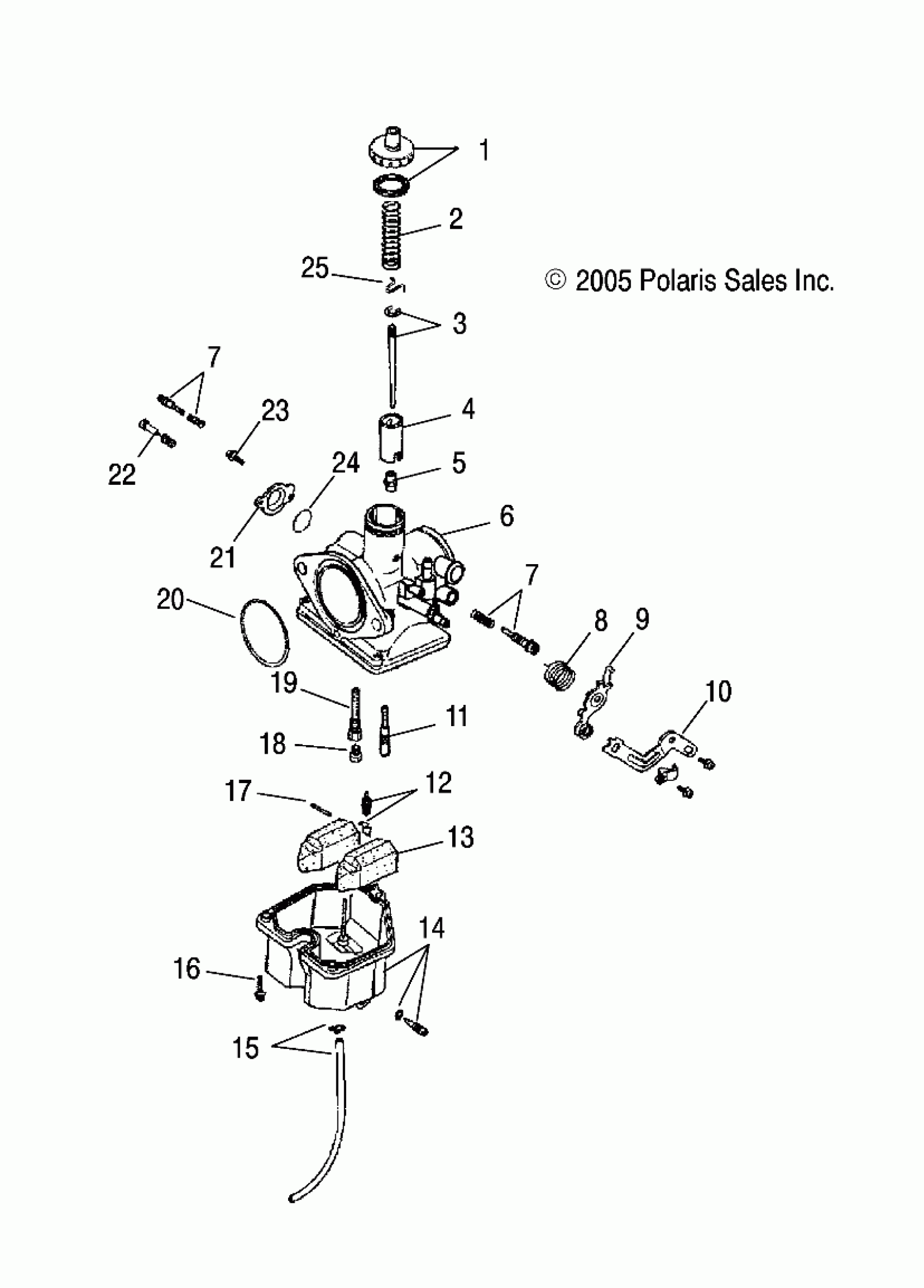

Polaris PHOENIX 200 QUADRICYCLE - A05PB20EA CARBURETOR - A05PB20EA/EB/EC/ED (4999202449920244A14) Diagram

#

Description
Price

1

ASM., CAP

0452544

$39.99

2

SPRING

0452548

Unavailable

3

ASM., JET NEEDLE

0452551

$27.99

4

THROTTLE, VALVE

0452554

$87.99

5

NEEDLE, JET

0452539

$10.39

6

Asm., Carburetor

0452852

Unavailable

7

Screw

0452537

Unavailable

7

Screw

0452537

Unavailable

8

SPRING

0452543

$6.39

9

CHOKE, LEVER

0452538

$11.43

10

SUPPORT, CABLE

0453080

$31.99

11

Jet, Slow

0452853

$9.51

12

VALVE, FLOAT

0452533

$27.99

13

FLOAT

0452546

$35.99

14

Asm., Float Body

0452535

$63.99

15

ASM., DRAIN TUBE

0452552

$31.99

16

Screw

0452540

$3.19

17

PIN, FLOAT

0452534

$3.19

18

JET, MAIN, CARB, 100

0452854

$13.59

19

VALVE, NEEDLE

0452545

$27.99

20

O-RING

0452536

$1.59

21

COVER, DIAPHRAGM

0452547

$3.99

22

Screw

0452549

$5.59

23

SCREW

0452541

$3.19

24

O-RING

0452550

$1.59

25

CLIP, NEEDLE [USE POSITION #4]

0452542

$3.99
