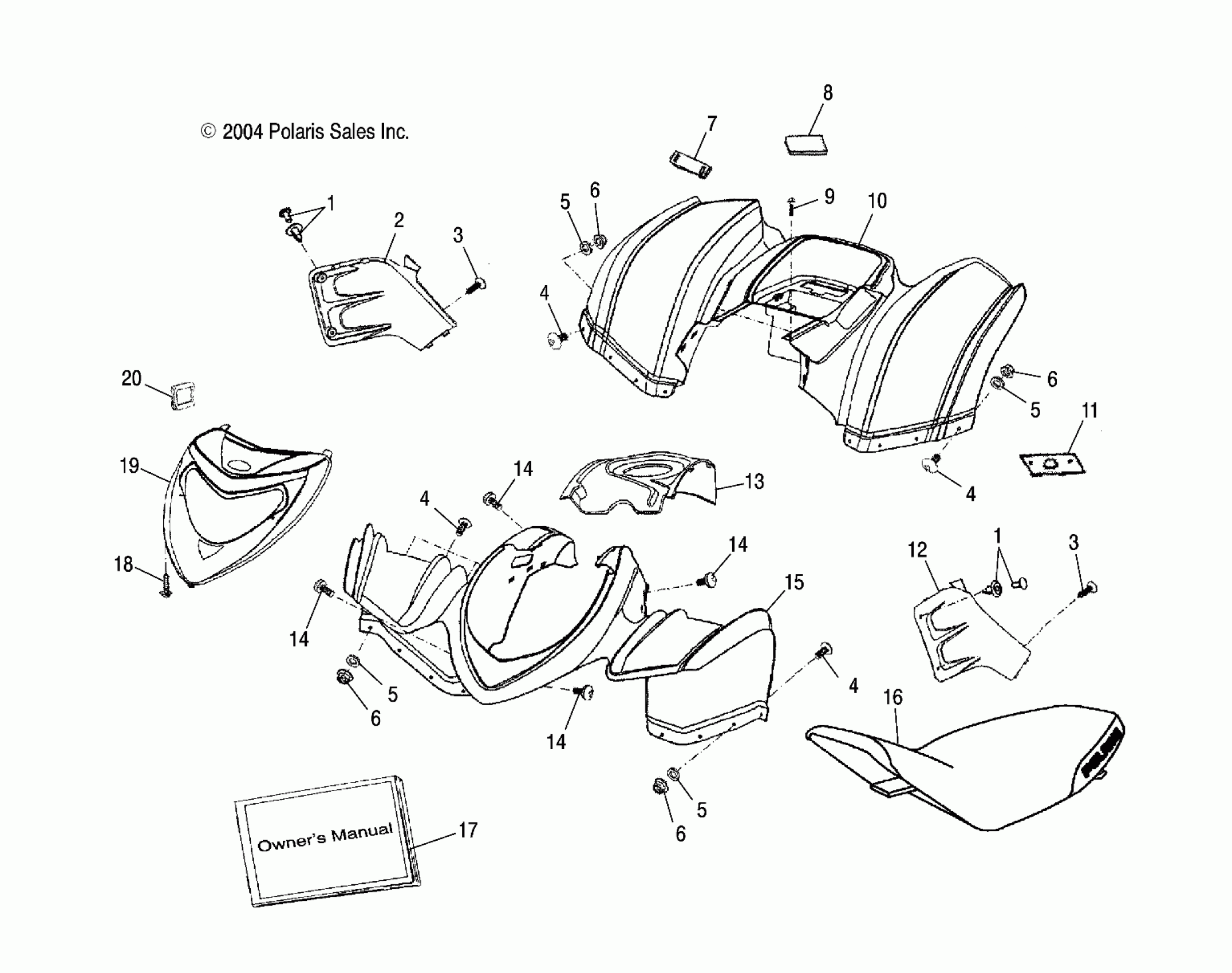

Polaris PHOENIX 200 QUADRICYCLE - A05PB20EA CAB/SEAT - A05PB20EA/EB/EC/ED (4999709970B09) Diagram

#

Description
Price

1

RIVET, PLASTIC

0451076

$1.49

1

RIVET, PLASTIC

0451076

$1.49

2

PANEL, SIDE, RH, BLACK

0452653-070

$147.99

3

SCREW

0451703

$3.99

3

SCREW

0451703

$3.99

4

BOLT

0450622

$2.39

4

BOLT

0450622

$2.39

4

BOLT

0450622

$2.39

4

BOLT

0450622

$2.39

5

Washer, Plain

0450710

$1.49

5

Washer, Plain

0450710

$1.49

5

Washer, Plain

0450710

$1.49

5

Washer, Plain

0450710

$1.49

6

NUT

0450741

$3.19

6

NUT

0450741

$3.19

6

NUT

0450741

$3.19

6

NUT

0450741

$3.19

7

STRAP, BATTERY, RUBBER

0452660

$8.79

8

Rubber, Battery

0450346

$2.39

9

BOLT

0452215

$3.99

10

Cab, Rear, Indy Red

0452866-293

$247.19

10

Cab, Rear, Sonic Blue

0452866-341

$239.19

11

Pad, Protector

0450345

$39.99

12

PANEL, SIDE, LH, BLACK

0452651-070

$147.99

13

Cover, Fuel Tank, Black

0452655-070

$109.27

14

BOLT

0450824

$2.39

14

BOLT

0450824

$2.39

14

BOLT

0450824

$2.39

14

BOLT

0450824

$2.39

15

Cab, Front, Indy Red

0452865-293

Unavailable

15

Cab, Front, Sonic Blue

0452865-341

Unavailable

16

Seat

0452638

Unavailable

17

Manual, Owners, '05 Quad 200

9919969

$25.99

18

SCREW

0450040

$3.19

19

Cover, Headlight, Black

0452650-070

Unavailable

20

Boot, Shift, Rubber

0452662

$23.99
